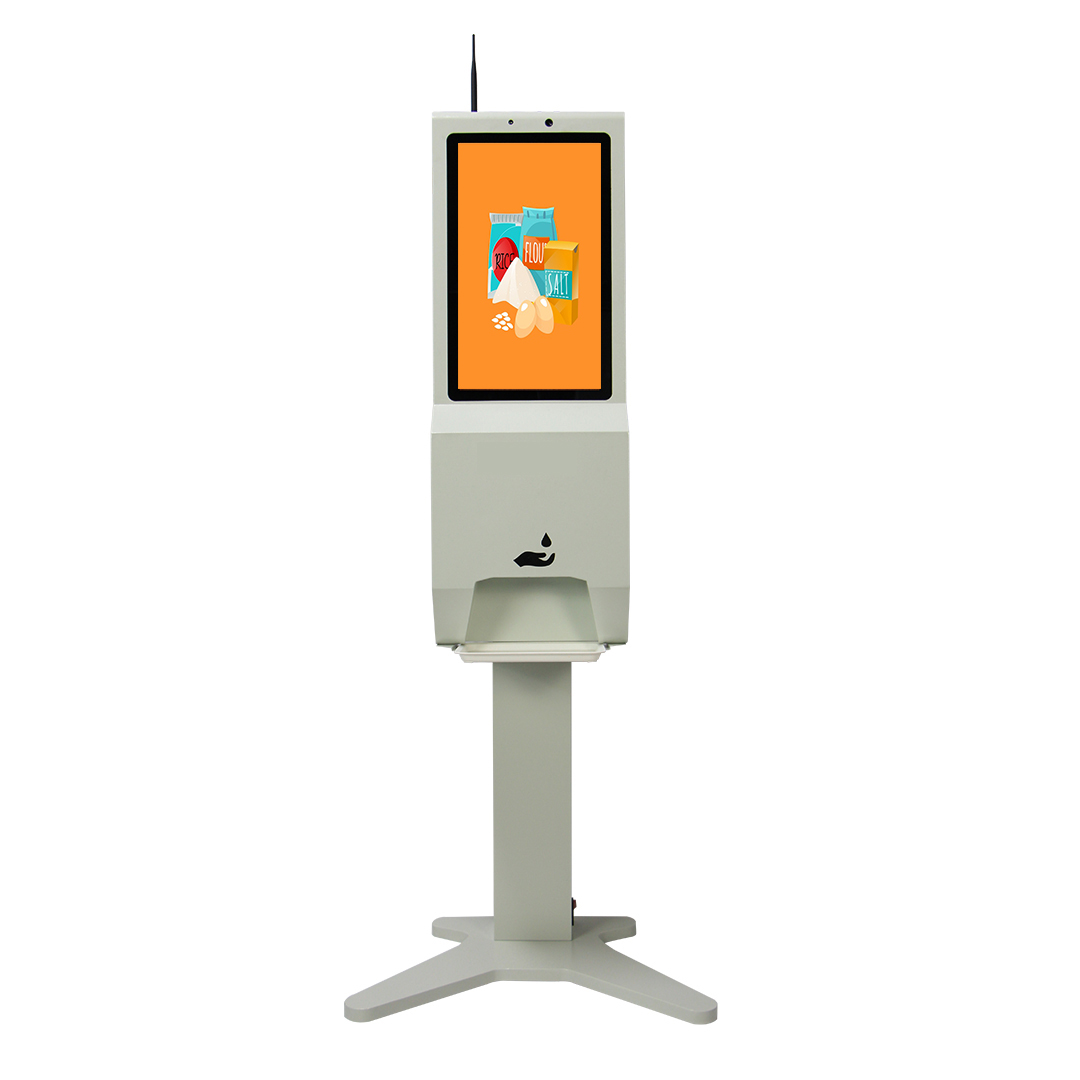

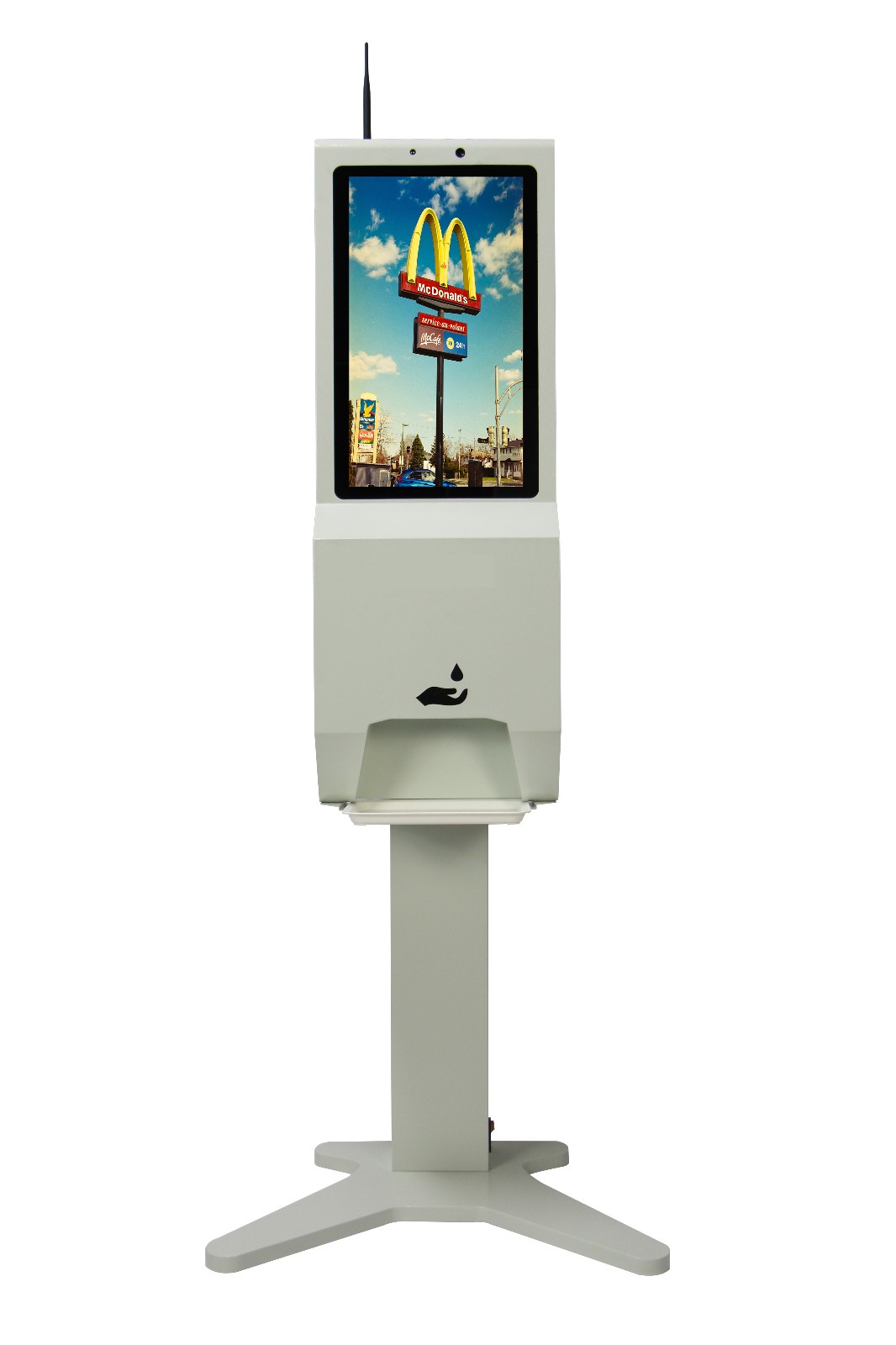

21.5-inch Digital Signage with Face Recognition and Temperature Measurement
This 21.5-inch digital signage displays advertising content in 4K HD. It integrates face recognition and temperature measurement for enhanced functionality.
Technical Specifications
Overview
Smart Digital Signage & Health Station
This 21.5-inch all-in-one digital signage solution combines high-definition advertising capabilities with essential health and safety features. Equipped with precise temperature measurement sensors and facial recognition technology, it is ideal for public spaces like retail stores, hotels, and office buildings. The integrated design includes a sanitization dispenser, ensuring a comprehensive approach to modern facility management and customer engagement.
Hardware
System Specifications
| Component | Specification |
|---|---|
| Processor | RK3288 Quad-core 1.8GHz |
| RAM | 2GB |
| Internal Storage | 8GB |
| Expandable Storage | 16GB / 32GB / 64GB / 128GB |
Display
Screen Performance
21.5 inch
Screen Size
350 cd/m2
Brightness
6 ms
Response Time
Display Details
- Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Viewing Angle: Full IPS
Health & Safety
Temperature Measurement
- Measurement Distance: 30-50cm
- Max Distance: 166cm
- Temperature Range: 23-48°C
- Ambient Operating Range: 20-35°C
Disinfection Module
- Capacity: 1000ml
- Dispensing Methods: Spray, Foam, Soap Drops
- Sanitization: Ultraviolet Disinfection
Connectivity & Software
Deployment Options
- PC-side management software
- Mobile management software
- WeChat Applet integration
- LAN/Cloud deployment support
- Connectivity Ports
- USB 3.0USB 2.0RJ45WiFi
Physical
Recommended Use Cases
SupermarketsHotelsHospitalsResidential BuildingsCommercial Buildings
- Construction
- Full sheet metal housing with tempered glass and nano anti-fouling/waterproof coating
- Power Supply
- 18 W
