Technical Specifications
Overview
High-Performance Coolant Circulation

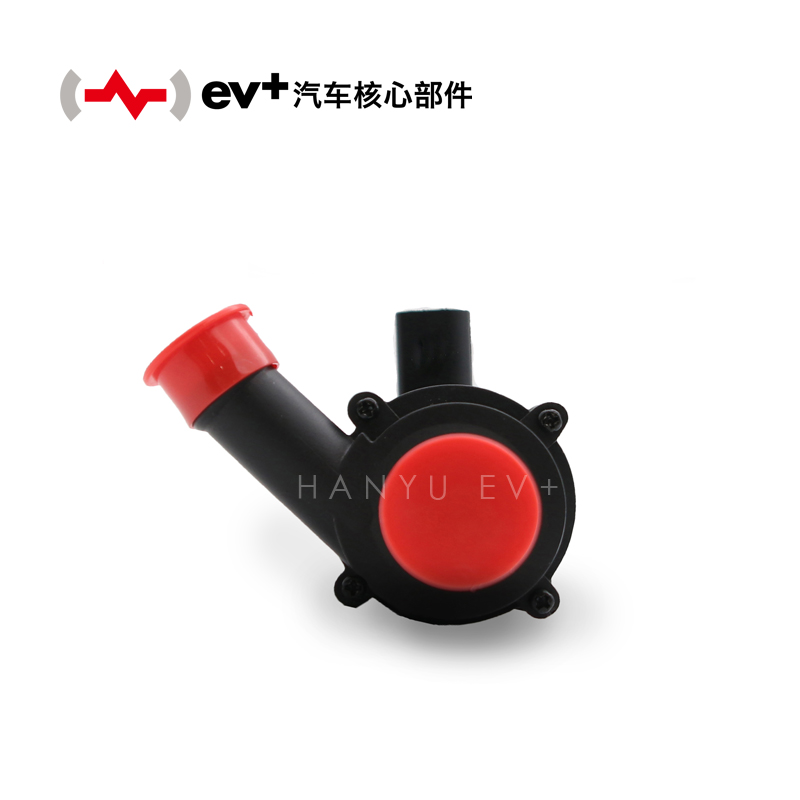

This 20W brushless DC coolant circulation pump is engineered for reliability and high efficiency in demanding cooling systems. Featuring a fully enclosed centrifugal impeller and advanced sine wave control algorithms, it delivers stable performance with minimal noise. Built with flame-retardant, corrosion-resistant materials and an IP67 protection rating, this pump is designed to withstand harsh environments while ensuring safe, water-electricity separated operation.
Technical Specifications
- Rated Voltage
- 12 V
- Rated Power
- 20 W
- Maximum Flow
- 22 L/min
- Inlet/Outlet Diameter
- 20 mm
Performance Metrics
- Key Features
- Brushless DC MotorSine Wave ControlWater-Electricity SeparationFault DetectionSpeed Regulation
Environmental Ratings
Ingress Protection
IP67
- Ambient Temperature
- -40°C to 120°C
- Coolant Temperature
- -40°C to 100°C
Construction
Build Quality
- Flame-retardant engineering plastics
- High-temperature resistant components
- Corrosion-resistant housing
- Rare-earth magnetic steel
- Low iron loss silicon steel sheet
