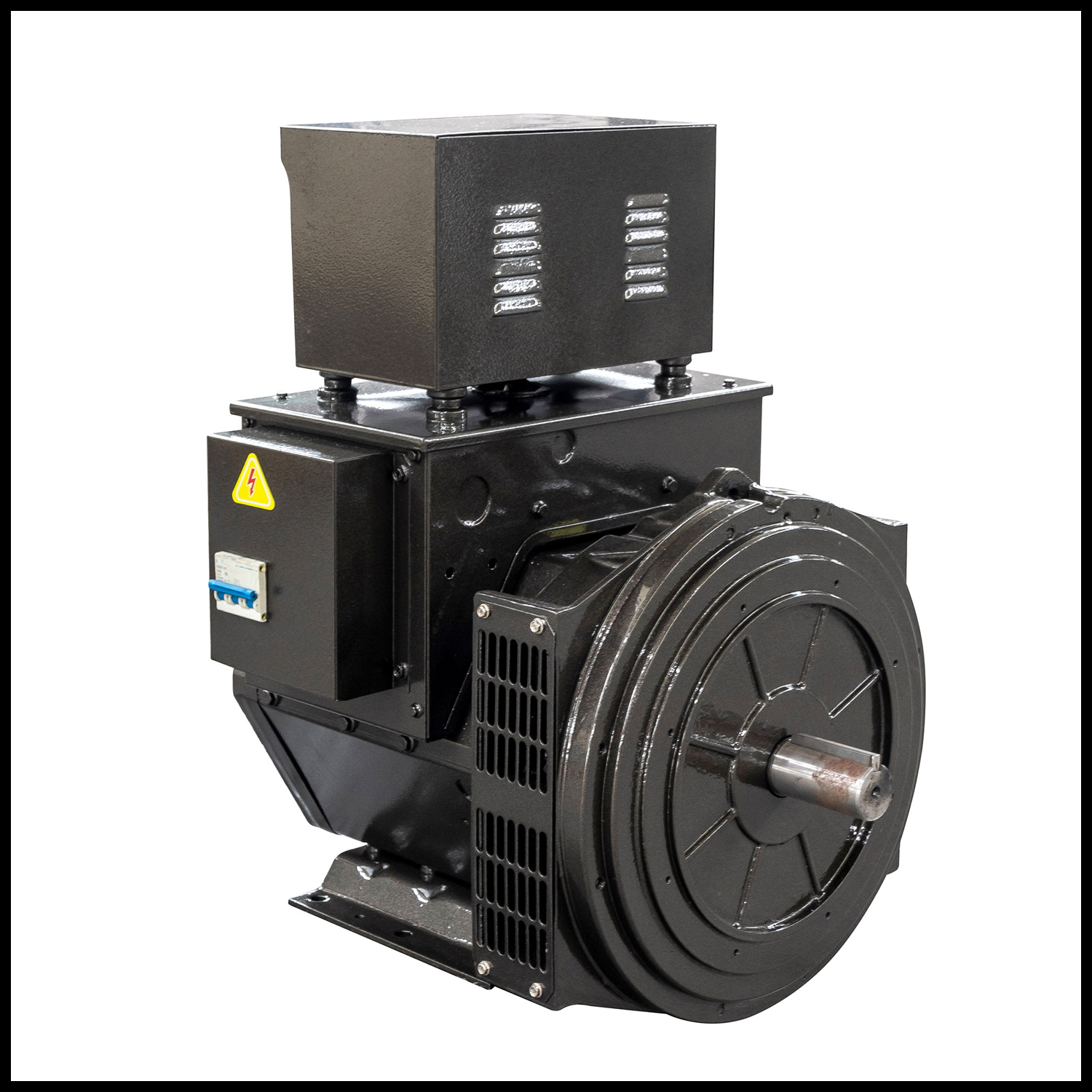

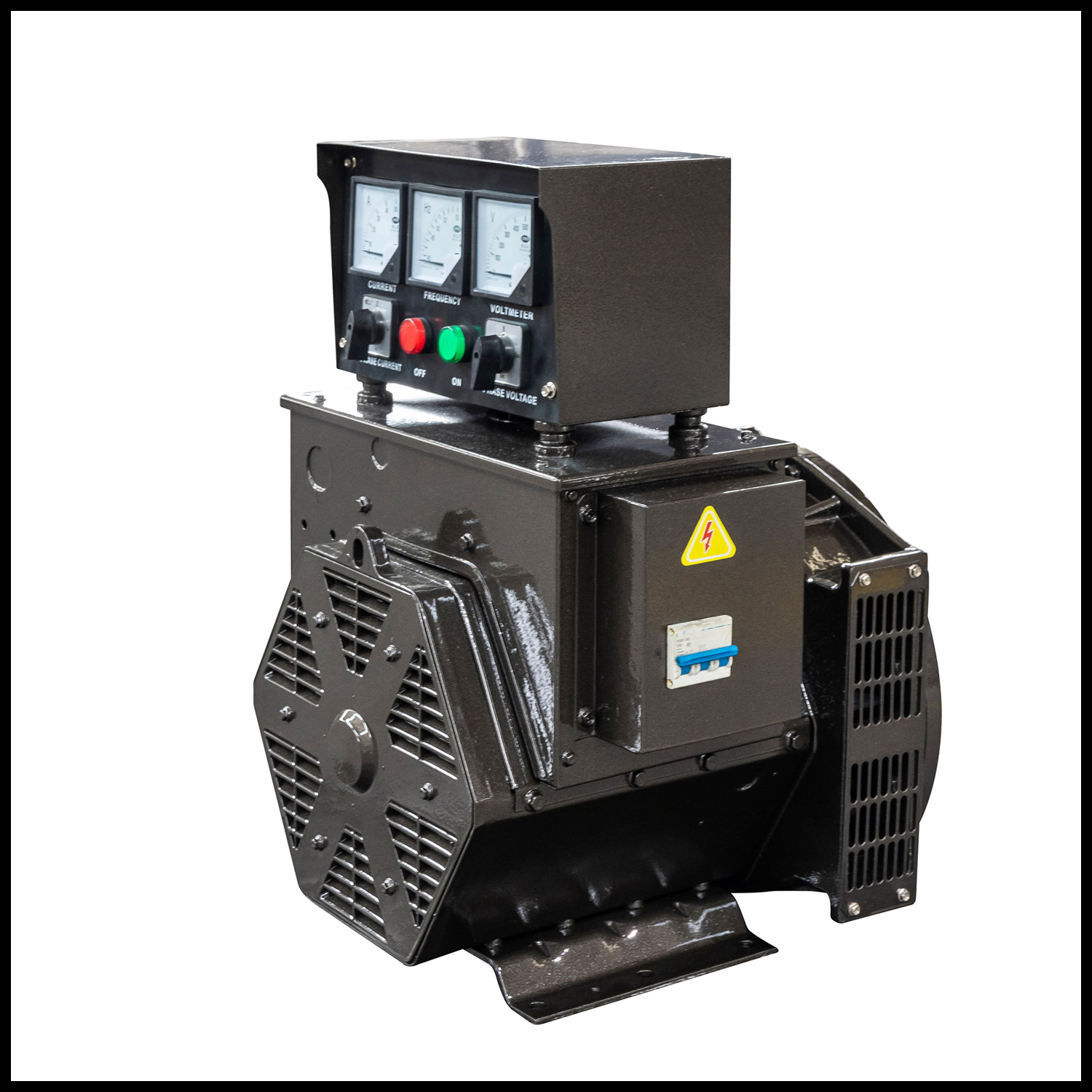

20KVA/16KW Brushless Alternator
This brushless alternator is designed for use in diesel generator sets, providing a reliable and efficient power generation solution. With a rated output of 20KVA/16KW, it is suitable for a variety of applications.
Technical Specifications
Overview
High-Performance Brushless Alternator
The BYG Series brushless AC synchronous alternator is engineered for reliability and efficient power generation in both industrial and marine environments. Featuring a robust 20KVA/16KW output, it utilizes a brushless design to minimize maintenance while ensuring consistent, stable performance. The unit is built to conform to leading international standards, incorporating advanced winding technology and high-quality AVR systems for optimal voltage regulation.
Performance Metrics
Rated Output
20 KVA
Rated Power
16 KW
Rated Power
Overload Capacity
- 150% of rated current for 2 minutes
- 110% of rated current for 1 hour every 6 hours
Electrical Specifications
Insulation Class
Class H
- Unbalanced Load Tolerance
- 25 %
- Key Electrical Features
- Brushless DesignAVR Equipped2/3 Pitch WindingsPermanent Magnetic Excitation
Physical and Environmental
Enclosure Protection
IP22IP23
Interference Compliance
| Standard Type | Limit |
|---|---|
| THF (BS4999 Part 40) | < 2% |
| TIF (ASA C50.12) | < 50 |
- Rotor Balancing Standard
- BS6861: Part 1 Grade 2.5
