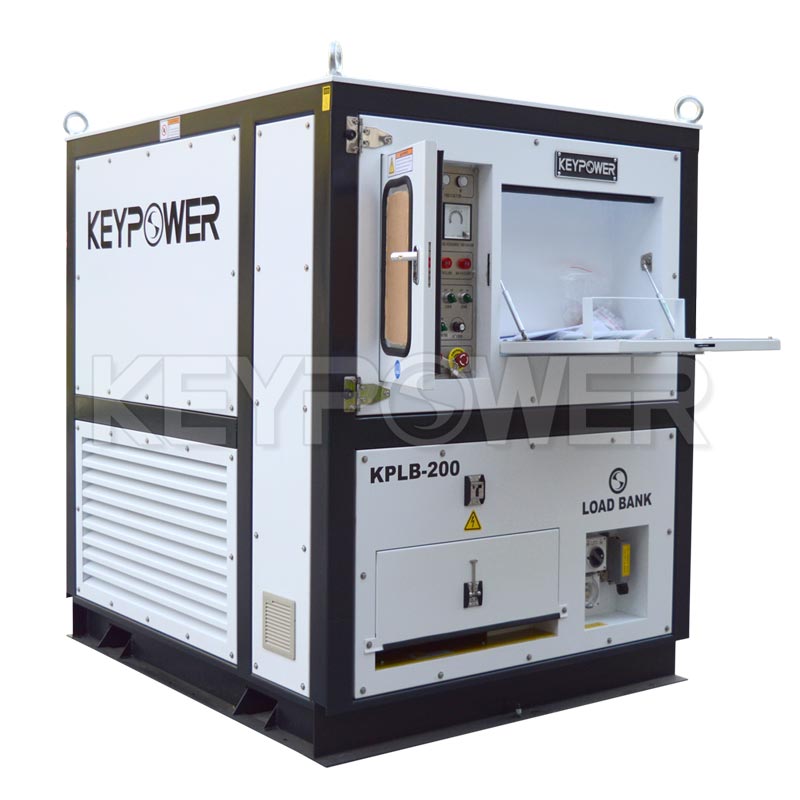

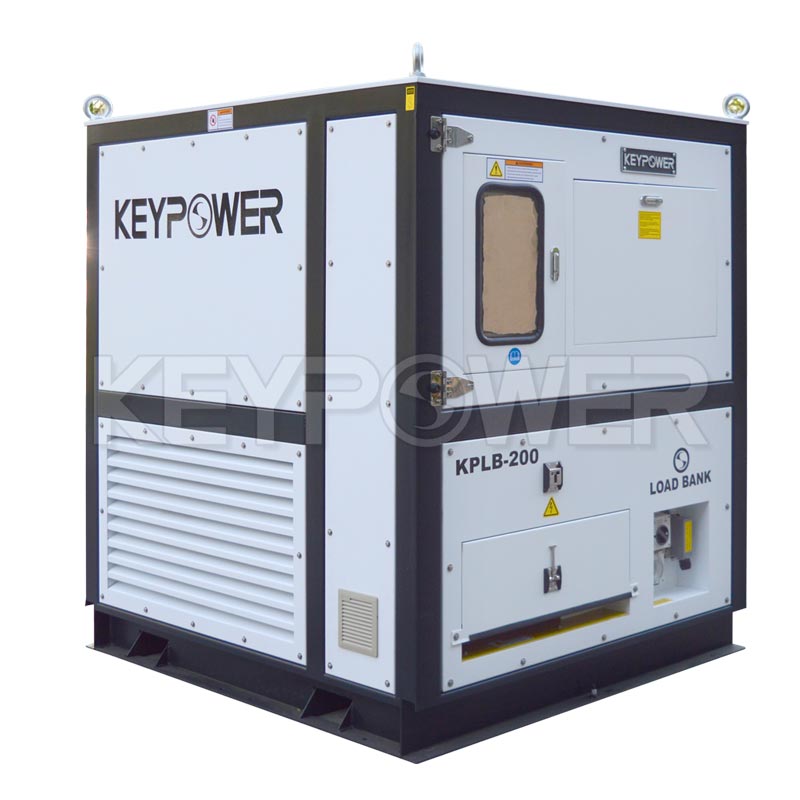

200kW Resistive Load Bank for Power System Testing
This 200kW resistive load bank is designed for testing power generation systems by simulating real-world electrical loads. It allows comprehensive performance testing and validation of generators, UPS systems, and other power sources.
Technical Specifications
Overview
High-Performance Resistive Load Bank
This 200kW resistive load bank is engineered for rigorous testing of power systems, including generators, UPS units, and battery banks. It provides a stable, adjustable load to simulate real-world operating conditions, ensuring your backup power infrastructure is reliable when needed. Built with industrial-grade components and comprehensive safety protections, this unit offers precise control and accurate measurement for commissioning, maintenance, and troubleshooting.
Electrical Specifications
- Load Type
- Resistive
- Power Factor
- 1 PF
- Rated Testing Voltage
- 110-480 VAC (3P4W)
- Rated Frequency
- 50/60 Hz
Control & Measurement
- Load Step Resolution
- 10 kW
- Control Modes
- Local ManualRemote Manual (Optional)
- Parameter Measuring Accuracy
- 0.3
- Load Control Accuracy
- ± 5%
Safety & Environment
Protection Features
Overheating ProtectionFan Failure ProtectionOverload Protection
Operating Environment
- Altitude ≤ 3000m
- Ambient Temperature -10 to +50 °C
- Relative Humidity ≤ 80%
Construction
- Cooling System
- Forced air-cooled (Industrial axial fans)
- Resistive Elements
- Stainless steel sheathed with magnesium oxide
