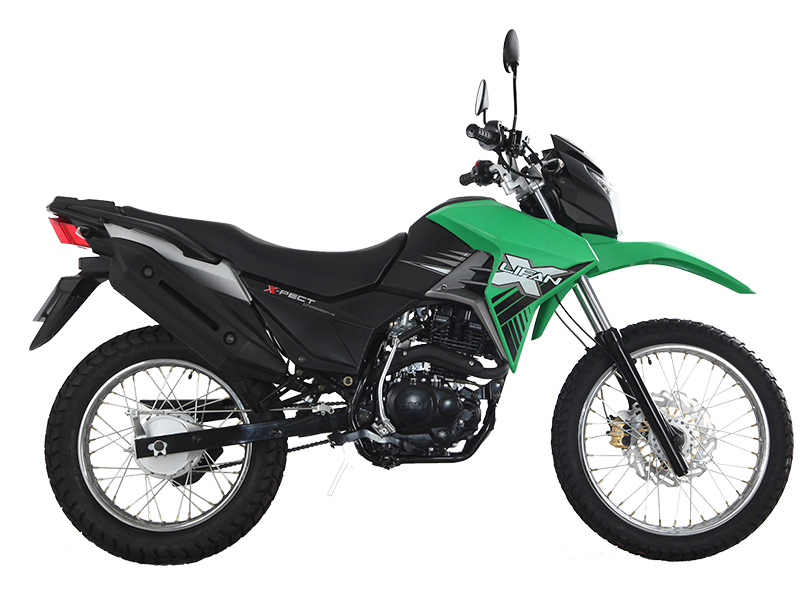

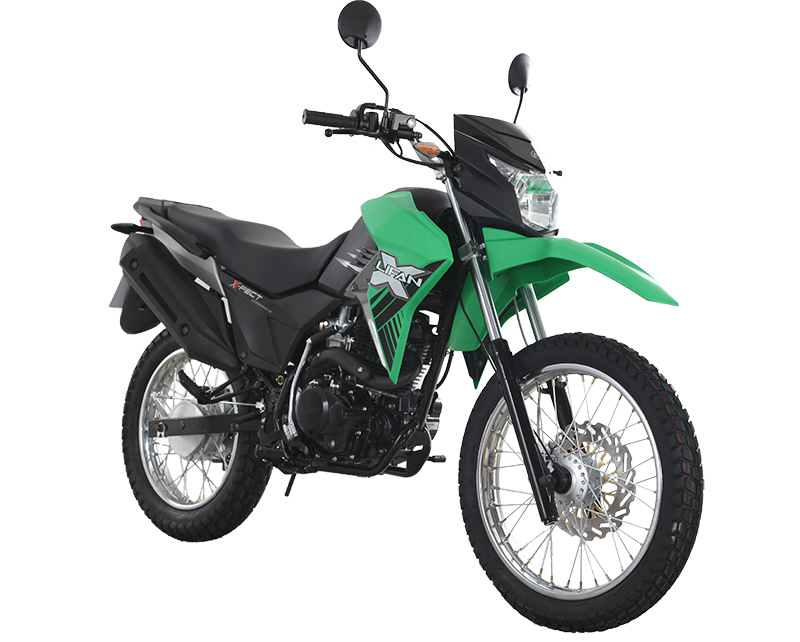

200cc Four-Stroke Dirt Bike
This dirt bike is equipped with a 200cc, four-stroke engine, providing reliable power for off-road use. It features a durable frame and responsive suspension system for enhanced stability and control on challenging terrains.
Technical Specifications
Overview
Versatile Off-Road Capability
This series of four-stroke dirt bikes is engineered for agility and performance across challenging terrains. Available in three displacement variants, these machines feature robust air-cooled engines and high ground clearance for superior off-road handling. Designed with both novice and experienced riders in mind, they combine durable construction with a reliable electric/kick-start system to ensure consistent operation in any environment.
Performance
Key Performance Metrics
12 kW
Max Power (200cc model)
13.8 N.m
Max Torque (200cc model)
100 km/h
Max Speed (200cc model)

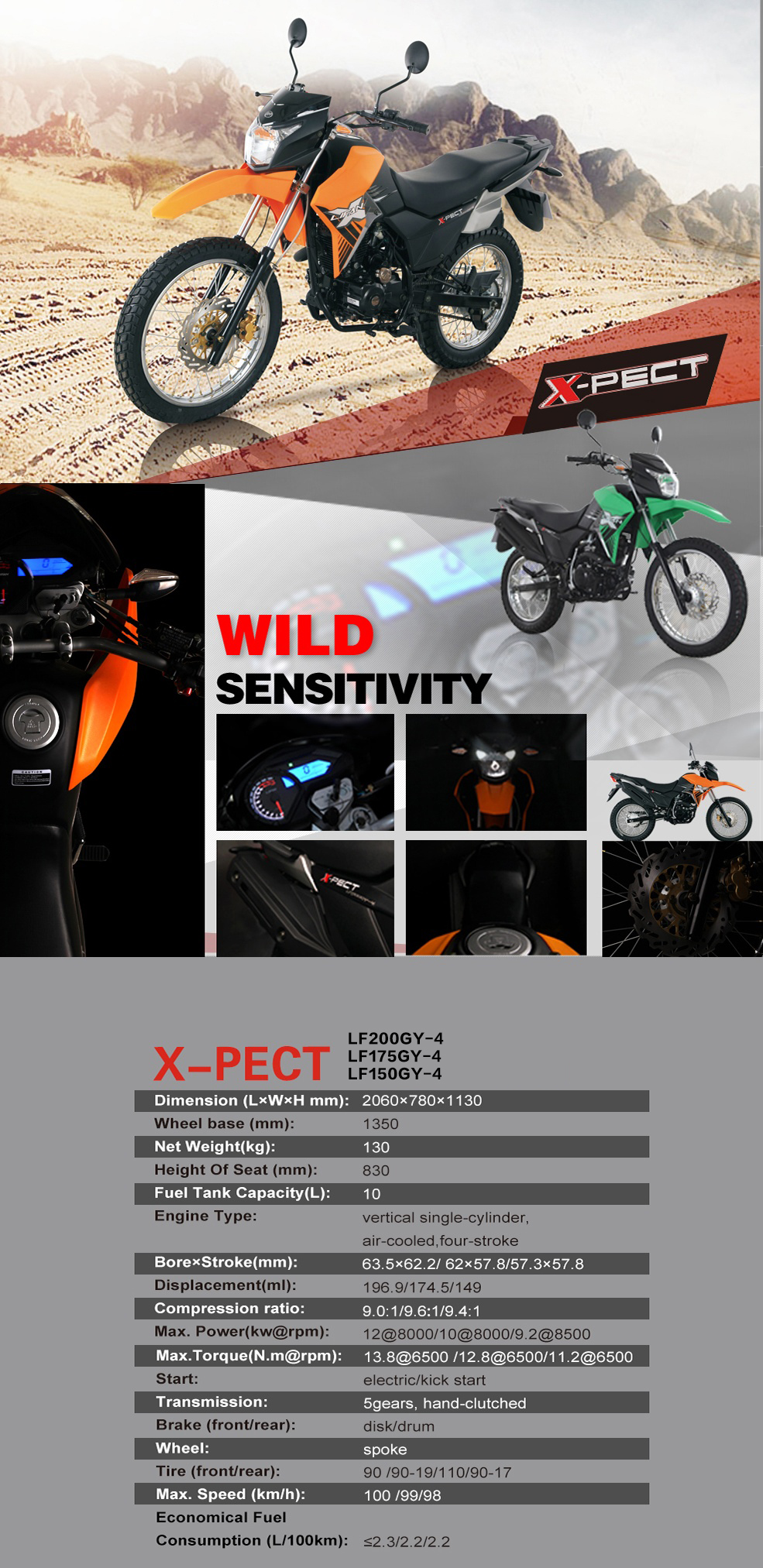

Technical Specifications
Full Specifications Table
| Feature | LF200GY-4 | LF175GY-4 | LF150GY-4 |
|---|---|---|---|
| Displacement (ml) | 196.9 | 174.5 | 149 |
| Compression Ratio | 9.0:1 | 9.6:1 | 9.4:1 |
| Max Power (kW@rpm) | 12@8000 | 10@8000 | 9.2@8500 |
| Max Torque (N.m@rpm) | 13.8@6500 | 12.8@6500 | 11.2@6500 |
| Max Speed (km/h) | 100 | 99 | 98 |
Dimensions and Chassis
Dimensions & Build
- Dimensions: 2060 x 780 x 1130 mm
- Wheelbase: 1350 mm
- Net Weight: 130 kg
- Seat Height: 830 mm
- Fuel Tank Capacity: 10 L
Hardware
- Equipment Features
- Electric StartKick Start5-Speed TransmissionHand-ClutchedFront Disc BrakeRear Drum BrakeSpoke Wheels
