2-Gang 2-Way Light Switch with Schuko Outlet
This combination unit features a 2-gang, 2-way light switch and a Schuko power outlet. It is designed for lighting control and power supply in residential, commercial, and industrial applications.
Technical Specifications
Product Overview
Versatile 2-Gang Switch & Schuko Outlet Combo

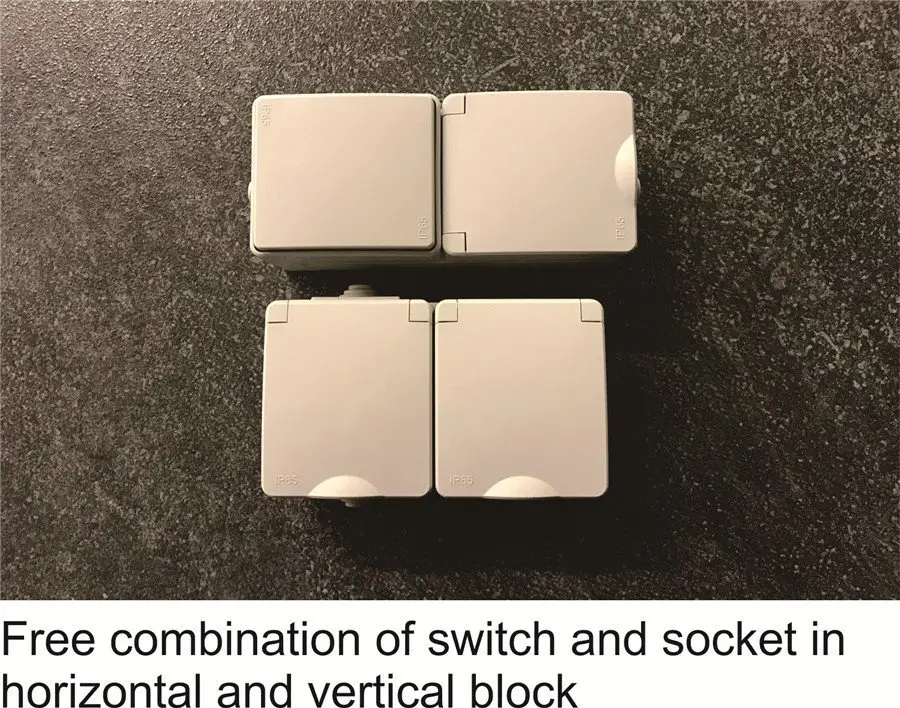

This integrated unit combines a 2-gang 2-way light switch with a single Schuko power outlet, providing a space-saving solution for residential and commercial electrical installations. Designed to European standards, it features a robust horizontal layout with an IP65 rating for superior protection against dust and water ingress. The modular design allows for flexible horizontal or vertical block configurations to suit diverse architectural requirements.
Technical Specifications
IP Rating
IP65
- Standard
- European Standard
- Certifications
- TUVCE
- Dimensions
- 128.3 x 90.4 x 54.2 mm
Material & Durability
Material Features

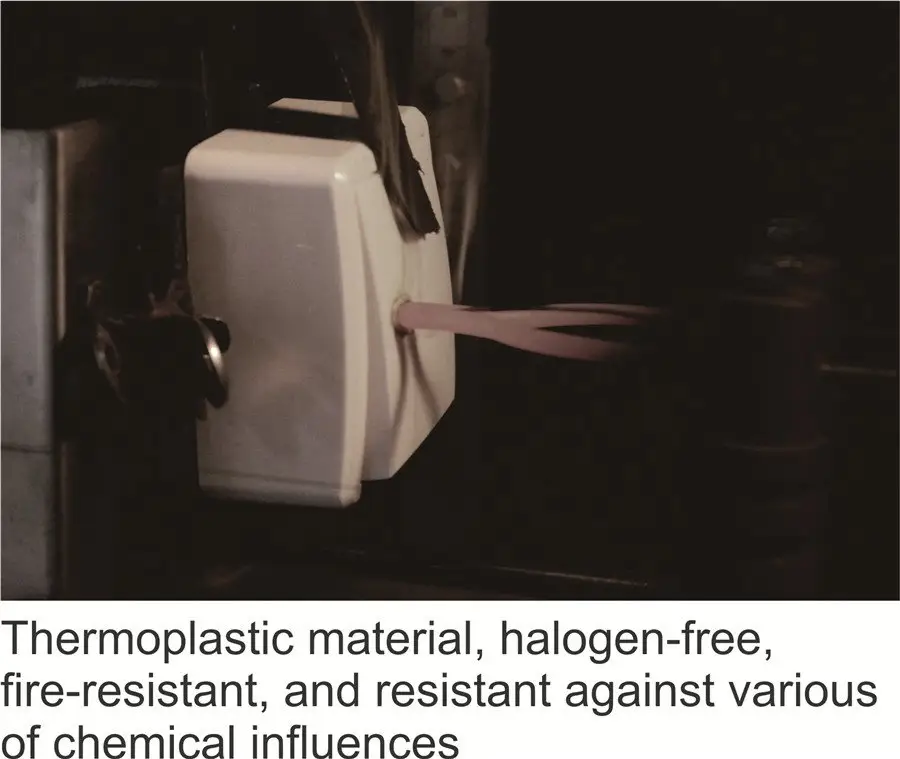

- Thermoplastic material
- Halogen-free
- Fire-resistant
- Chemical resistant
Installation & Safety
Safety Systems

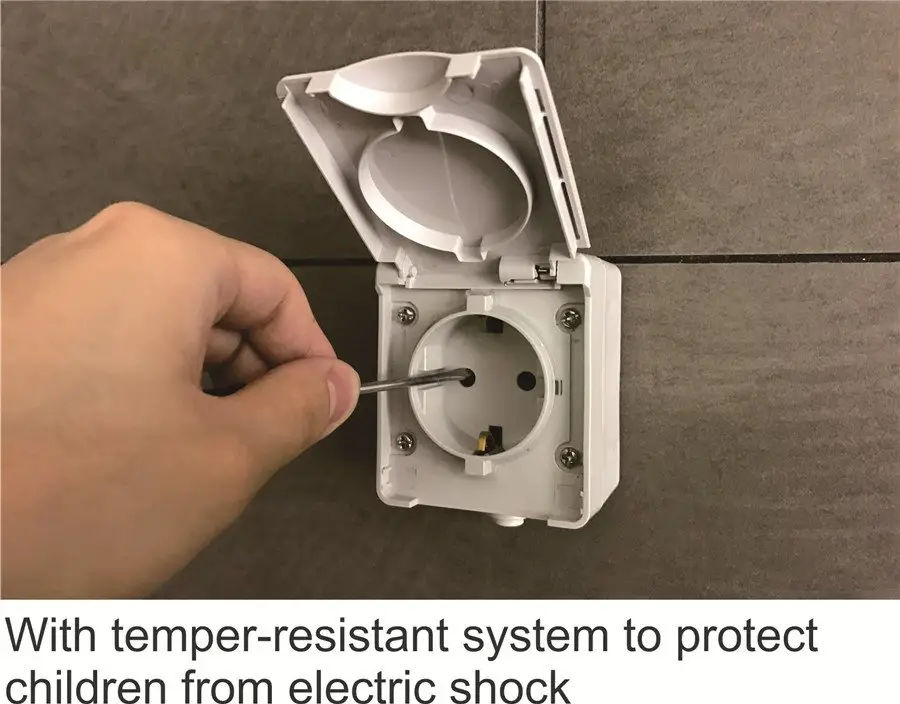

- Tamper-resistant system to protect children from electric shock
- Hinged cover for power outlet protection

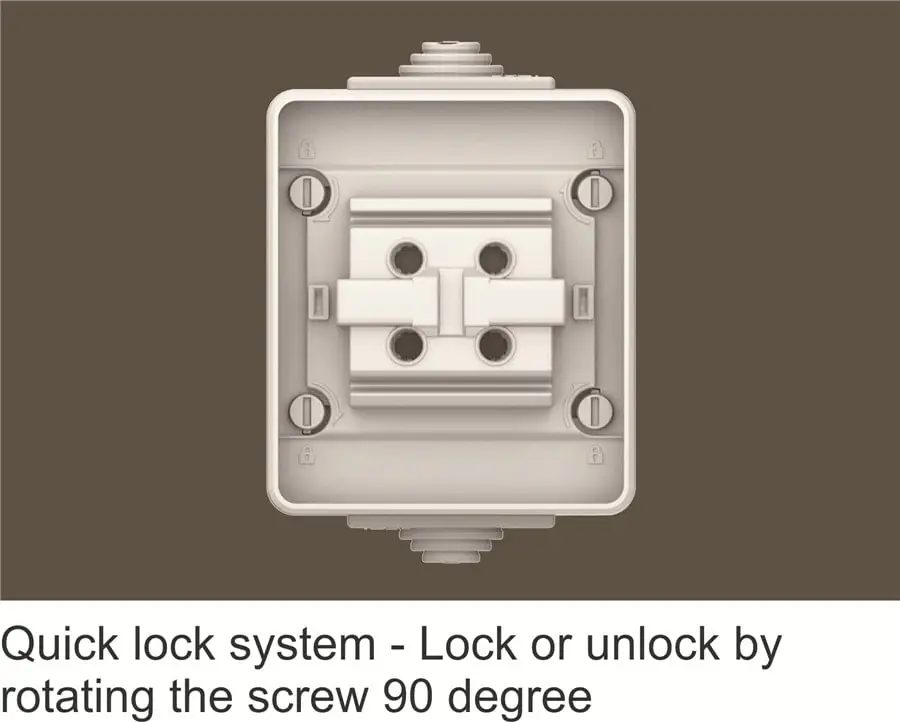

- Quick lock system (90-degree rotation)

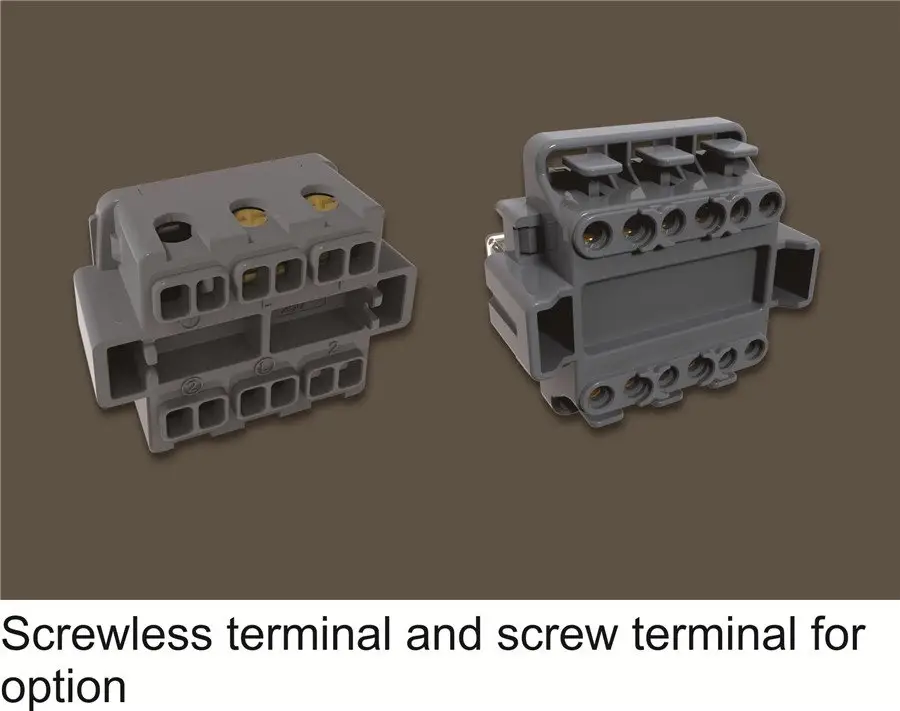

- Terminal Types
- Screwless TerminalScrew Terminal
- Assembly

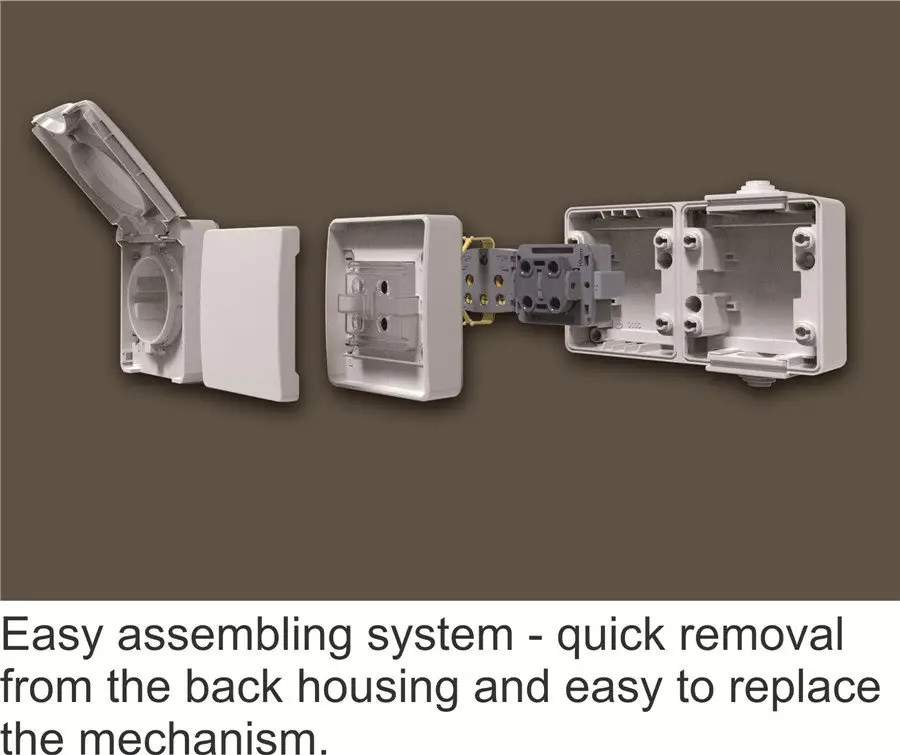

- Easy assembling system for quick removal and mechanism replacement
Commercial Terms
- Minimum Order Quantity
- 3000 PCS
- Payment Terms
- TTLC
Manufacturer Advantages
Service Capabilities
- 35-year industry experience
- OEM and ODM service support
- Strict QC system
- 24-hour response time
