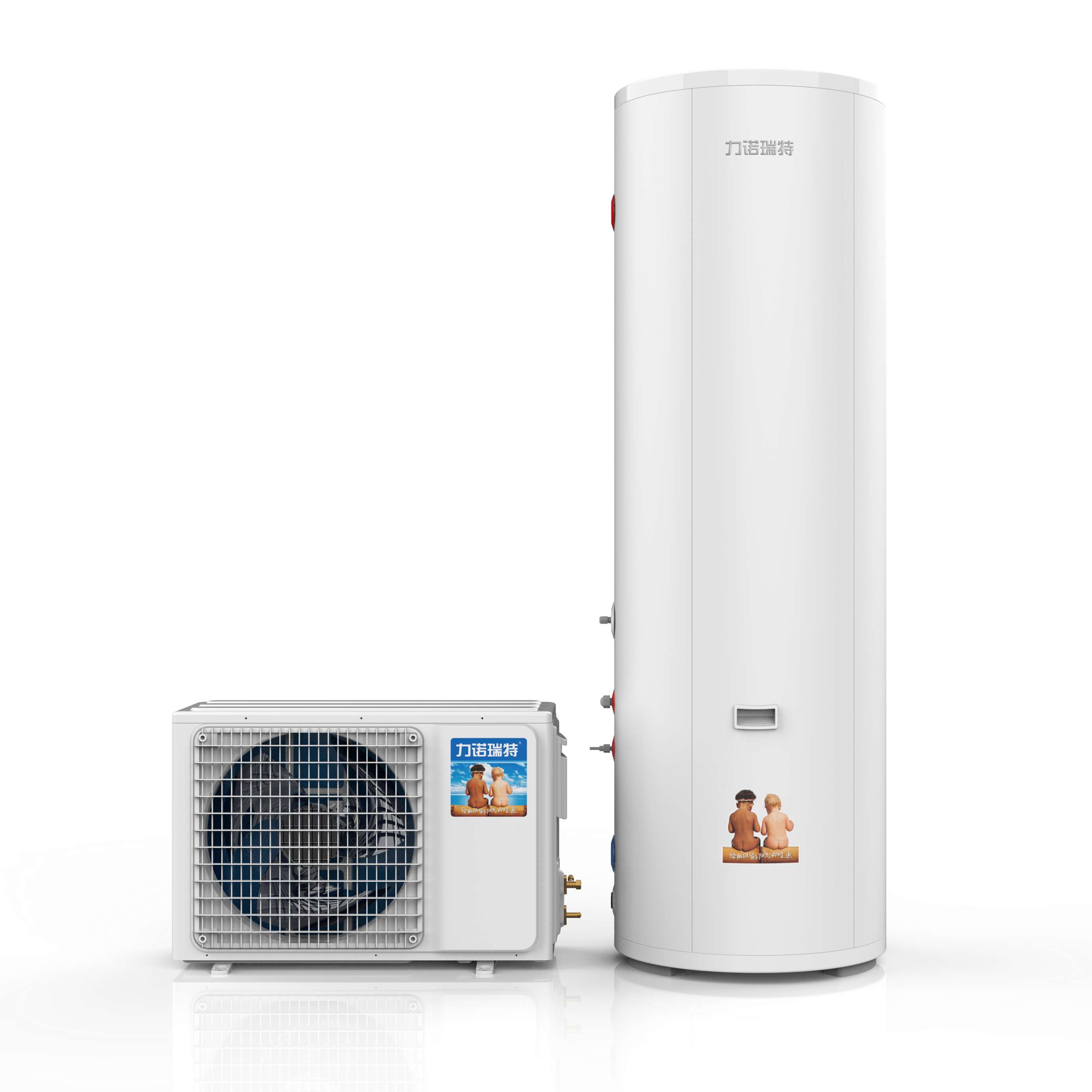

1.5P Inverter Air Source Heat Pump Water Heater with 300L Tank
This air source heat pump water heater uses a refrigerant to absorb ambient air and convert it to heat. The thermal energy is then transported into heat storage.
Technical Specifications
Overview
High-Efficiency Inverter Heat Pump System
This 1.5P inverter air source heat pump system is designed for reliable, eco-friendly hot water production throughout the year, regardless of weather conditions. Featuring a large 300L storage tank and advanced inverter technology, it optimizes energy consumption with an energy efficiency rating of up to 4.6. The system ensures safety through water-electricity separation and provides consistent, on-demand hot water for residential applications.
Key Features
- Core Features
- Inverter TechnologyIntelligent DefrostingAnti-FreezingWater/Electricity SeparationEco-friendly Refrigerant
Performance Metrics
Performance Metrics
5,000 W
Heating Capacity
4.65
COP
110 L/h
Hot Water Output
Technical Specifications
Heat Pump Unit (KF110/BP/b)
| Parameter | Value |
|---|---|
| Voltage/Frequency | 220V/50Hz |
| Input Power | 1075W / 4.89A |
| Max Input Power | 1613W / 7.33A |
| Noise Level | 48 dB(A) |
| Refrigerant | R410A (1500g) |
| Dimensions | 860 x 265 x 545 mm |
| Gross Weight | 35 kg |
Water Storage Tank (SX300/TW01)
| Parameter | Value |
|---|---|
| Volume | 300 L |
| Rated Pressure | 0.8 MPa |
| Inlet/Outlet | G 3/4" |
| Dimensions | φ580 x 1820 mm |
| Gross Weight | 96 kg |
Safety & Compliance
Safety Ratings
IPX4 WaterproofElectric Shock Proof Class I
