156.75mm Mono PERC Half-Cut Solar Cell
This high-efficiency 156.75mm monocrystalline PERC solar cell features a half-cut design. The cell is engineered with 5 busbars to improve current collection and reduce series resistance, optimizing it for photovoltaic applications.
Technical Specifications
Product Overview
High-Efficiency 156.75mm Mono PERC Solar Cell
This 156.75mm monocrystalline PERC solar cell utilizes a 5-busbar half-cut design to maximize energy harvest. Engineered for superior power output, it features enhanced light absorption and improved current collection to reduce series resistance. These cells are ideal for high-performance residential, commercial, and utility-scale solar panel manufacturing.
Technical Highlights
Performance Metrics
5 BB
Busbars
156.75 mm
Cell Dimension
- Efficiency Range
- 20.6% - 22.2%

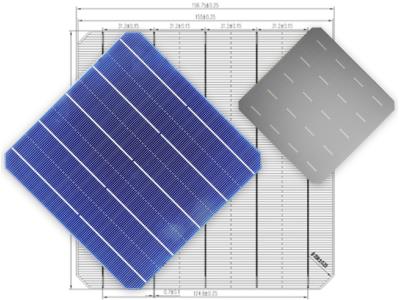

Physical Dimensions
Detailed Specifications
| Parameter | Value | Tolerance |
|---|---|---|
| Width/Length | 156.75 mm | ±0.25 mm |
| Diagonal | 210.0 mm | ±0.25 mm |
| Thickness | 0.75 mm | ±0.1 mm |
| Busbar Spacing | 21.2 mm | ±0.15 mm |
Technology & Design
Suitable Applications
- Residential Solar Arrays
- Commercial PV Systems
- Utility-Scale Solar Farms
Design Advantages
- Enhanced light absorption
- Improved current collection
- Reduced series resistance
- Superior power output
- Cell Technology
- MonocrystallinePERCHalf-Cut5-Busbar (5BB)
