Technical Specifications
Product Overview

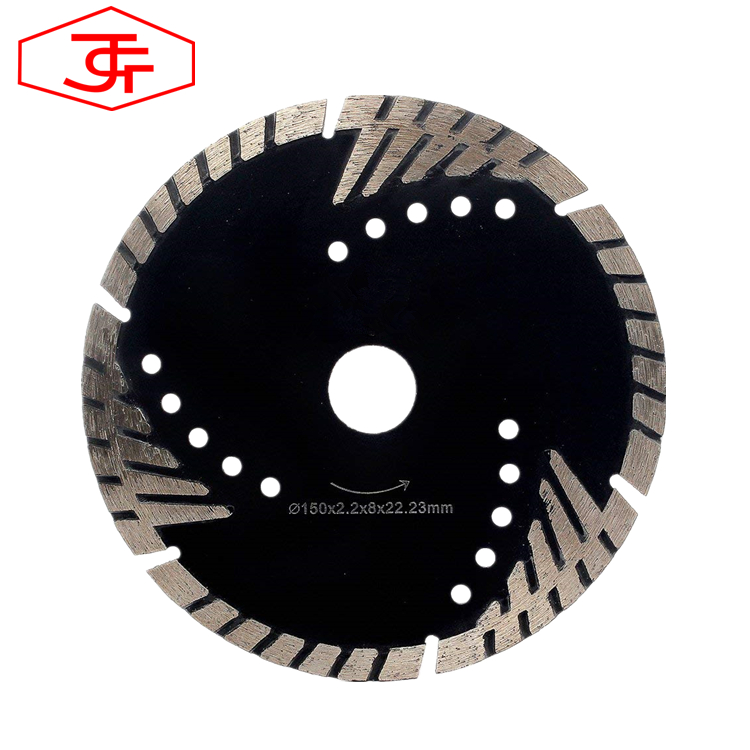

Professional Segmented Turbo Diamond Blade
This 150mm segmented turbo diamond saw blade is engineered for high-performance cutting in demanding hard materials like reinforced concrete, granite, and masonry. Featuring a cold-pressed sintered segment design, it balances aggressive cutting speed with clean, chip-free finishes. The high-alloy heat-treated steel core ensures superior durability, minimal vibration, and smooth operation during intensive use.
Technical Specifications
Key Measurements
150 mm
Diameter
1.4 mm
Body Thickness
7 mm
Segment Height
22.2 mm
Arbor Bore
- Compatibility
- Angle GrindersMarble CuttersWet CuttingDry Cutting
Material Composition
Material Specifications
| Component | Material |
|---|---|
| Blade Body | 65Mn Steel |
| Cutting Segments | Diamond & Metal Powder |
Cutting Applications
- Reinforced concrete
- Granite slabs
- Exposed aggregate concrete
- Sand-lime stone
- Brick and masonry
