150cc Naked Motorcycle with LED Lighting
This 150cc motorcycle features a liquid-cooled, single-cylinder engine and a 6-speed transmission. It is equipped with LED lighting, disc brakes, and a digital instrument panel.
Technical Specifications
Overview

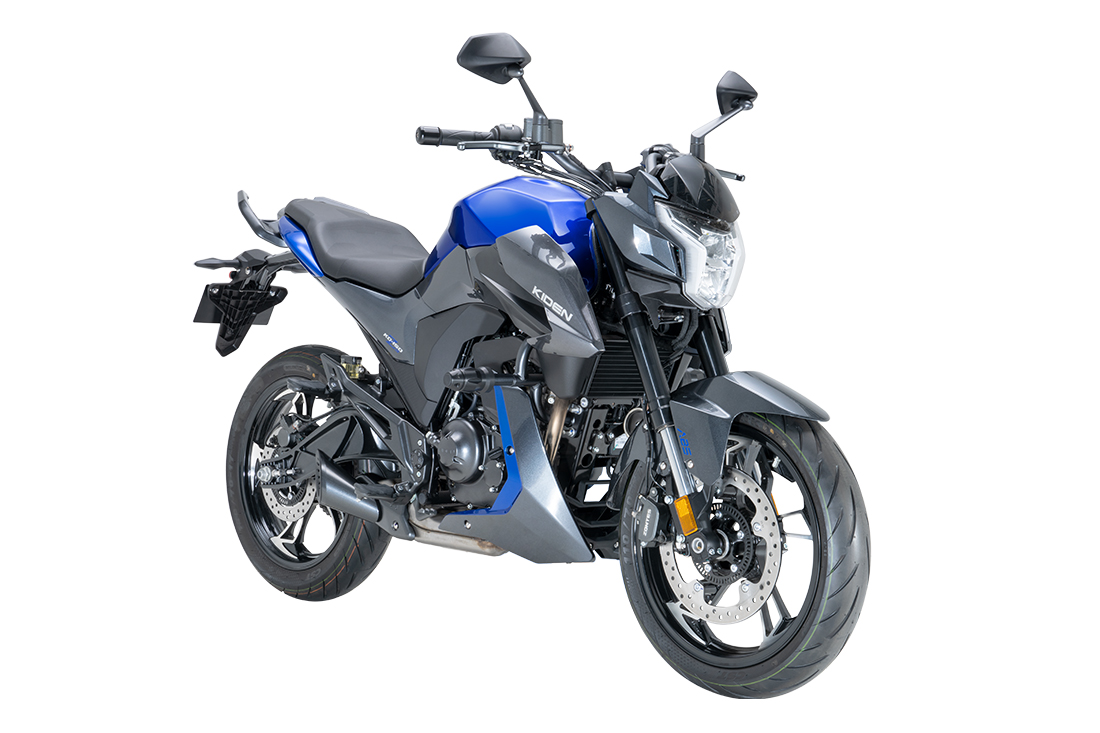

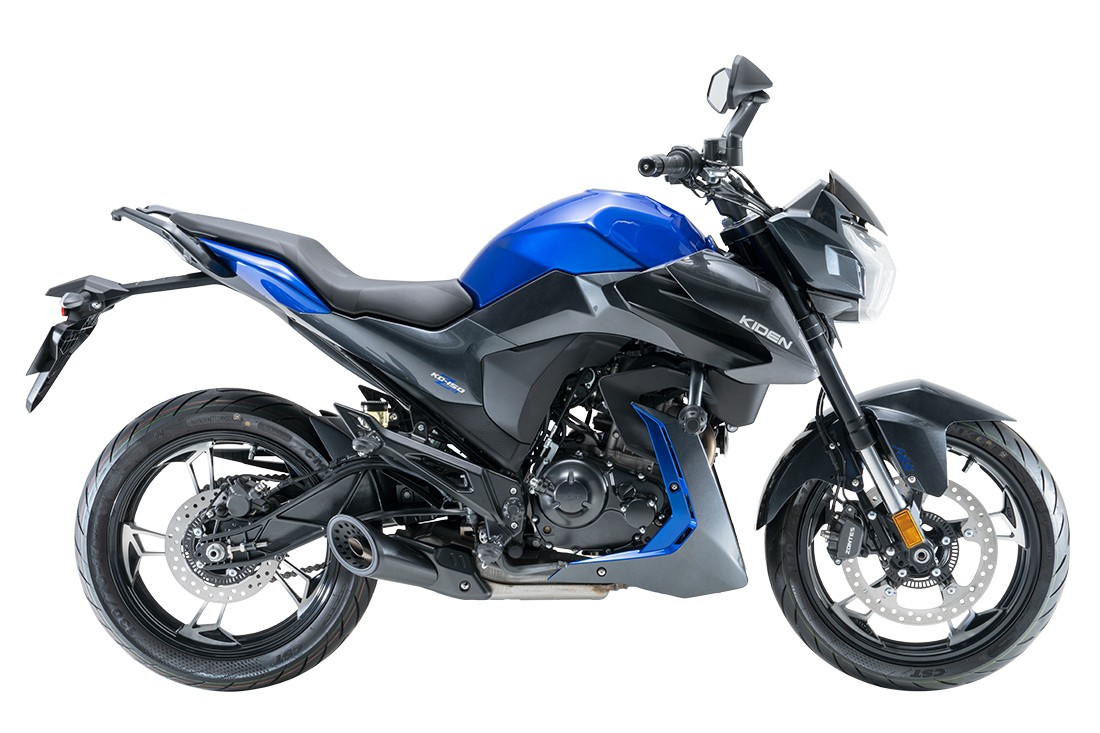

ZONTES ZT150-Z Naked Motorcycle
The ZT150-Z is a modern, high-performance naked motorcycle designed specifically for urban commuting and recreational riding. It combines a 149cc liquid-cooled engine with advanced electronic fuel injection for optimal power delivery and efficiency. Built with a lightweight steel pipe frame and equipped with dual-channel ABS, it offers riders a perfect balance of agility, safety, and contemporary style.
Performance
Key Performance Metrics
150 cc
Displacement
14 kW
Max Power
16 N.m
Max Torque

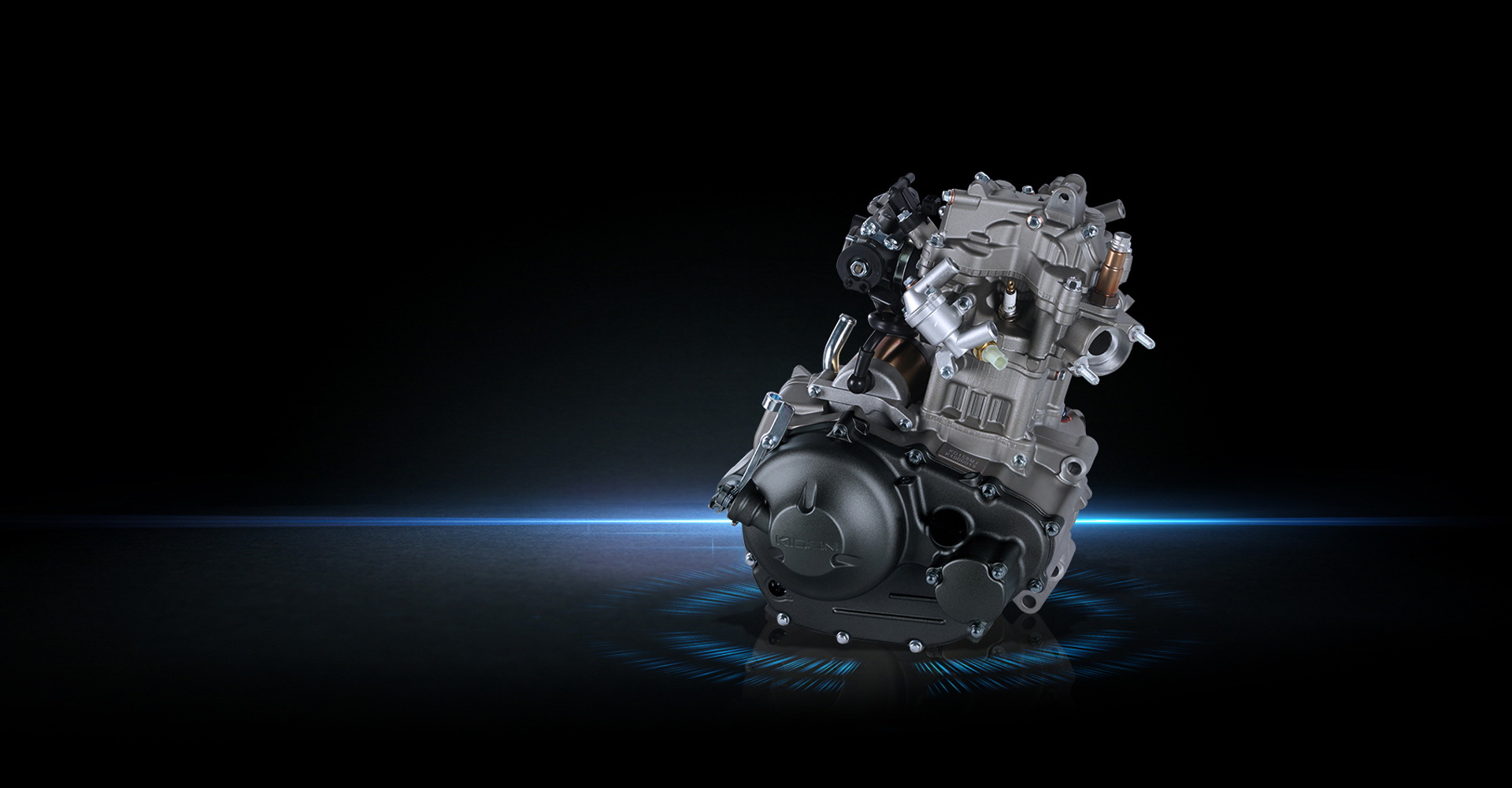

Engine Specifications
| Attribute | Details |
|---|---|
| Cooling System | Water cooling |
| Cylinder Configuration | Single cylinder |
| Compression Ratio | 12.5:1 |
| Transmission | Chain drive |
| Idle Speed | 1500 ± 100 r/min |
| Fuel System | Electronic fuel injection |
Dimensions
Vehicle Dimensions
- Length: 2055 mm
- Width: 790 mm
- Height: 1105 mm
- Wheelbase: 1360 mm
- Ground Clearance: 198 mm
Safety & Handling
Tire Configuration
| Position | Specification |
|---|---|
| Front Tire | 110/70-17 |
| Rear Tire | 130/70-17 |
| Front Rim | MT:3.0x17 |
| Rear Rim | MT:3.5x17 |
- Safety Systems
- Dual channel ABSDisc brakesLED lightingLiquid cooling
