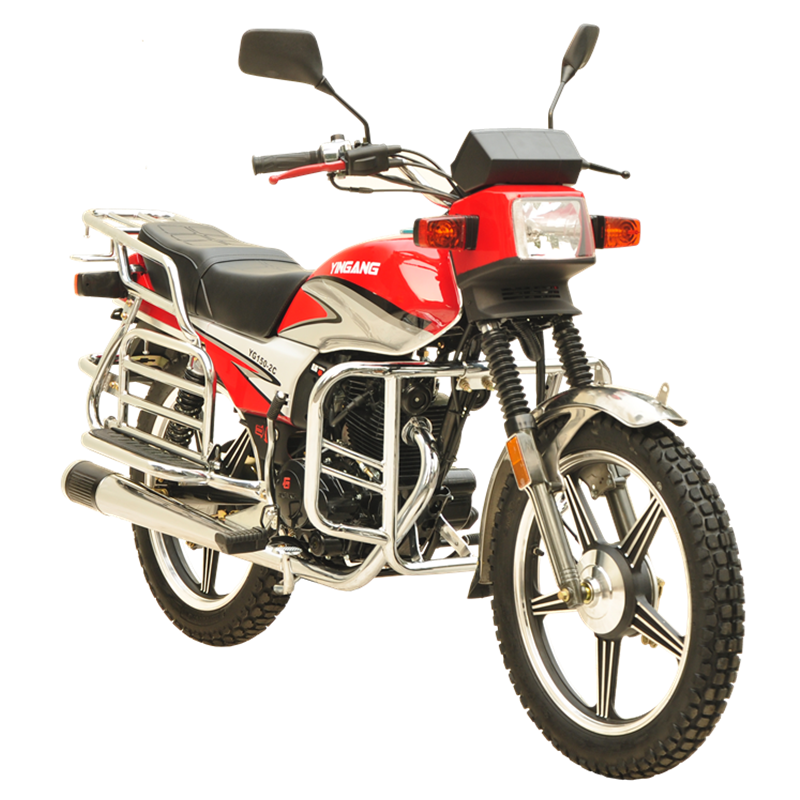

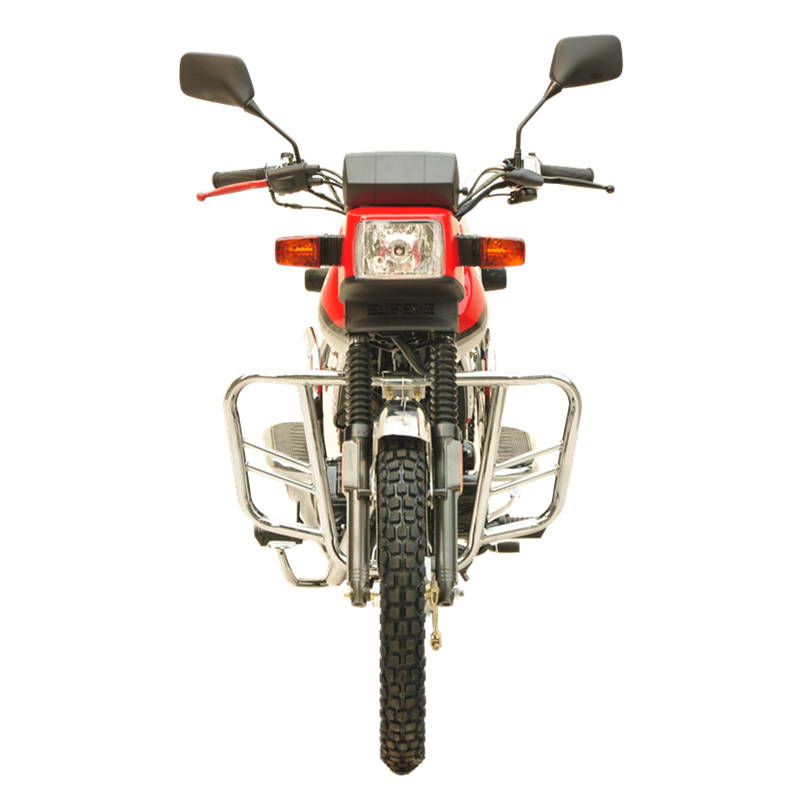

150cc-200cc Off-Road Motorcycle
This off-road motorcycle is designed for rugged terrains and versatile use. It features a robust frame, durable suspension, and a powerful engine optimized for off-road performance.
Technical Specifications
Overview
Versatile Off-Road Capability
This off-road motorcycle series is engineered for both demanding work environments and rugged terrain exploration. Available in 150cc and 200cc configurations, these machines prioritize durability and practical utility through reinforced frames and crash protection. With a classic design, they offer a dependable solution for daily commuting, heavy-duty tasks, and off-road adventures.
Performance
Engine Performance
150 cc
Displacement (Model 1)
200 cc
Displacement (Model 2)
9.3 kW
Max Power (150cc)
10.5 kW
Max Power (200cc)

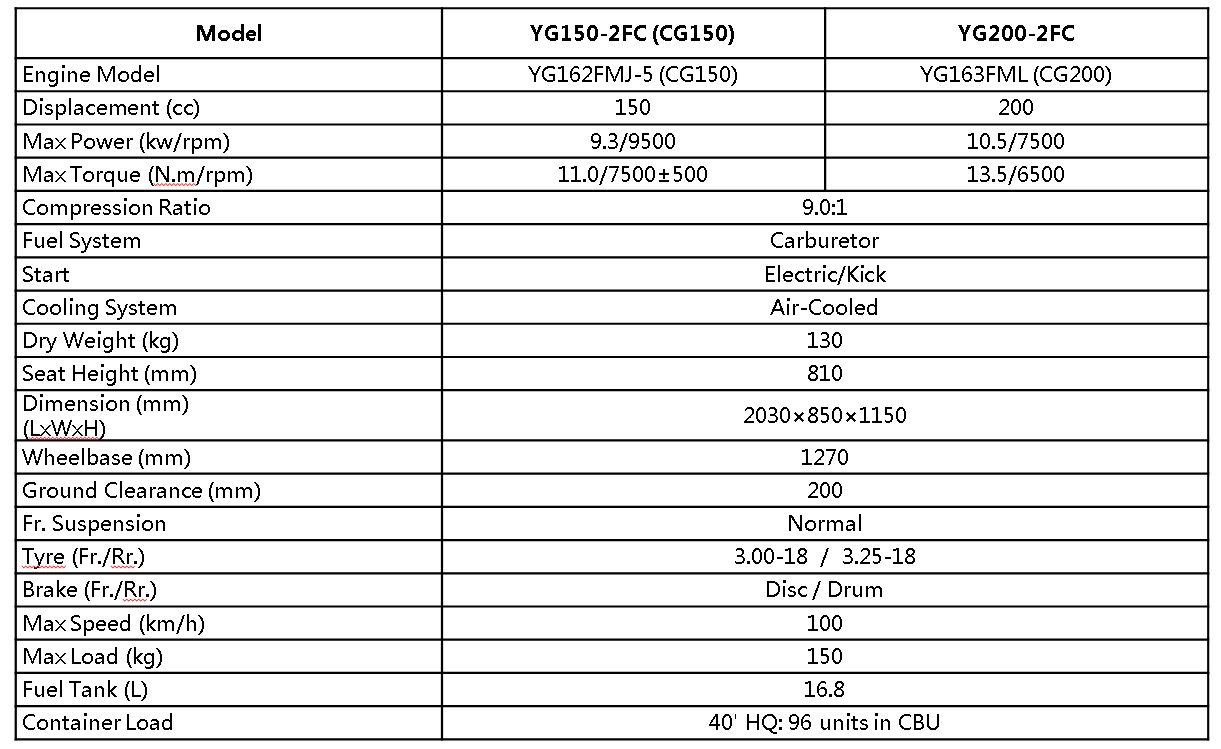

Technical Specifications
Core Specifications
| Feature | Specification |
|---|---|
| Cooling System | Air-Cooled |
| Fuel System | Carburetor |
| Starting Mechanism | Electric/Kick |
| Dry Weight | 130 kg |
| Fuel Tank Capacity | 16.8 L |
| Max Speed | 100 km/h |
| Max Load Capacity | 150 kg |
Dimensions & Build
Physical Dimensions
- Dimensions (LxWxH): 2030 x 850 x 1150 mm
- Wheelbase: 1270 mm
- Ground Clearance: 200 mm
- Seat Height: 810 mm
Features
- Equipment Highlights
- Front Crash BarTelescopic ForksKnobby TiresSpoked Front WheelRear Cargo RackDisc/Drum Braking System
