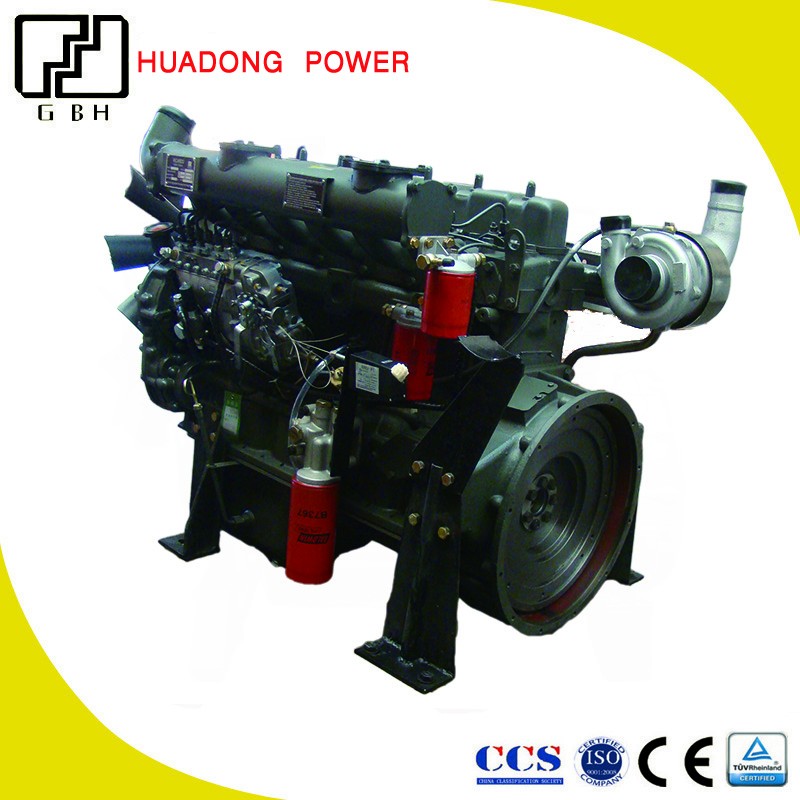

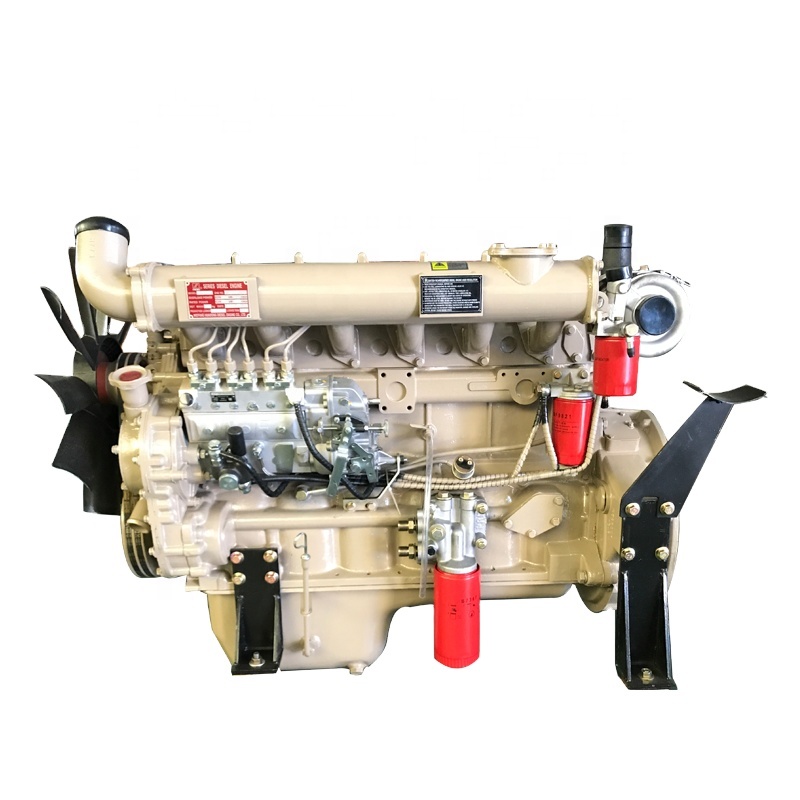

150 HP Ricardo Diesel Engine R6105 Series
This 150 HP diesel engine features a Ricardo design for high performance and durability. The engine's compact design allows for convenient installation and transportation.
Technical Specifications
Overview
High-Performance R6105 Series Diesel Engine
The R6105 series is a robust 150 HP diesel engine designed for demanding industrial and agricultural applications. Featuring a compact design for easy installation, it incorporates advanced water filtration to protect fuel injectors and high-pressure pumps, significantly extending the unit's working life. With an overhaul interval exceeding 10,000 hours and optimized sealing techniques to reduce consumption, this engine offers a reliable and cost-effective power solution for generators and heavy machinery.
Key Features
Performance Highlights
- Compact design for convenient installation and transport
- Advanced water filtration for cleaner fuel and injector protection
- Specialized piston ring and valve sealing to reduce consumption
- High-frequency hardened forged shaft for superior wear resistance
- Overhaul interval greater than 10,000 hours
Technical Specifications
Core Engine Metrics
150 HP
Rated Power
6 L
Cylinders
10,000 Hrs
Overhaul Interval
R6105 Series Technical Data
| Model | Aspiration | Displacement | Bore x Stroke | Output @ 1500rpm | Weight |
|---|---|---|---|---|---|
| R6105ZD | Turbocharged | 6.49 | 105×125 | 84 | 580 |
| R6105AZLD | Turbo-Intercooled | 6.75 | 105×130 | 110 | 620 |
| R6105IZLD | Turbo-Intercooled | 7.1 | 105×135 | 135 | 620 |
Compliance & Quality
- Quality Standards
- ISO 9001:2015CE CertifiedMachinery Directive 2006/42/ECISO 12100:2010EN 1679-1:1998+A1:2011CCS Type Approval
Applications
Primary Applications
Power GenerationConstruction MachineryMarine PropulsionFire Fighting PumpsetsAgricultural IrrigationIndustrial Machinery
Logistics & Maintenance

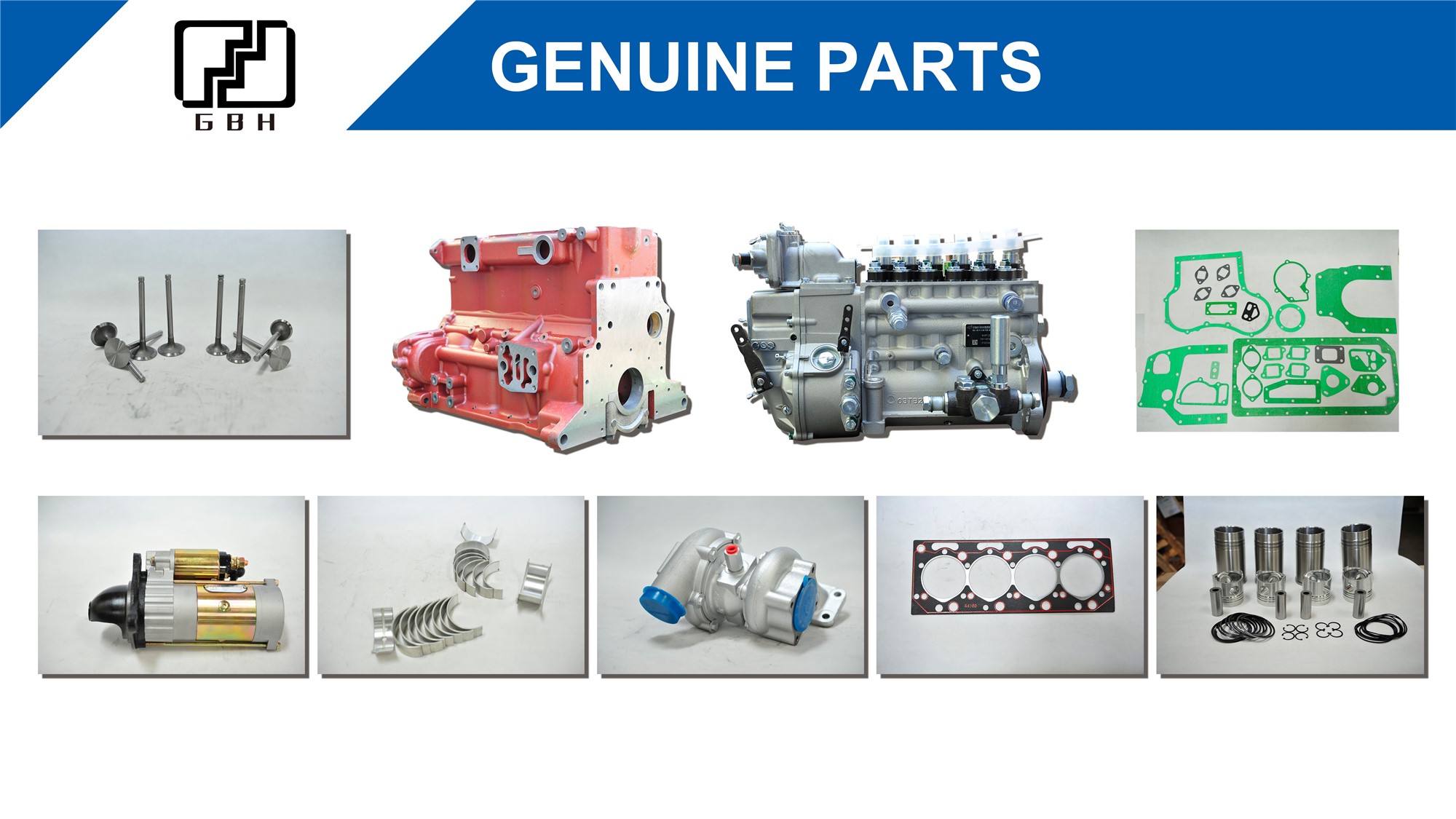

Available Components
- Fuel Injection Pumps
- Turbochargers
- Cylinder Head Gaskets
- Piston and Cylinder Sets
- Starter Motors and Bearings
- Export Packaging
- Engines are protected with silica gel desiccants, wrapped in plastic, and secured in reinforced wooden crates (HT-marked) for international shipping.
