130mm Series Brushless DC Gear Motor
This brushless DC gear motor features high power density, a small moment of inertia, and quick reaction. It is suitable for high-performance motion control applications, including CNC machines, industrial controls, and home appliances.

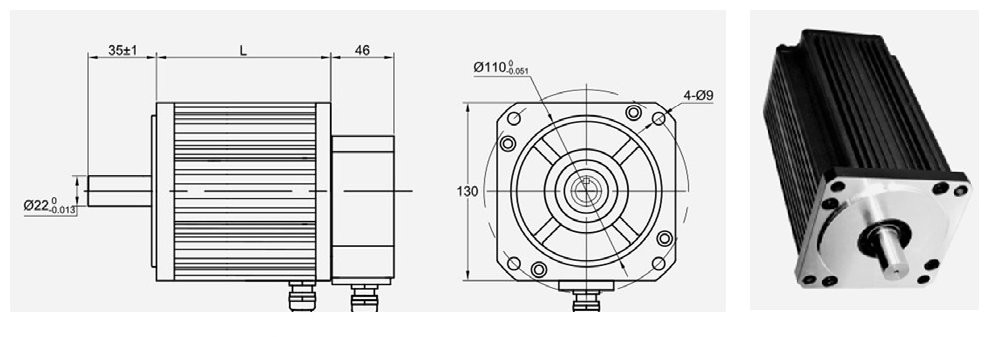

![]Brushless motor 130mm Series - Image 1](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fbrushless-motor-130mm-series%2F0.jpg&w=1536&q=75)
Technical Specifications
Overview
High-Performance 130mm Brushless DC Motor
The 130mm Series Brushless DC Gear Motor is engineered for high power density and long-term reliability in demanding industrial environments. It features a permanent magnet construction that provides high efficiency, low noise, and spark-free operation compared to traditional brushed motors. Designed for versatile motion control, it supports various protection functions including overvoltage and overheating safeguards, making it ideal for CNC machinery, electric vehicles, and home appliances.
Key Performance Metrics
Performance Highlights
3,000 RPM
Rated Speed
785 W
Rated Power
2.5 N·m
Rated Torque
Technical Specifications
Model Specifications
| Model Number | Poles | Voltage (VDC) | Power (W) | Torque (N·m) | Length (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| 130BLB0D062204RN-01 | 8 | 48 | 785 | 2.5 | 120 | 5 |
| 130BLB0J125404RN-01 | 8 | 310 | 1,570 | 5 | 155 | 7 |
Physical Characteristics
- Construction
- Permanent Magnet
- Commutation
- Brushless
- Shaft Diameter
- 22 mm
- Mounting Flange Size
- 130 mm
Operational Standards
Protection Class
IP40IP65 OptionalWaterproof
Work Duty
- S1 (Continuous)
- S2
- S3
- Insulation Class
- Class BClass F
Applications
- Target Applications
- CNC Machine ToolsElectric BicycleIndustrial ControlHome AppliancesBoatCar
Certifications
Compliance
CCCCE
