Technical Specifications
Product Overview
High-Performance Diamond Grinding

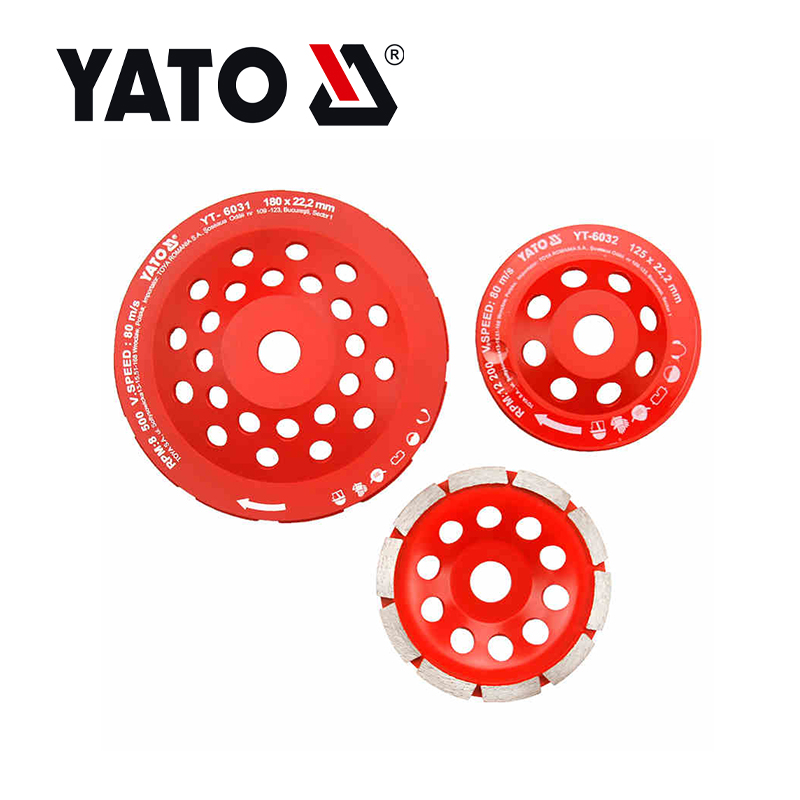

This 125mm diamond grinding cup wheel is engineered for efficient material removal and surface preparation on demanding surfaces like concrete, clinker, and natural stone. Featuring a double-row segment design with 9 segments, it ensures rapid stock removal and durability for professional applications. Built to withstand high-intensity use, this tool delivers consistent results for surface leveling and edge grinding.
Technical Specifications
Dimensions
125 mm
Diameter
22.23 mm
Bore Size
Performance Metrics
12,200 RPM
Max RPM
80 m/s
Max Velocity
Segment Configuration
- 9 segments
- Double row design
- Segment size: 5 x 7.5 mm
Material & Quality
Material Properties
| Property | Value |
|---|---|
| Diamond Concentration | 25% |
| Grade | JR4 |
| Hardness | 16-17 kg |
Disc Color
Red
- Compatible Materials
- ConcreteClinkerNatural Stone
