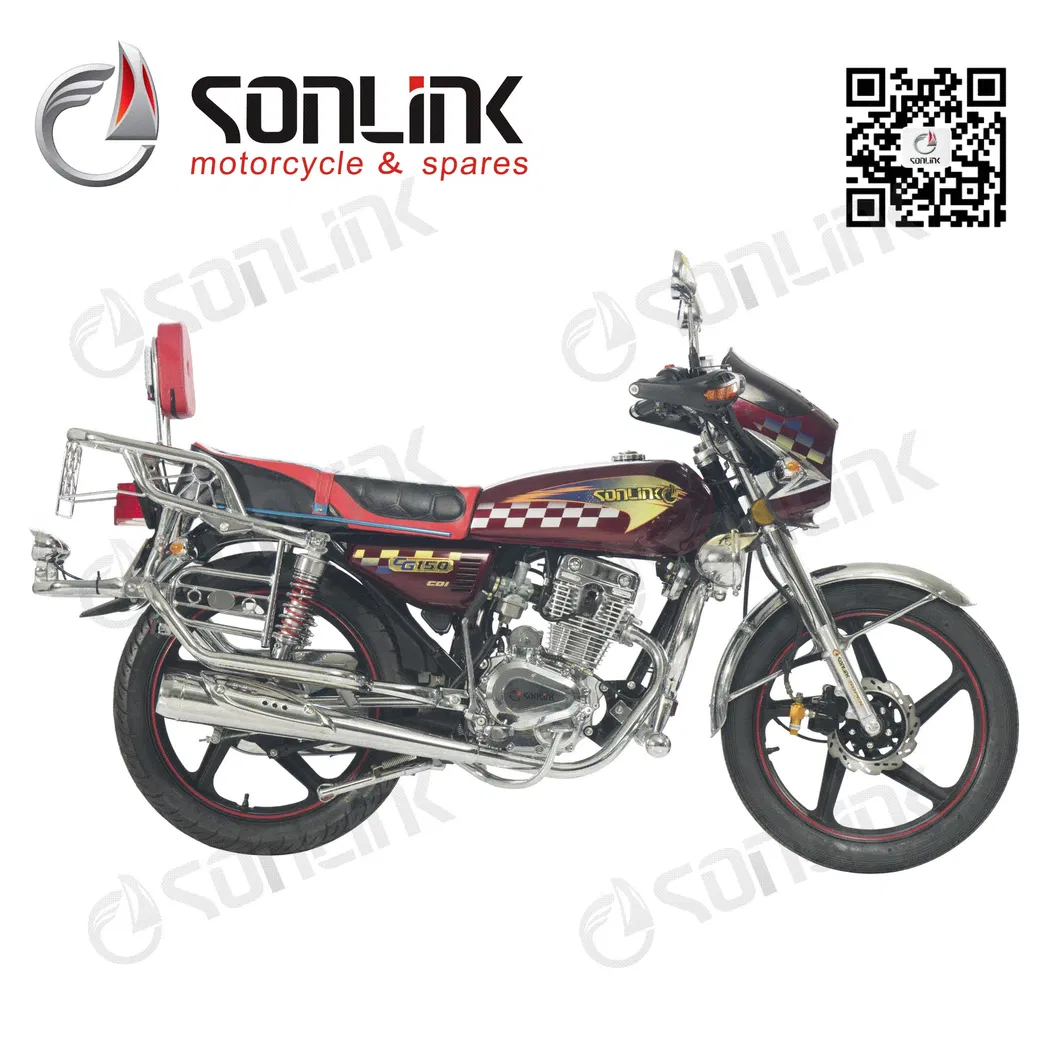

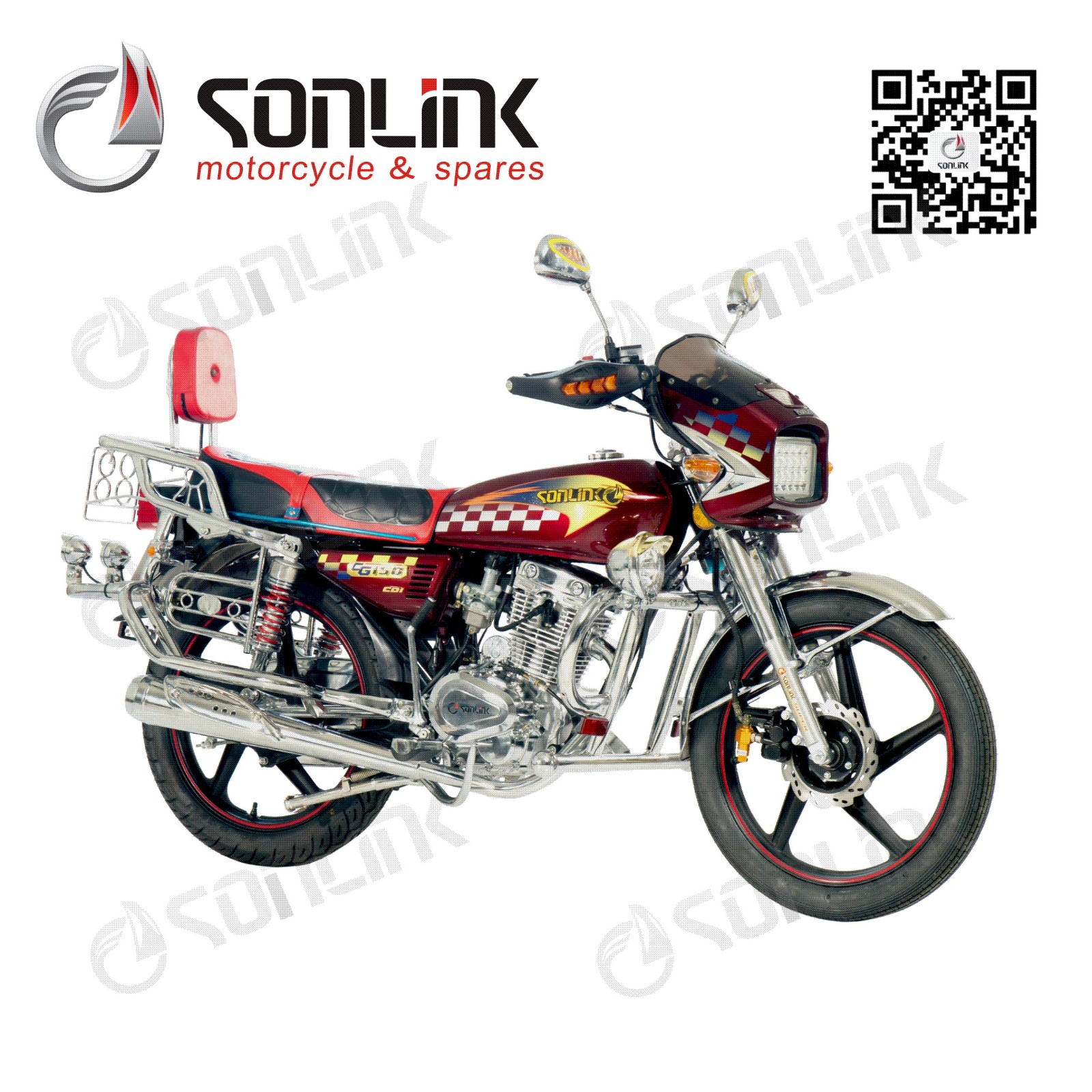

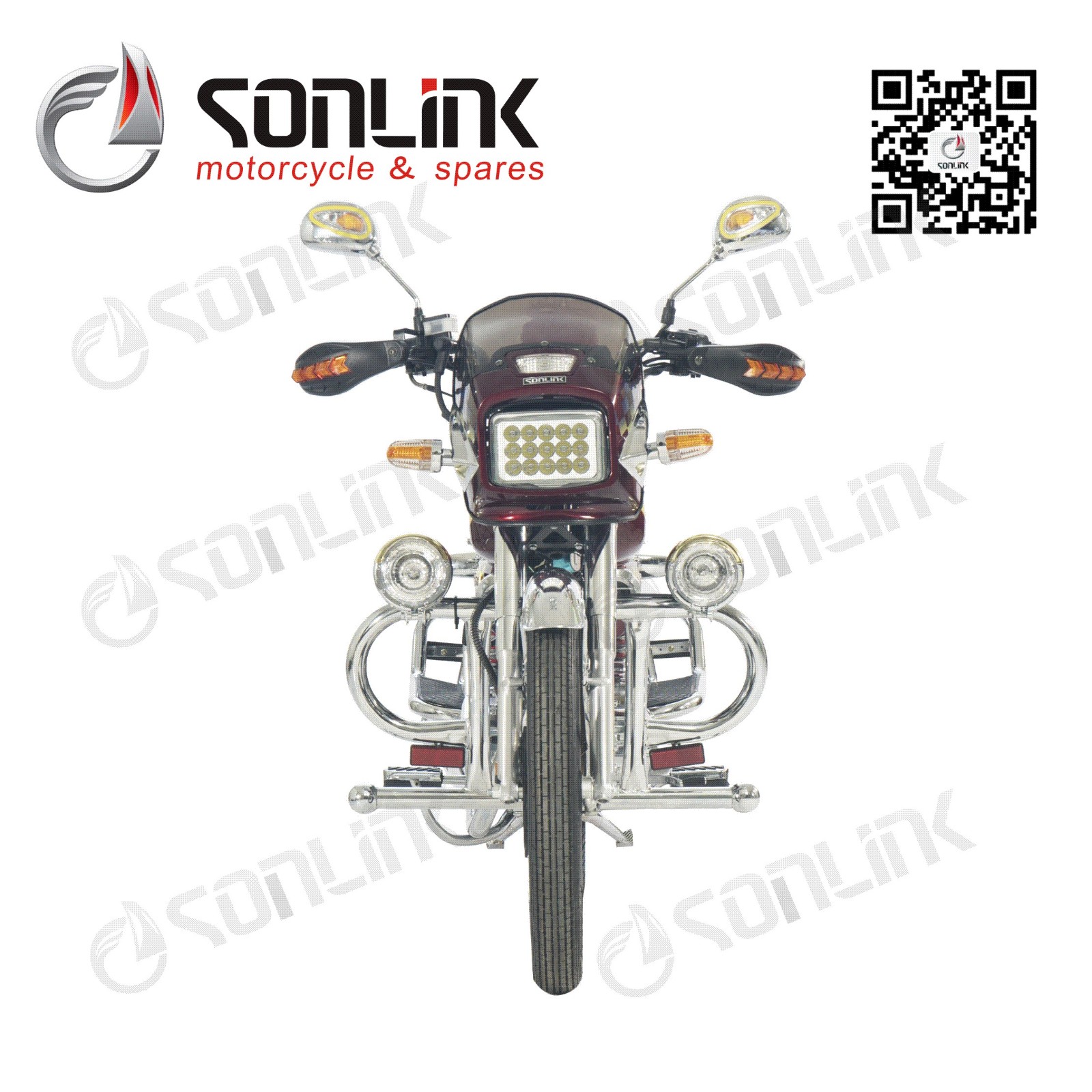

125cc/150cc/200cc CG Type On/Off Street Motorcycle
This motorcycle is available in 125cc, 150cc, and 200cc configurations with a durable CG model engine. It features anti-skid tires and a reinforced frame for reliable on and off-street performance.
Technical Specifications
Overview
Versatile CG-Type Street Motorcycle
This durable and economical CG-type motorcycle is designed for both on-road commuting and off-road versatility. Available in 125cc, 150cc, and 200cc engine displacements, it features a reinforced frame and a high-performance suspension system adapted for all road surfaces. With integrated safety features like an anti-lock braking system and anti-skid vacuum tires, it offers a reliable and secure riding experience for professional and recreational use.
Performance Metrics
Performance Highlights
90 km/h
Max Speed
7.5 kw/8500rpm
Max Power
1.9 L/100km
Fuel Consumption
Engine & Transmission
- Engine Configuration
- 125cc single-cylinder, air-cooled, four-stroke
- Gear Shift Pattern
- 5
- Ignition & Start
- C.D.IElectric StartKick Start
Chassis & Safety
Frame Construction
- Reinforced frame weight: 9.35kg
- Tube arm thickness: >2mm
- Chrome-plated parts: Above grade 7
- Braking System
- Dual pump disc brakes with ABD anti-lock system
- Tires
- Anti-skid vacuum widened tires (Front: 3.00-18, Rear: 110/90-16)
Dimensions & Capacity
Physical Specifications
| Feature | Measurement |
|---|---|
| Wheel Base | 1360 mm |
| Seat Height | 750 mm |
| Ground Clearance | 130 mm |
| Fuel Tank Capacity | 14 L |
Weight & Loading
| Type | Weight | Unit |
|---|---|---|
| Dry Weight | 137 | kg |
| Max Loading Capacity | 150 | kg |
Practical Features
Utility & Cargo
- φ28 tube shelf for luggage
- φ28 tube foot pedal for heavy loads
- Bigfoot pedal protection net
Compliance
Quality Standards
ISO 14001:2004GB/T 24001-2004CCC Certified
