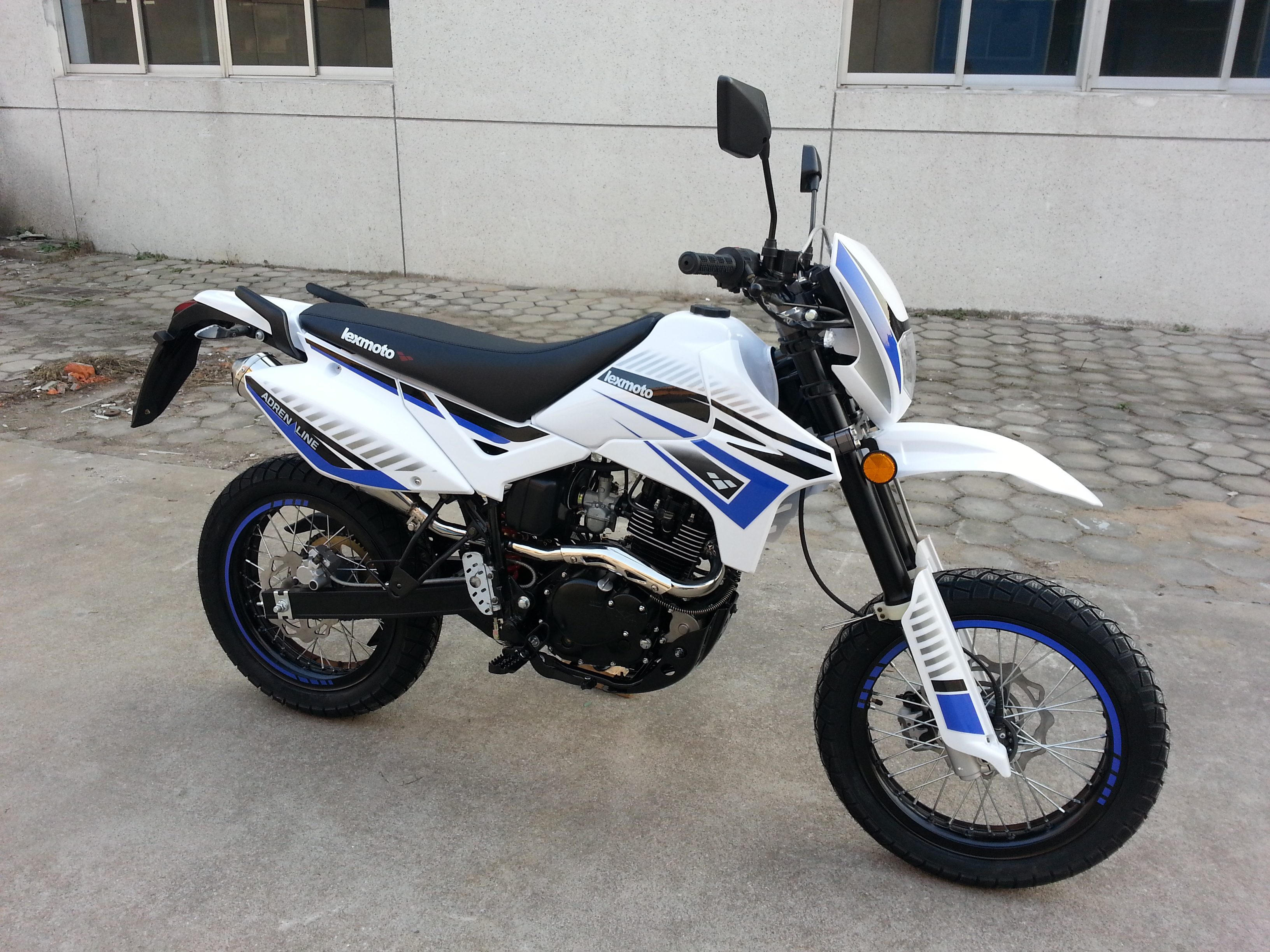

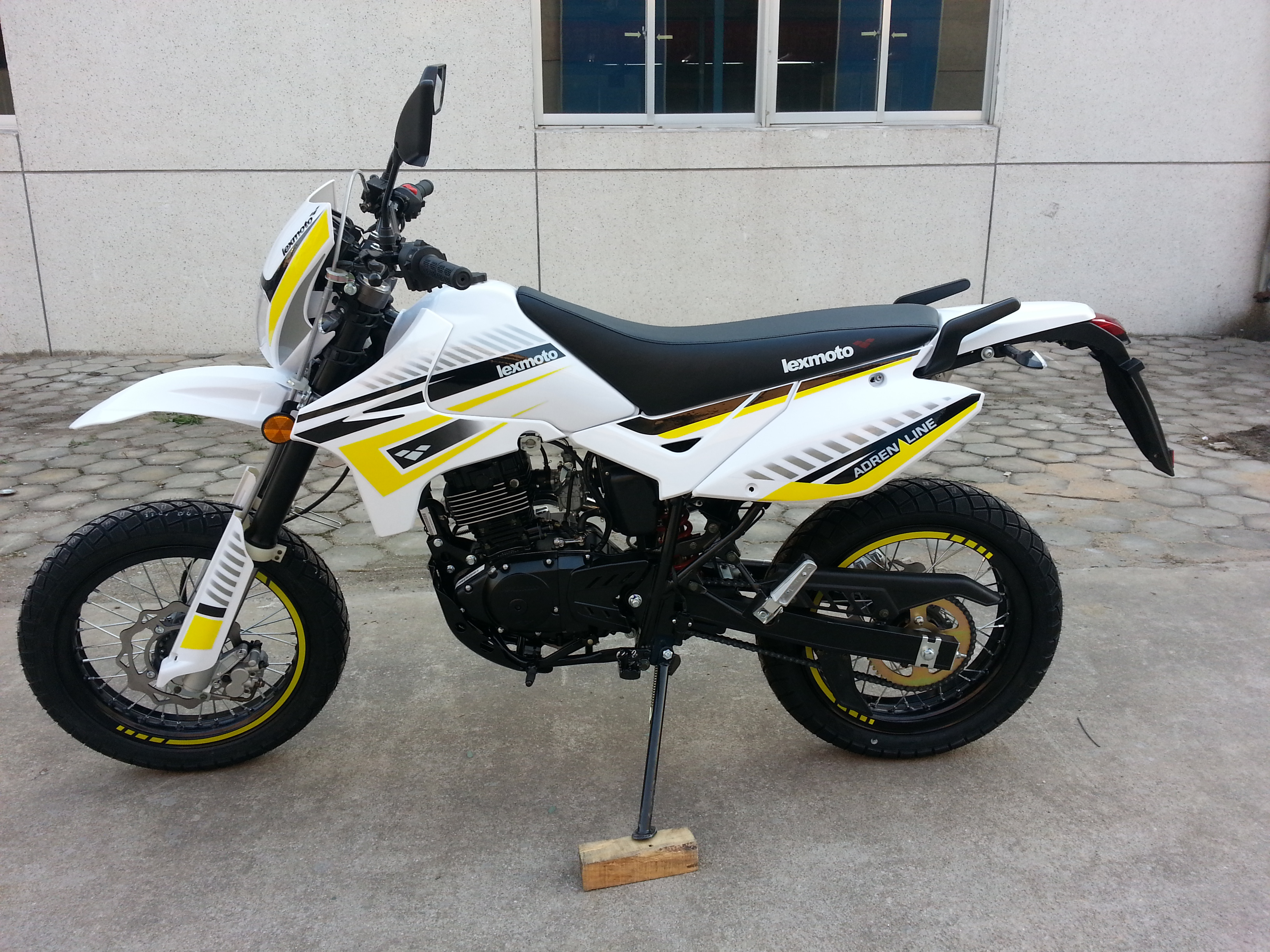

125cc Off-Road Motorcycle
This 125cc off-road motorcycle is designed for both on and off-road use. It features knobby tires, front and rear disc brakes, and a single-cylinder engine.
Technical Specifications
Overview
Versatile 125cc Off-Road Performance
This 125cc off-road motorcycle is engineered for agility and durability, featuring a reliable 4-stroke, air-cooled engine. Designed with a lightweight frame and long-travel suspension, it provides excellent handling across various terrains. Equipped with front and rear disc brakes and a responsive 5-speed transmission, this bike offers a balanced riding experience suitable for both entry-level adventurers and experienced riders.
Engine & Performance
Engine Specifications
8.3 kw
Max Power
8.1 Nm
Max Torque
95 km/h
Max Speed
Mechanical Configuration
| Feature | Specification |
|---|---|
| Engine Type | Single-cylinder, 4-stroke, air-cooled |
| Displacement | 124cc |
| Compression Ratio | 9.5:1 |
| Transmission | 5-speed gear shift |
| Starting System | Electric |
| Ignition | ECU |
| Drive | Chain |
Chassis & Handling
Suspension & Braking
- Front Suspension: Spring oil damper
- Rear Suspension: Swing-arm spring oil damper
- Front Brake: Disc type
- Rear Brake: Disc type (with CBS)
Tire Configuration
| Position | Standard Tire | Race Tire Option |
|---|---|---|
| Front | 2.75-21 | 110/70-17 |
| Rear | 4.10-18 | 130/70-17 |
Dimensions & Logistics
Dimensions
- Length: 2115 mm
- Width: 830 mm
- Height: 1140 mm
- Wheelbase: 1400 mm
- Dry Weight: 123 kg
- Fuel Capacity: 10.6 L
Shipping & Packaging
| Metric | Value |
|---|---|
| Packing Size | 1890 x 460 x 1050 mm |
| Qty per 40' GP | 60 units |
| Qty per 20' GP | 30 units |
