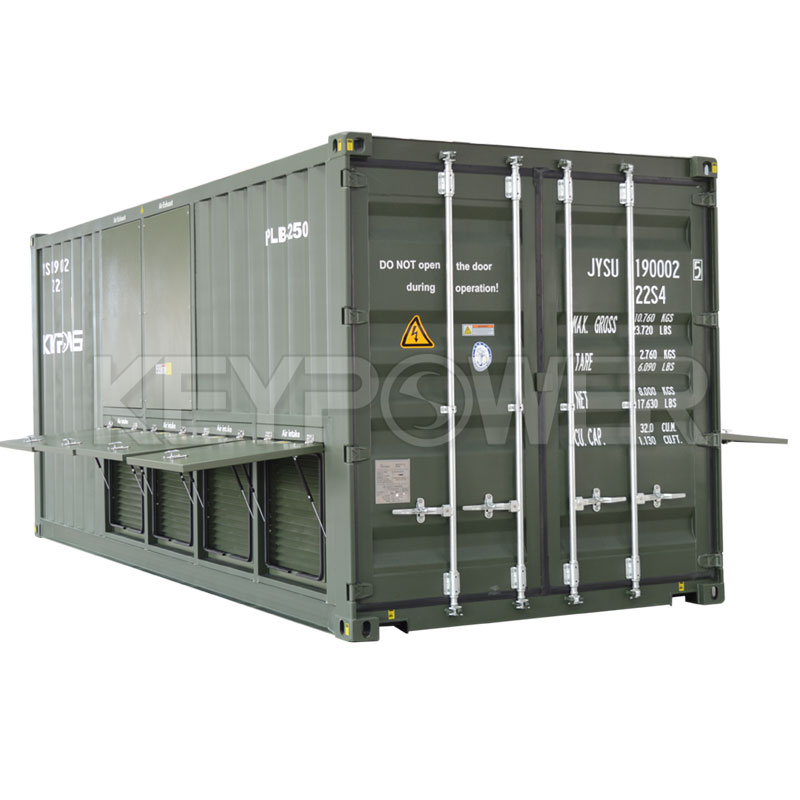

1250 kVA Containerized Inductive Load Bank
Containerized inductive load bank is designed for testing and verifying power generation systems. With a power factor range of 0.8 to 1.0, it provides a reliable means of simulating electrical loads.
Technical Specifications
Overview
High-Capacity Containerized Load Bank
This 1250 kVA containerized inductive load bank is designed for rigorous power system testing, including generators, UPS, and battery banks. It features a durable, portable enclosure suitable for on-site deployment and precise load step control for accurate performance validation. With advanced monitoring and safety protections, it ensures reliable operation across a wide range of testing environments.
Technical Specifications
Testing Capacity
1,250 kVA
Rated Capacity
10 kW
Load Step Resolution
Electrical Parameters
| Parameter | Value |
|---|---|
| Voltage Range | 110-480 VAC |
| Frequency | 50/60 Hz |
| Power Factor | 1.0 or 0.8 |
| Phase | Single and Three Phase |
- Core Components
- Schneider ContactorsSiemens SwitchesABB Circuit BreakersOmron RelaysPhoenix Terminal BlocksLovato Electricity Meter
Operational Features
Control Modes
- Local manual control
- Remote control panel (up to 30m)
Safety Protections
Overheating ProtectionFan Failure ProtectionOverload Protection
- Cooling System
- Forced air-cooled with industrial-grade axial fans mounted on the side
Environment
Operating Environment
| Condition | Limit |
|---|---|
| Max Altitude | 3000m |
| Ambient Temperature | -10 to +50 °C |
| Relative Humidity | ≤ 80% |
