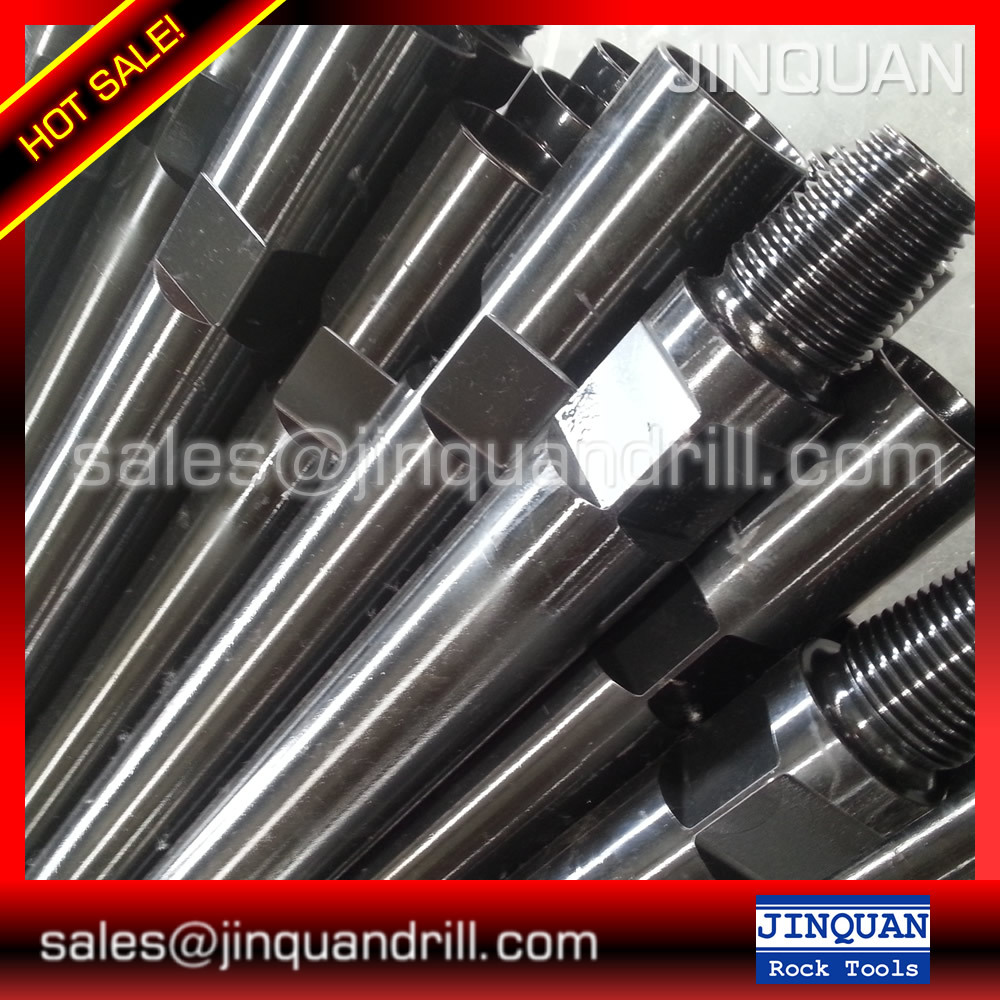

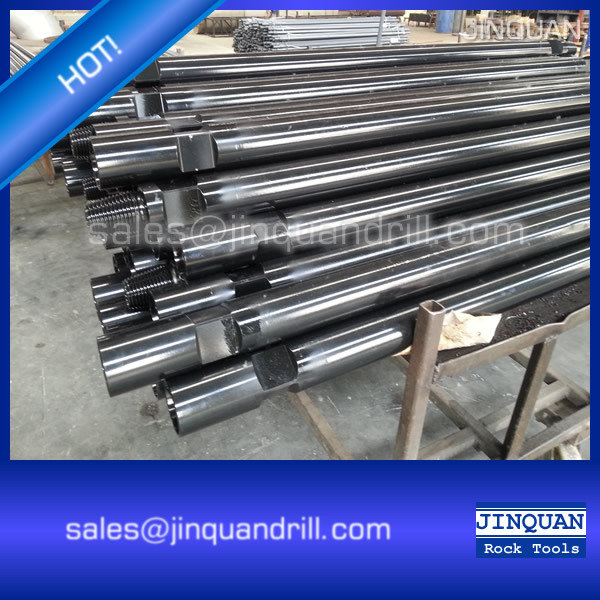

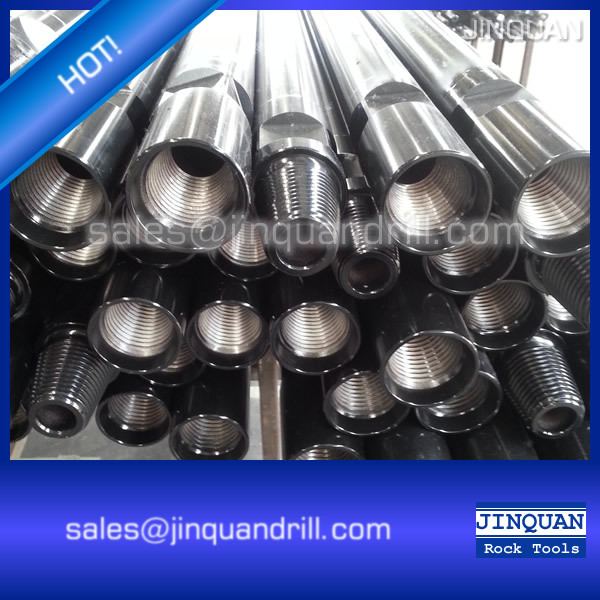

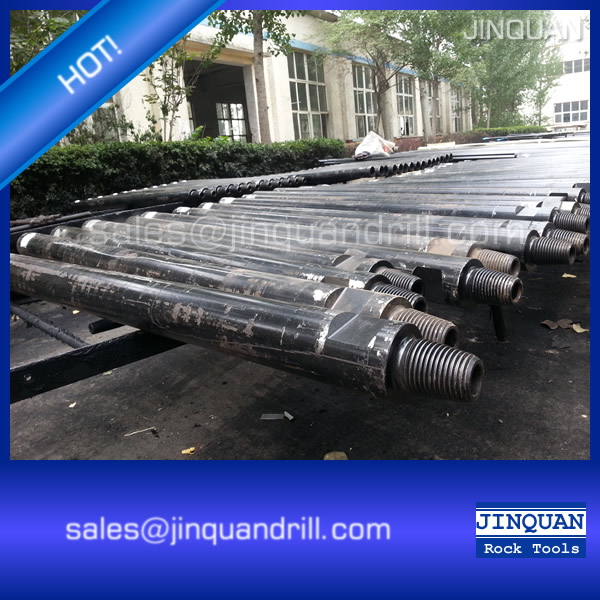

114mm DTH Drill Rod
DTH drill pipe is made of high quality material detected by spectrograph, impact and tension test. With fully digitized processing line introduced with integral heat treatment equipment
Technical Specifications
Overview
High-Performance DTH Drill Rods
These 114mm DTH drill rods are engineered for demanding rock drilling and piling applications in the mining and construction industries. Manufactured using advanced friction welding technology and integral heat treatment, they ensure efficient energy transfer from the hammer to the drill bit. The surface features a nitrogen treatment for anti-adhesion, making handling easier and extending the service life of the threads in harsh environments.
Key Metrics
Physical Dimensions
114 mm
Outer Diameter
3,000 mm
Standard Length
Technical Specifications
Available Lengths
- 1000mm
- 1500mm
- 2000mm
- 3000mm
- 6000mm

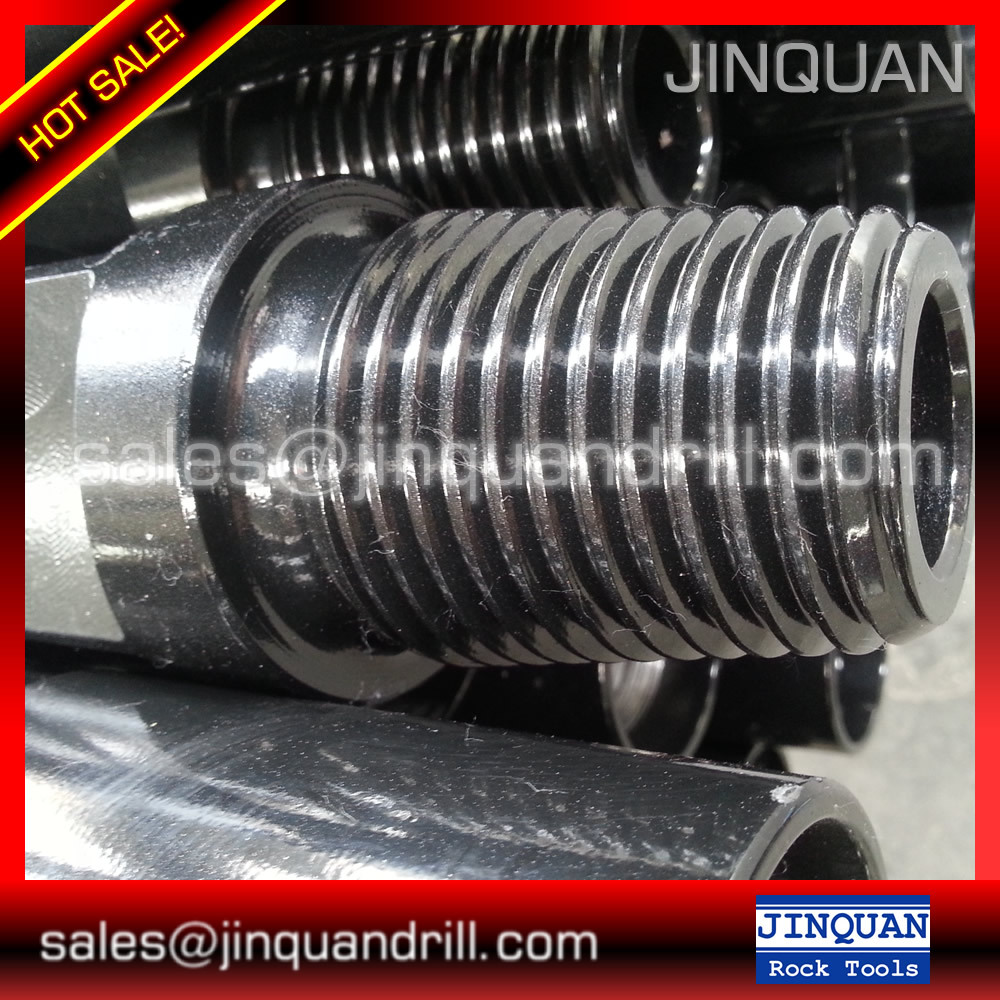

API Thread Connections
| Thread Type | Sizes |
|---|---|
| API Reg | 2 3/8”, 2 7/8”, 3 1/2”, 4 1/2” |
| API IF | 2 3/8”, 3 1/2” |
- Available Outer Diameters
- 76mm89mm102mm114mm
Manufacturing & Quality
Quality Assurance Tests
Spectrograph AnalysisImpact TestTension TestHardness TestMagnaflux InspectionUltrasonic Flaw DetectionMetallography Detection
- Production Technology
- Friction welding with integral heat treatment
- Surface Treatment
- Nitrogen treatment for anti-adhesion threads
Applications
Primary Applications
- Mining Operations
- Construction Piling
- Rock Drilling Projects
- Quarrying
