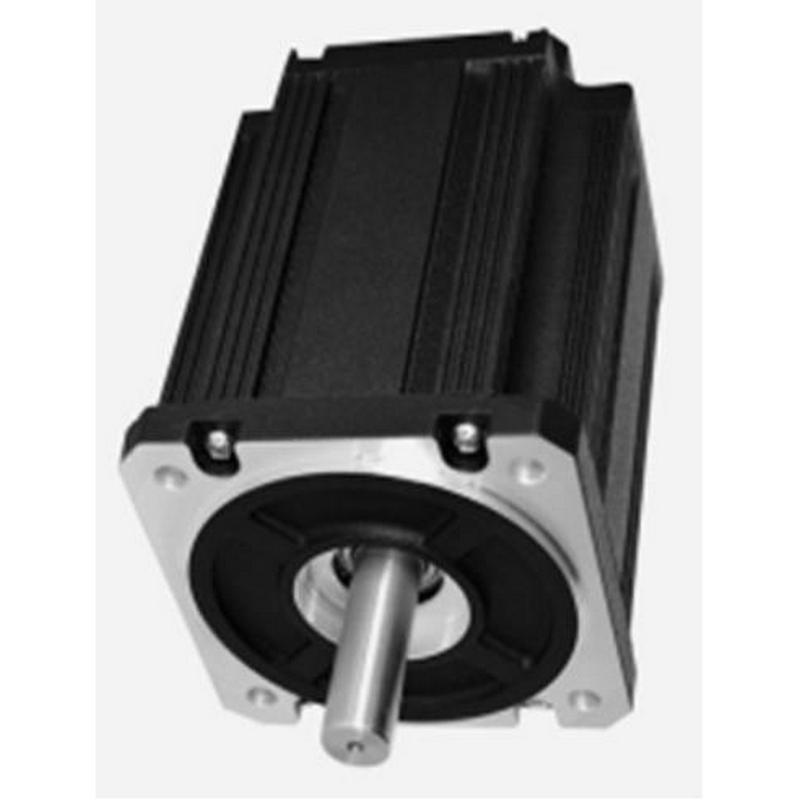

110mm Brushless DC Gear Motor
This 110mm series brushless DC gear motor features high power density and a compact design. It is suitable for applications requiring precise speed control, high efficiency, and extended operational lifespan.
Technical Specifications
Overview
High-Performance 110mm Brushless DC Motor
This 110mm series brushless DC motor offers high power density and efficiency, making it an ideal replacement for traditional AC or brushed motors in energy-saving applications. Featuring a permanent magnet construction and waterproof protection, it provides reliable performance with low noise and no spark interference. Its versatile design supports integration with various reducers and electronic control technologies for precise motion control.
Performance Highlights
Key Performance Metrics
310 VDC
Rated Voltage
8,000 RPM
Max Speed
7.16 N·m
Max Torque
2,249 W
Max Power
Technical Specifications
- Motor Type
- Gear Motor
- Construction
- Permanent Magnet
- Commutation
- Brushless
- Number of Poles
- 8
- Protection Features
- WaterproofOvervoltage ProtectionUndervoltage ProtectionOvercurrent ProtectionOverheating Protection
Operational Standards
Insulation Class
Class BClass F
Protection Class
IP40IP65
Work Duty
- S1 (Continuous)
- S2
- S3
Model Variants
Model Comparison Table
| Model Number | Power (W) | Speed (RPM) | Torque (N·m) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 110BLB0J062204RN-01 | 625 | 2,000 | 2 | 125 | 4.8 |
| 110BLB0J125404RN-01 | 1,250 | 4,000 | 4 | 155 | 5.2 |
| 110BLB1J188804RN-01 | 1,885 | 8,000 | 6 | 185 | 5.5 |
| 110BLB2J225304RN-01 | 2,249 | 3,000 | 7.16 | 210 | 6 |
Applications
- Common Applications
- CNC Machine ToolsIndustrial ControlElectric BicycleMedical FieldHome AppliancesBoat & CarFans
Certifications
- Compliance & Certifications
- CCCCE
