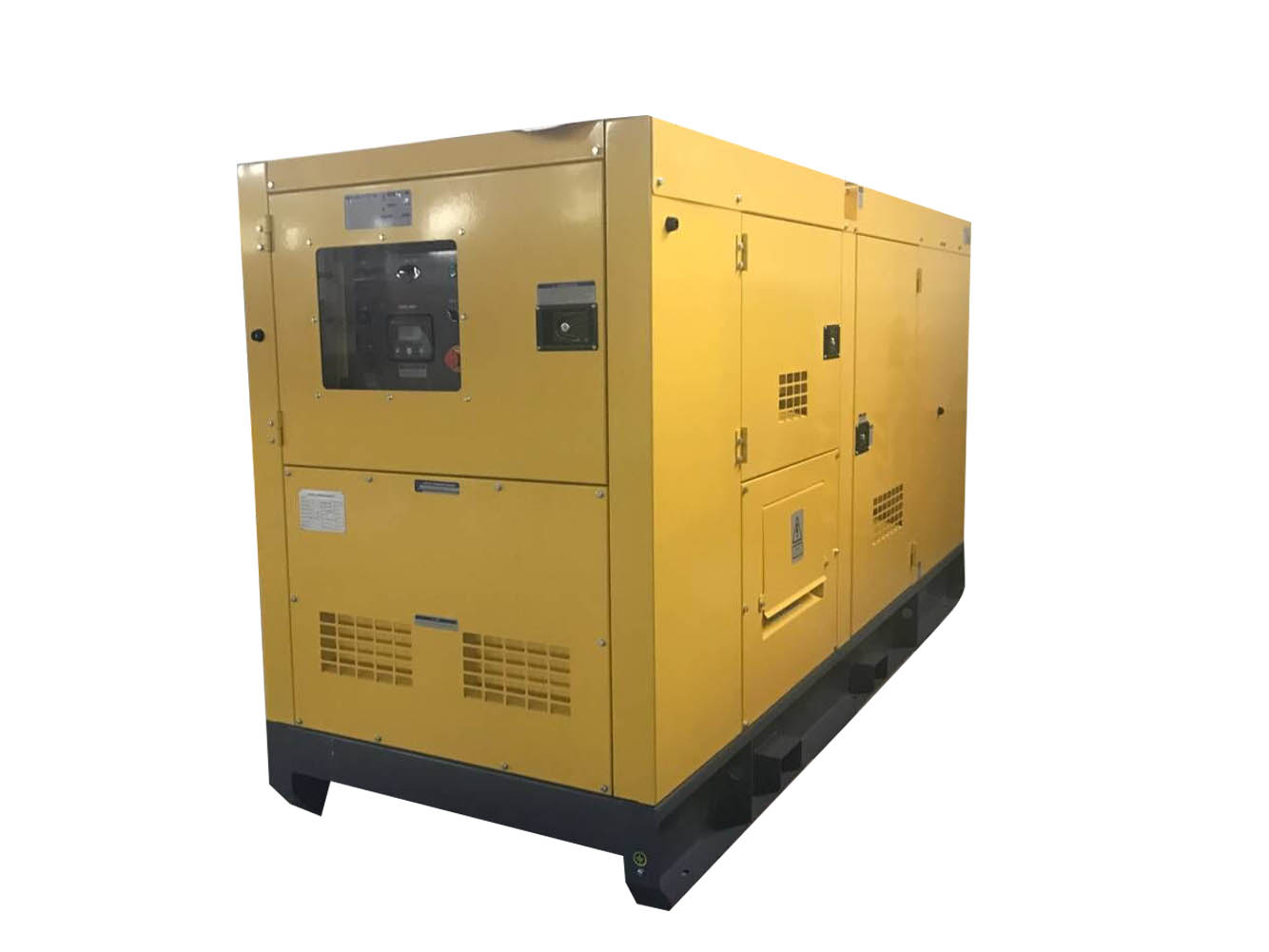

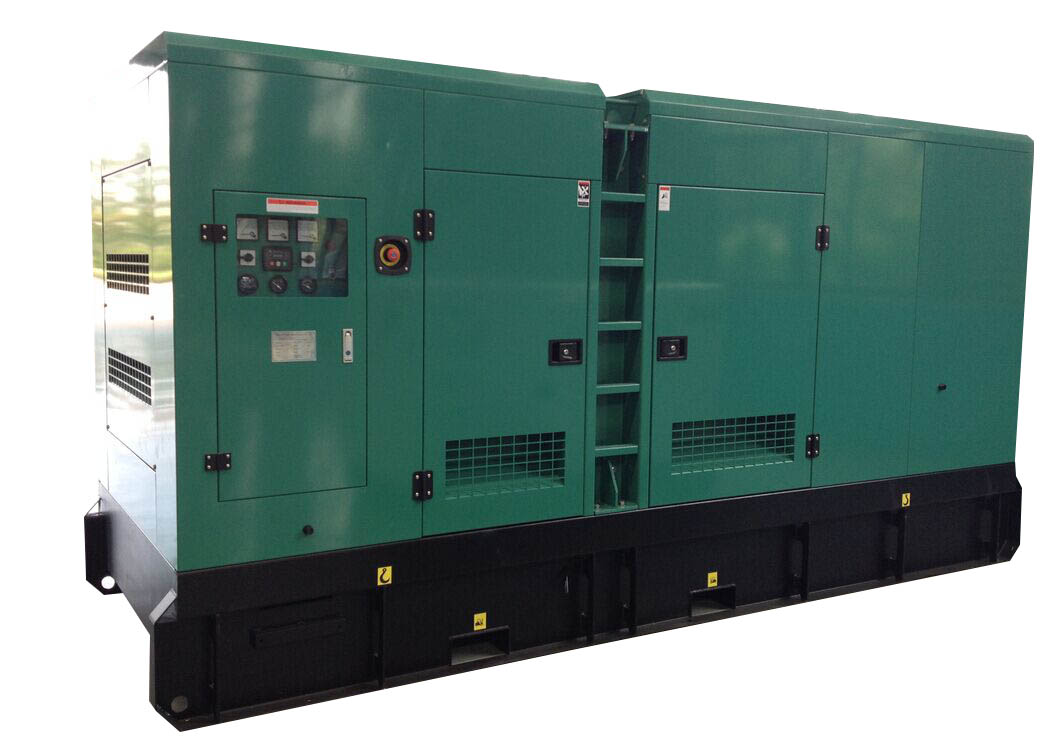

110kVA 88kW Diesel Generator Set, 50Hz
This diesel generating set delivers 110kVA (88kW) of power at 50Hz. It features a durable enclosure providing noise reduction and weather protection.
Technical Specifications
Overview
Reliable 110kVA Diesel Power Solution
This 110kVA (88kW) diesel generator set is engineered for high-torque performance and easy maintenance in demanding B2B environments. Designed with a high-quality, corrosion-resistant sheet metal canopy, it offers superior waterproofing and dust protection for both indoor and outdoor use. The system features an integrated control panel for omni-directional monitoring, ensuring safe and efficient power delivery for industrial, commercial, and emergency backup applications.
Performance Metrics
Rated Power Output
110 kVA
Standby Capacity
88 kW
Standby Power
100 kVA
Prime Capacity
80 kW
Prime Power
Engine Specifications
Engine Technical Data
| Feature | Specification |
|---|---|
| Configuration | 6-Cylinder, In-Line |
| Cycle | 4-Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102mm x 120mm |
| Compression Ratio | 17.3:1 |
| Governing Type | Electronic |
| Cooling Method | Water Cooled |
| Induction | TCA |
Alternator & Electrical
Alternator Characteristics
- 100% Copper Windings
- Insulation Class H
- IP23 Protection Level
- AVR Model AS440 with ±1.0% Regulation
- 2/3 Winding Pitch
- Self-excited SHUNT system
Physical Construction
- Enclosure & Mobility
- Soundproof CanopyCorrosion-ResistantScratch-ResistantWeatherproofCrane/Forklift ReadyIntegrated Fuel Tank
Operational Features
Operational Capabilities
- ≥8-hour continuous run fuel tank
- 50°C Radiator for soundproof models
- Automatic Mains Failure (AMF) support
- Remote monitoring via RS232/RS485
- Low noise emissions (approx. 70-72 dBA @ 7m)
- Parallel operation capability for multiple units
Safety & Protection
- Protection Systems
- Low Oil Pressure ShutdownOvervoltage ProtectionOverspeed ProtectionOverload ProtectionHigh Temperature ProtectionShort-Circuit Protection
Compliance & Quality
Certifications & Standards
ISO 9001:2008ISO 14001:2004OHSAS 18001:2007CE Certified98/37/EC Machinery Safety2005/88/EC Outdoor Noise
Quality Control
- Testing Protocol
- Each unit undergoes a rigorous 1-hour pre-delivery test at 25%, 50%, 75%, 100%, and 110% load levels.
