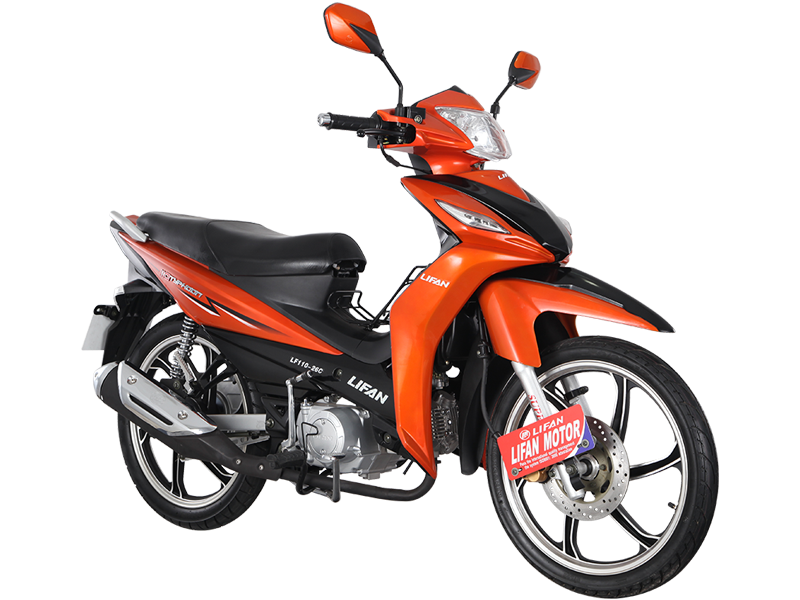

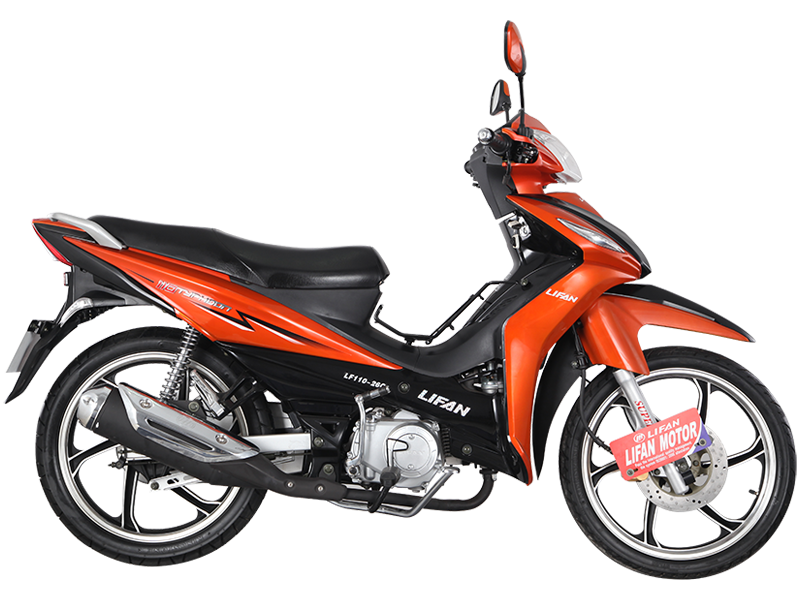

110cc Underbone Motorcycle
This underbone motorcycle is equipped with a 110cc engine, suitable for navigating urban environments and short commutes. Its design focuses on practicality and ease of use, featuring a step-through frame for convenient mounting and dismounting.

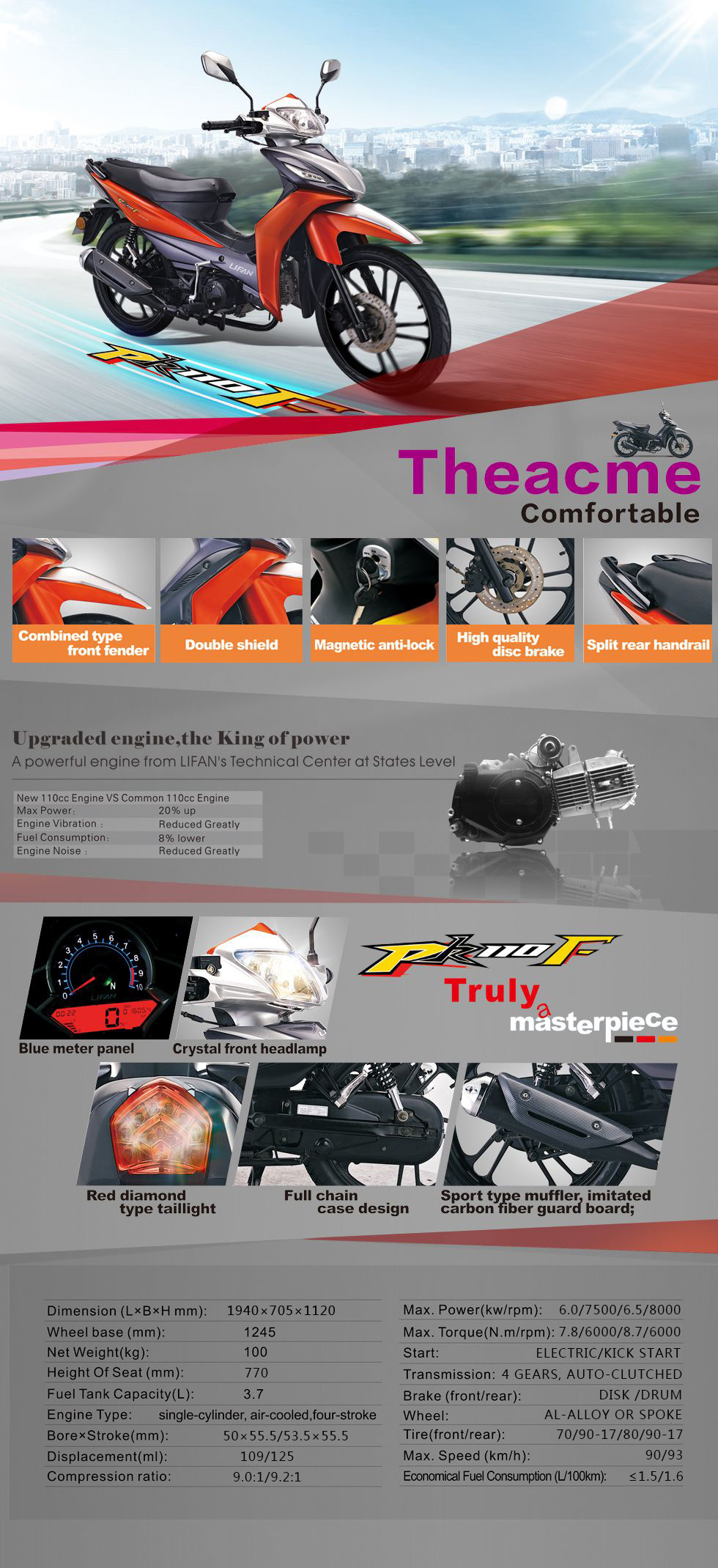

Technical Specifications
Overview
Compact Urban Commuter
This 110cc underbone motorcycle is engineered for efficient urban commuting and short-distance travel. Featuring a reliable single-cylinder, air-cooled, four-stroke engine, it balances power with fuel economy. The step-through frame design ensures ease of use, while its lightweight construction and responsive handling make it highly maneuverable in congested traffic.
Performance Metrics
Engine Performance
110 cc
Displacement
90 km/h
Max Speed
1.5 L/100km
Fuel Consumption
Engine Specs
Engine Specifications
| Attribute | Value |
|---|---|
| Engine Type | Single-cylinder, air-cooled, four-stroke |
| Compression Ratio | 9.0:1 / 9.2:1 |
| Max Power | 6.0kW@7500rpm / 6.5kW@8000rpm |
| Max Torque | 7.8Nm@6000rpm / 8.7Nm@6000rpm |
Chassis and Handling
Dimensions
- Length x Width x Height: 1940 x 705 x 1120 mm
- Wheelbase: 1245 mm
- Seat Height: 770 mm
- Net Weight: 100 kg
- Brakes and Wheels
- Disc/Drum BrakesAl-alloy or Spoke Wheels4-Gear TransmissionAuto-clutched
Features
Starting System
Electric StartKick Start
