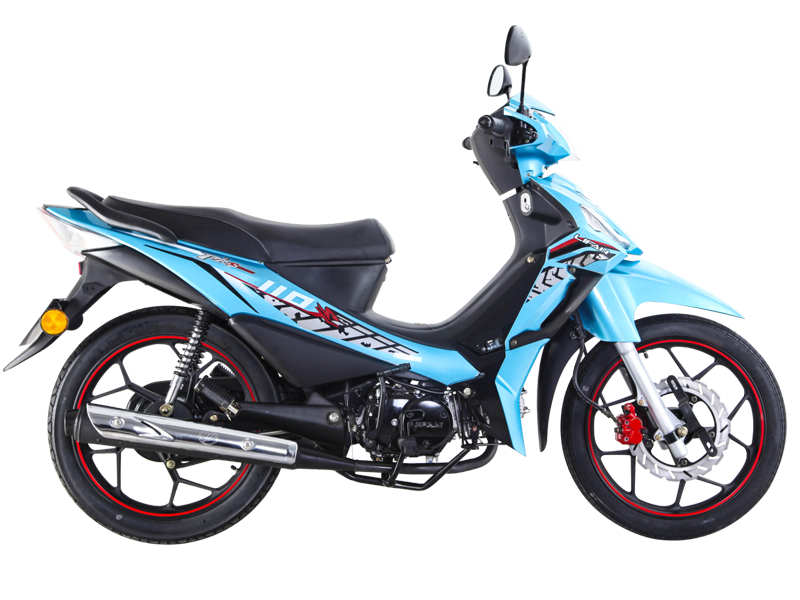

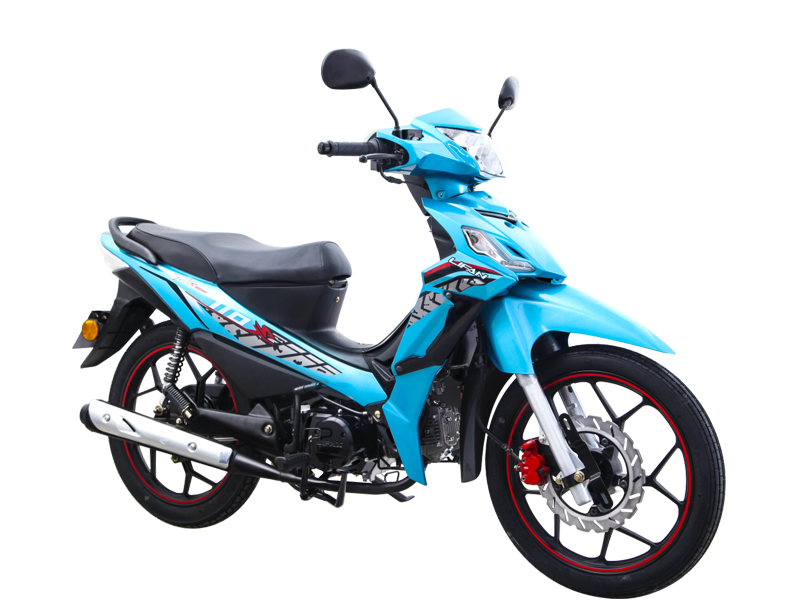

110cc Step-Through Cub Motorcycle
This cub motorcycle is equipped with a 110cc, air-cooled, four-stroke engine. It features a step-through frame design for convenient mounting and dismounting.
Technical Specifications
Overview
Efficient Urban Commuting
This 110cc step-through cub motorcycle is designed for reliable urban transportation and light hauling. Featuring a fuel-efficient four-stroke engine and a lightweight, maneuverable frame, it offers an economical solution for navigating congested city streets. With a user-friendly auto-clutch transmission and comfortable ergonomics, it is an ideal choice for daily commuting and general transport needs.
Performance
Engine Specifications
| Metric | Value |
|---|---|
| Engine Type | Single-cylinder, air-cooled, four-stroke |
| Displacement | 107 mL |
| Compression Ratio | 9.0:1 |
| Bore x Stroke | 52.4 x 49.5 mm |
Power & Efficiency
5.2 kW
Max Power
6.9 N.m
Max Torque
85 km/h
Max Speed
- Fuel Economy
- 1.6 L/100km
Dimensions & Capacity
- Dimensions
- 1900 x 705 x 1060 mm
- Net Weight
- 100 kg
- Fuel Tank Capacity
- 3.7 L
Technical Features
Transmission & Starting
- 4-gear transmission
- Auto-clutched
- Electric start
- Kick start
Wheel Configuration
Al-alloy wheelsSpoke wheels
- Braking System
- Front Disc BrakeRear Drum Brake
- Tire Sizes
- 2.50-17 (Front) / 2.75-17 (Rear)
