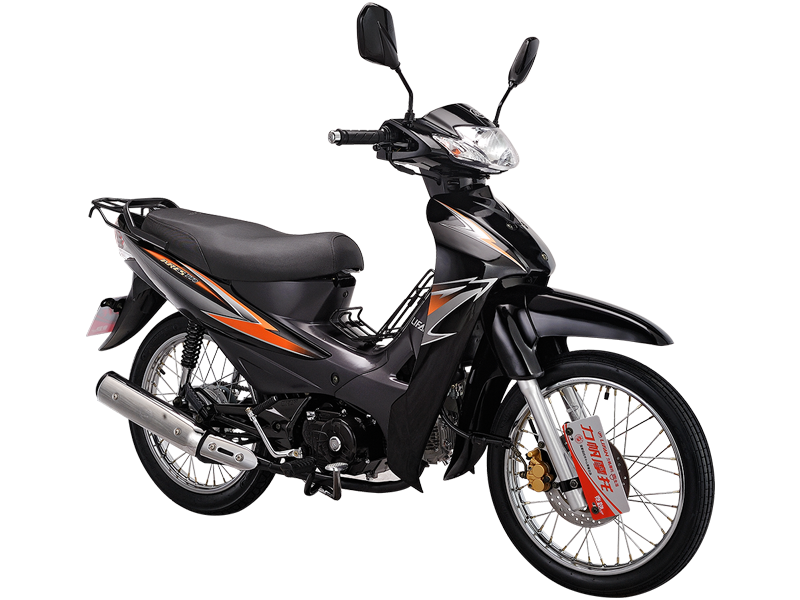

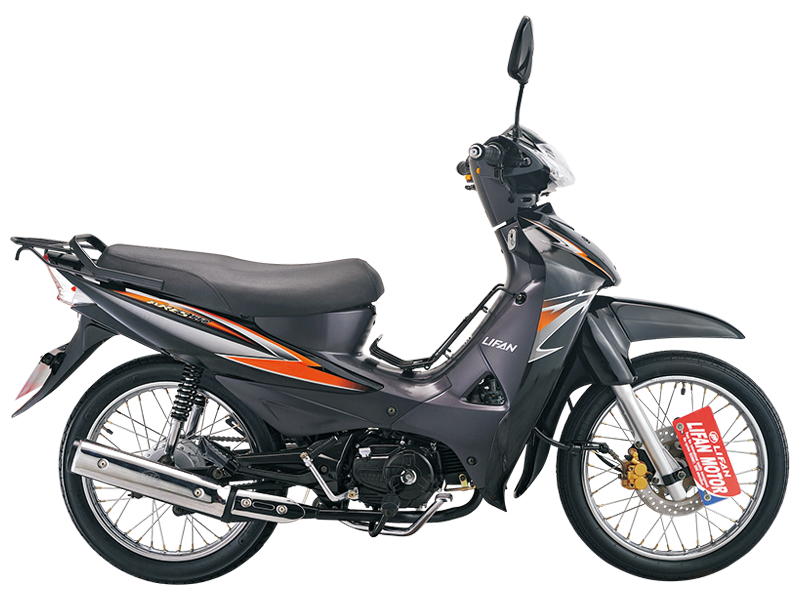

110cc Step-Through Cub Motorcycle
This cub-style motorcycle features a step-through frame design for easy mounting and handling. It is equipped with a 110cc single-cylinder engine, providing efficient fuel consumption for urban commuting.
Technical Specifications
Overview
Reliable Urban Mobility
The 110cc Step-Through Cub Motorcycle is designed for efficient urban commuting and light transportation. Featuring a user-friendly step-through frame and a reliable air-cooled engine, it offers a perfect balance of maneuverability and fuel economy. With practical additions like a rear carrier and a choice of braking systems, it serves as a versatile solution for daily transport needs.
Performance Highlights
Key Performance Metrics
85 km/h
Max Speed
1.6 L/100km
Eco Fuel Consumption
5.2 kW
Max Power
Engine & Transmission
Transmission
- 4 gears
- Auto-clutched
- Chain drive system
- Engine Configuration
- Single-cylinder, air-cooled, four-stroke
- Displacement
- 107 mL
- Bore × Stroke
- 52.4 × 49.5 mm
- Compression Ratio
- 9.0:1
- Max Torque
- 6.9 N.m @ 5000 rpm
- Starting System
- Electric StartKick Start
Chassis & Dimensions
Physical Specifications
| Parameter | Value |
|---|---|
| Overall Dimensions (L×W×H) | 1920×715×1100 mm |
| Wheelbase | 1250 mm |
| Net Weight | 96 kg |
| Seat Height | 750 mm |
| Fuel Tank Capacity | 3.7 L |
Wheels & Braking
Wheel Type
Spoke Wheels
- Braking System
- Front disc or drum; Rear drum
- Tire Dimensions
- Front: 2.50-17 / Rear: 2.75-17
Equipment
Standard Equipment
- Telescopic front forks
- Dual rear shock absorbers
- Step-through frame
- Rear cargo carrier
