Technical Specifications
Overview

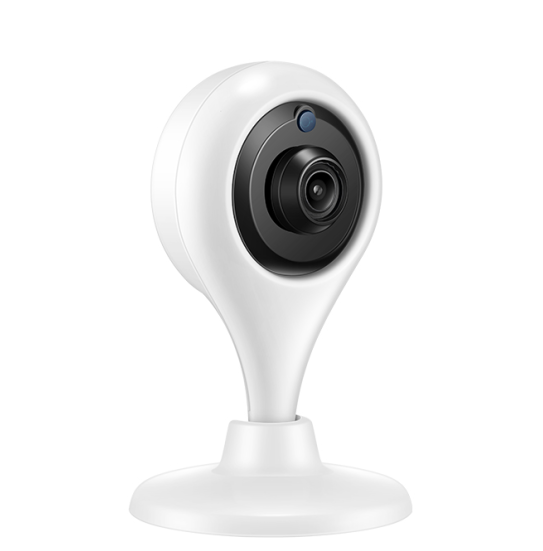

Smart 1080P Indoor Security Solution
This wireless IP security camera delivers high-definition 1080P surveillance with advanced H.265+ video compression for efficient storage. Equipped with AI-powered humanoid detection and two-way audio, it provides proactive security and seamless communication for indoor environments. Its compact design includes a magnetic base for flexible mounting and supports up to 128GB of local storage.

Key Performance Metrics
Key Performance
Imaging & Optics
Sensor & Lens Specifications
| Feature | Specification |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 1936(H) x 1096(V) |
| Lens | 3.6mm @F2.0 |
| Min. Illumination | 0.1 LUX (IR Off), 0 LUX (IR On) |
| Wide Dynamic Range | 72dB |
| Scanning System | Progressive |
Night Vision & Detection
Security Features
- AI Humanoid Detection
- Motion Detection
- 10 PCS IR LEDs
- Auto ICR Day/Night Switch
- 3D Noise Reduction
- BLC / HLC / DWDR Backlight Compensation

Audio & Connectivity
Communication & Network
| Type | Details |
|---|---|
| Audio | Built-in Speaker & Mic (2-way Intercom) |
| Audio Compression | G.711A |
| Video Compression | H.265+ |
| Network Protocol | ONVIF Profile S |
| P2P Service | TUTK P2P + Amazon Web Server |
| Max User Access | 5 Users |
Software & Integration
App & Software Support

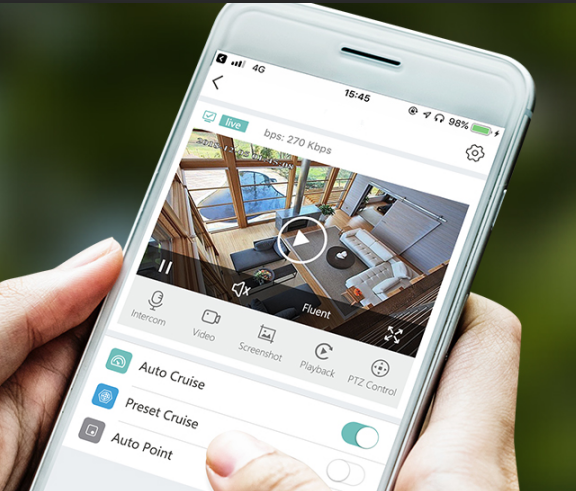

- Mobile App: ACCloud (iOS, Android, iPad)
- PC Software: AVSS (Windows, Mac)
- Features: Video Recording, Screenshot, Playback

Physical & Environmental
Technical Specifications
| Parameter | Value |
|---|---|
| Power Supply | DC 5V / 1A |
| Power Consumption | < 5W |
| Operating Temp | -10°C to +60°C |
| Humidity | 10% - 90% RH |
| Weight | 180g |
| Ingress Protection | IP44 (Indoor Use) |
- Mounting
- Bottom with integrated magnet for easy attachment
