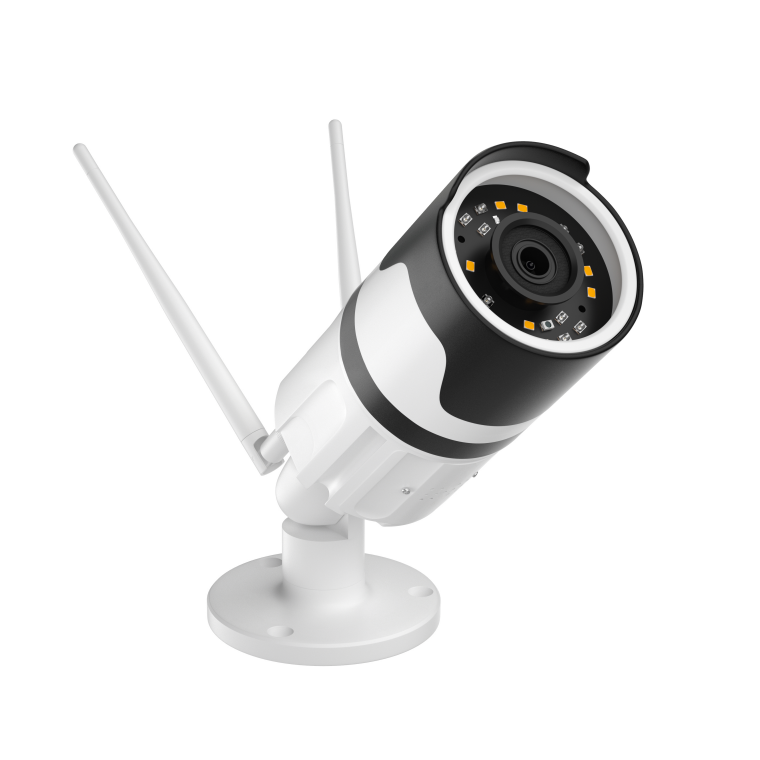

1080p Outdoor Wireless Security Camera with Light
This 1080p outdoor camera provides wireless connectivity and a waterproof design for reliable performance. It features a built-in light for enhanced visibility and clear monitoring.
Technical Specifications
Overview
Advanced 1080p Outdoor Security Solution
This 1080p Full HD wireless security camera provides comprehensive outdoor protection with integrated smart lighting and sound alerts. Featuring AI humanoid detection and three versatile night vision modes, it effectively deters intruders while providing crystal-clear surveillance. The IP66 weatherproof metal housing and dual-antenna WiFi ensure reliable performance and stable connectivity in demanding environmental conditions.
Core Performance
Key Performance Metrics
1,080 p
Resolution
20 m
Night Vision Range
66 IP
Weatherproof Rating
128 GB
Max SD Storage
Imaging & Optics
Imaging Specifications
| Feature | Specification |
|---|---|
| Image Sensor | 1/2.7" Color CMOS |
| Effective Pixels | 1936(H) x 1096(V) |
| Lens | 3.6mm @ F2.0 |
| Viewing Angle | 90°(H), 45°(V), 105°(D) |
| Video Compression | H.265+ / H.265 |
| Wide Dynamic Range | 72dB |
| Min. Illumination | 0.1 LUX (IR Off) / 0 LUX (IR On) |
Night Vision & Lighting
Night Vision Capabilities
- Smart Night Vision: Auto-switches from B&W to Full Color on human motion
- Full Color Night Vision: Continuous color monitoring using 12pcs spotlights
- Infrared Mode: Standard black and white night vision (12pcs IR LEDs)
- Auto ICR Day/Night switching
Smart Features & Alerts
- Intelligence & Security
- Humanoid DetectionMotion DetectionSound & Light AlertTwo-Way AudioP2P TechnologyOTA Firmware PushReal-time Remote View
Connectivity & Storage
Network & Storage
| Type | Details |
|---|---|
| Wireless | WiFi with Dual External Antennas |
| Wired | RJ45 LAN Port |
| Local Storage | TF Card (FAT32), up to 128GB |
| Compatibility | ONVIF Profile S |
| Access | Supports up to 5 simultaneous users |
| Mobile App | ACCloud (iOS/Android) |
| PC Software | AVSS (Windows/Mac) |
Physical & Environmental
Hardware & Environment
| Parameter | Value |
|---|---|
| Housing Material | Metal |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 10% to 90% RH |
| Power Supply | DC 12V / 1A |
| Power Consumption | < 5W |
| Weight | 240g |
Compliance
Certifications
CEFCCRoHSIP66
