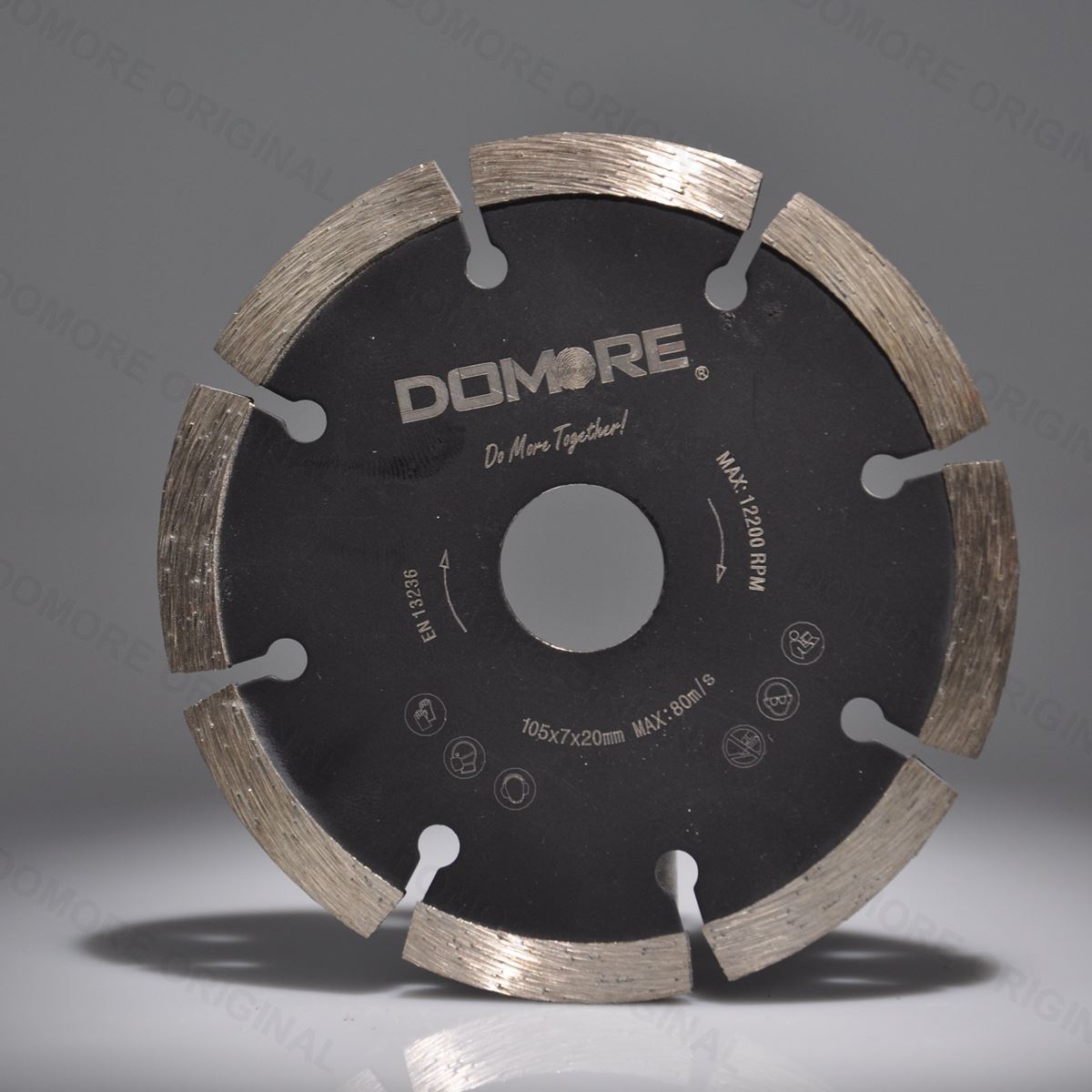

105mm Diamond Saw Blade for Tile and Stone
This diamond saw blade is designed for cutting tile, ceramic, porcelain, and stone. It features a segmented rim for efficient cutting and a durable steel core for long life.
Technical Specifications
Product Overview
High-Performance Cutting Technology
These diamond saw blades are manufactured using advanced hot-pressed technology, ensuring superior density, sharpness, and an extended operational lifespan. Designed for professional use, they offer enhanced safety and cutting efficiency compared to standard sintered discs. This blade is an ideal solution for precision cutting of tile, ceramic, porcelain, and stone materials.
Technical Specifications
Maximum RPM
12,200 RPM
Max Speed
Safety Compliance
EN 13236
- Max Operating Speed
- 80 m/s
- Cutting Method
- Wet CuttingDry Cutting
Size Availability
Available Dimensions
| Outer Diameter | Segment Dim (T x H x L) | Segment Number |
|---|---|---|
| 4” (105mm) | 1.8x7.0x35 | 6/7/8 |
| 4.3” (110mm) | 1.9x7.0x32 | 9 |
| 4.5” (115mm) | 1.9x7.0x38 | 8 |
| 5” (125mm) | 1.9x7.0x33 | 9 |
| 6” (150mm) | 1.1x7.0x35 | 12 |
| 7” (180mm) | 2.4x7.0x39 | 14 |
| 8” (200mm) | 2.4x7.0x39 | 14 |
| 9” (230mm) | 2.4x7.0x34 | 16/18 |
| 10” (250mm) | 3.0x7.0x37 | 16/18 |
| 12” (300mm) | 3.2x8.0x35 | 22 |
| 14” (350mm) | 3.2x8.0x40 | 24 |
