Technical Specifications
Overview
Commercial LiFePO4 Energy Storage Solution
This 100kWh-class LiFePO4 Battery Energy Storage System is engineered for high-demand business and commercial applications. It provides a robust and scalable solution for integrating renewable energy, managing peak loads, and ensuring reliable backup power. Utilizing advanced Lithium Iron Phosphate technology, the system offers superior safety, a long cycle life, and efficient energy management for modern power infrastructures.
Core Performance
Key Performance Metrics
102.4 kWh
Total System Energy
1,000 Ah
Rated Capacity
51.2 V
Nominal Voltage
6,000 Cycles
Cycle Life (@80% DOD)
Battery Technical Specifications
Battery Detailed Parameters
| Parameter | Value |
|---|---|
| Item Number | ESS-102.4KWH |

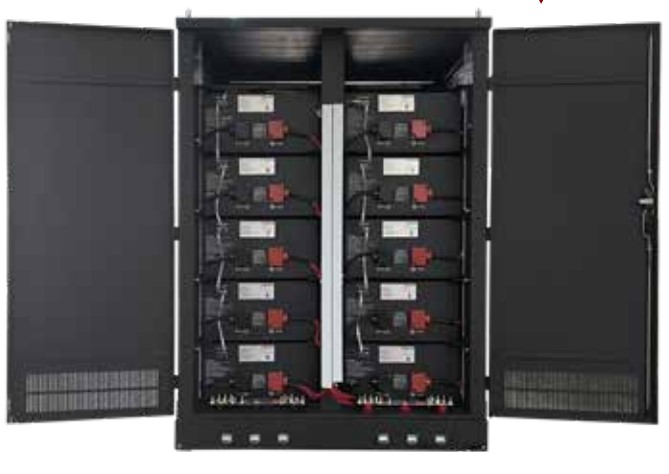

| Battery Configuration | 5.12KWH * 20PCS (Modular) |
| Cell Specification | 3.2V 50Ah (320 PCS) |
| Rated Charge Voltage | 56.0V DC |
| Rated Charge Current | 500A |
| Discharge Voltage Range | 42V - 54V |
Connectivity & Management
- Communication Protocols

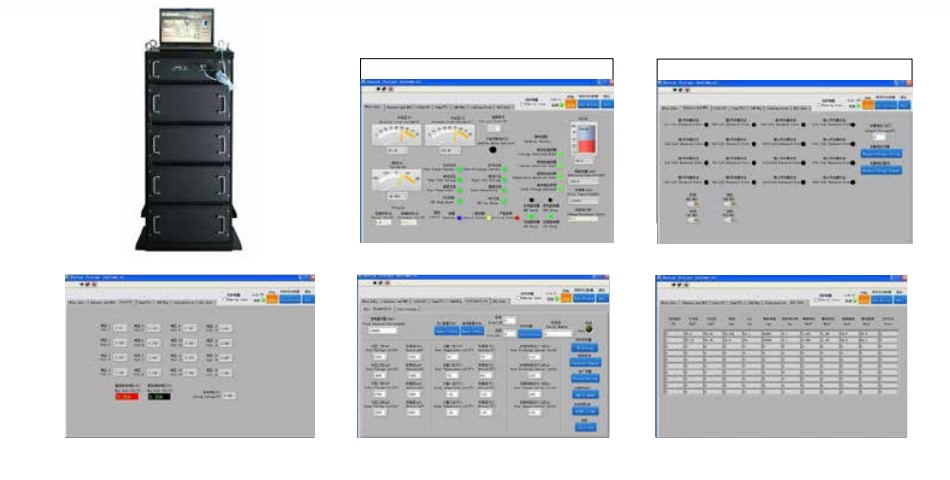

- RS485CANPC Monitor SupportLCD Interface
Environmental & Safety
Operating Temperature
- Charge Temperature: 0 ~ 45℃
- Discharge Temperature: -20 ~ 60℃
System Features
System Capabilities
Pure Sine WaveModular DesignScalableBMS IntegratedPeak ShavingRenewable Integration
Physical Characteristics
- Module Dimensions
- 440 * 400 * 132 mm (per module)
- Module Weight
- 45 kg
