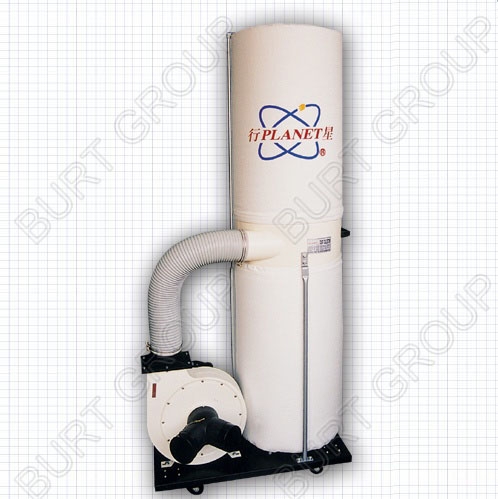

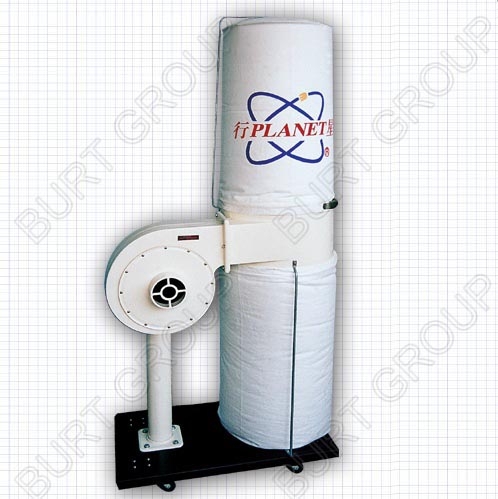

1 HP Dust Collector with 370mm Bag
This 1 HP dust collector is designed for woodworking applications. It features a robust blower and a large-capacity filter bag for effective dust removal.
Technical Specifications
Overview
High-Efficiency Dust Collection
This 1 HP dust collector is designed for effective dust management in professional woodworking environments. Featuring a robust 750W TEFC motor and a high-capacity filtration bag, it ensures a cleaner and safer workspace by efficiently extracting debris. The unit is compact and mobile, making it an ideal solution for small to medium-sized workshops requiring reliable air quality control.
Performance Metrics
Performance Specifications
750 W
Motor Power
500 CFM
Air Speed (50Hz)
600 CFM
Air Speed (60Hz)
Technical Details
Technical Specifications
| Feature | Specification |
|---|---|
| Motor Type | TEFC |
| Fan Diameter | 230 mm |
| Inlet Diameter | 100 mm |
| Bag Diameter | 370 mm |
| Bag Height | 640 mm |
| Bag Volume | 0.057 m³ |
Logistics
Logistics and Packaging
- Net Weight: 27 kg
- Gross Weight: 30 kg
- Packing Dimensions: 670 x 420 x 450 mm
- Capacity per 20ft Container: 210 units
Certifications
- Compliance & Certifications
- CEEMCCSAIEC
