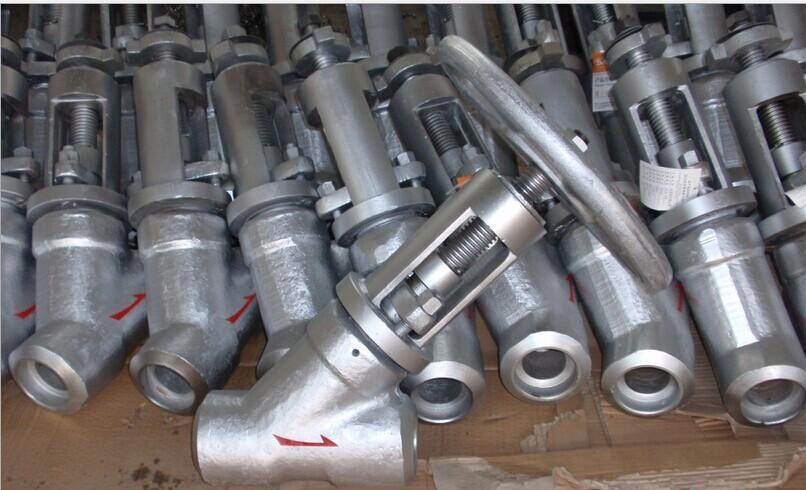

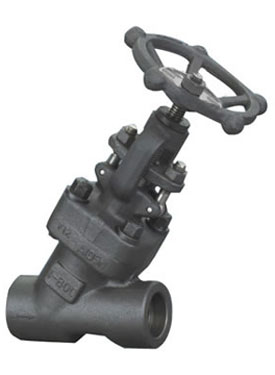

Y-Pattern Straight Through Globe Valve
The Y-pattern globe valve is designed for applications needing minimal pressure drop and high flow capacity. Its body allows a streamlined flow path, which reduces turbulence and erosion.
Technical Specifications
Product Overview
High-Performance Y-Pattern Globe Valve
These forged steel globe valves are engineered for maximum service life and operational dependability in demanding industrial environments. The Y-pattern straight-through design significantly minimizes pressure drop and turbulence, ensuring high flow capacity while maintaining precise throttling and on-off control. Available with multiple bonnet types and end connections, these valves are highly adaptable for steam, oil, gas, and water service requirements.
Technical Metrics
Size Range
15 mm
Minimum DN
50 mm
Maximum DN
Pressure Rating
- ANSI 150lb to 2500lb
- PN 1.0 to PN 320
Construction & Materials
Bonnet Options
BoltedWeldedPressure Sealed
- Available Materials
- A105LF2F9F11F22F304/LF316/LF321F51Alloy Steel
Industry Standards
Standards Compliance
| Category | Applicable Standards |
|---|---|
| Design | API 602, ASME B16.34, BS 5352, DIN 3352 |
| Face to Face | ASME B16.10, EN 558, DIN 3202 |
| Inspection & Test | API 598, DIN 3202 |
