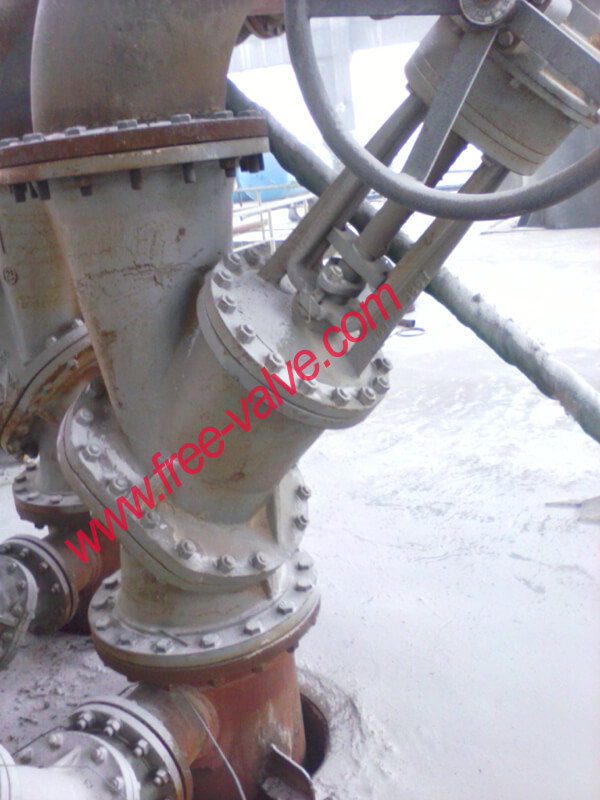

Y-Pattern Slurry Valve for Abrasive Materials
This Y-pattern slurry valve is designed for abrasive materials, offering exceptional durability. Divided into left and right parts with a replaceable seat, it provides reliable control of slurry in industries like alumina, metallurgy, and mining.
Technical Specifications
Product Overview
Industrial Slurry Control
This Y-pattern slurry valve is engineered for demanding applications involving abrasive materials, high pressure, and erosion-prone environments. It features a split-body geometric design optimized for flow efficiency, ensuring minimal internal turbulence. With hardened sealing surfaces and anti-corrosion protection, this valve delivers long-term reliability in critical mining, chemical, and metallurgical processing.
Technical Specifications
- Size Range
- DN50 to DN500 (NPS2 to NPS20)
- Pressure Class
- Class 150 to Class 600
- Maximum Temperature
- 425 ℃
- Connection Standards
- ASME B16.5GB/T9113Flange
Construction & Materials
- Body Materials
- Carbon SteelStainless Steel
- Sealing Surface
- Alloy (Full Stellite or Tungsten Carbide overlay)
Performance Features
Key Capabilities
- Abrasion and erosion resistant
- Anti-scabbing performance
- Replaceable valve seat
- Rotation-resistant stem
- Anti-washing internal protection
Operating Modes
PneumaticManualElectric
Applications
- Target Industries
- AluminaMetallurgyChemical FertilizerMiningPaper-making
