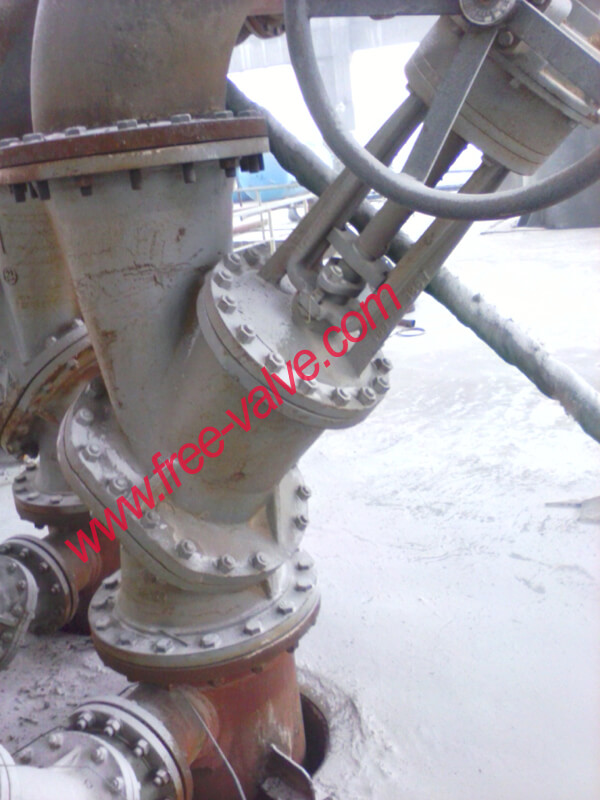

Y-Pattern Slurry Globe Valve
This Y-pattern slurry valve is designed for abrasive material applications. Its two-part body allows for easy replacement of the valve seat.
Technical Specifications
Product Overview
High-Performance Y-Pattern Slurry Valve
This Y-pattern slurry globe valve is specifically engineered for high-pressure and highly abrasive environments such as mining, metallurgy, and chemical fertilizer processing. Its unique design features a replaceable seat configuration and a geometric body optimized for fluid flow, ensuring minimal internal erosion. The valve incorporates advanced anti-corrosion protection plates and a rotation-resistant stem mechanism to guarantee precise linear motion and extended operational life under demanding industrial conditions.
Technical Specifications
Operating Types
- Manual
- Pneumatic
- Electric
- Available Sizes
- DN50 to DN500 (NPS 2 to NPS 20)
- Pressure Class
- Class 150Class 300Class 600
- Maximum Operating Temperature
- 425 °C
- Connection Type
- Flange
Materials and Standards
Body Materials
- Carbon Steel
- Stainless Steel
Standards Compliance
| Category | Standard |
|---|---|
| Design | ASME B16.34 |
| Flange | ASME B16.5, GB/T9113 |
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, API609 |
- Sealing Surface Material
- Alloy (Full Stellite or Tungsten Carbide overlay)
Application
Suitable Industries
MiningMetallurgyAluminaChemical FertilizerPaper-making
