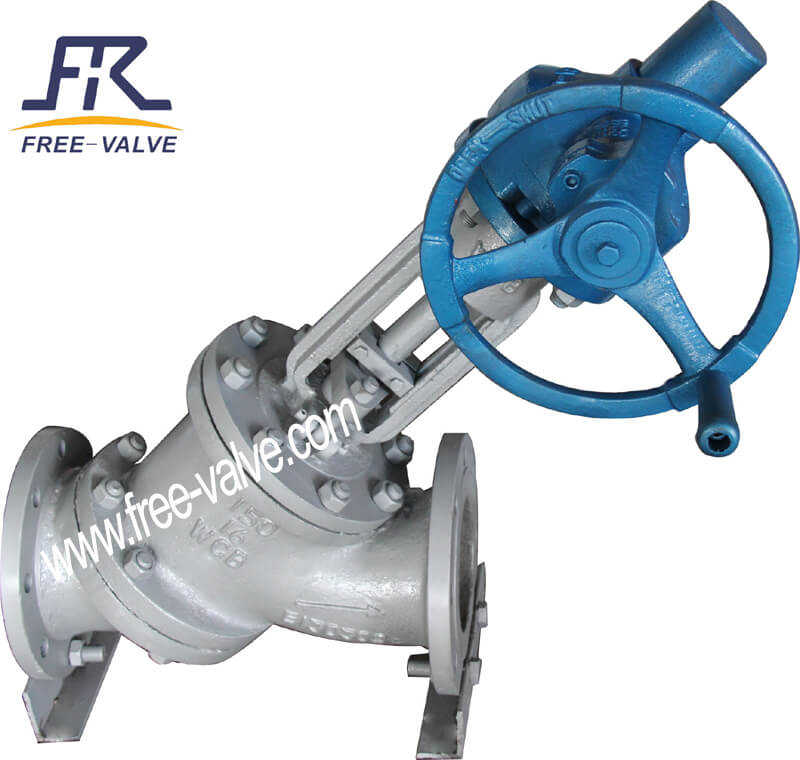

Y-Pattern Slurry Globe Valve
This Y-pattern slurry globe valve is designed for controlling or stopping the flow of slurry. It is suitable for use with abrasive materials and is commonly used in the alumina, metallurgy, chemical fertilizer, and mining industries.
Technical Specifications
Product Overview
Industrial Y-Pattern Slurry Globe Valve
This high-performance Y-type slurry valve is engineered specifically for demanding applications involving abrasive materials in industries such as mining, metallurgy, and chemical fertilizer production. Featuring a unique geometric body design optimized through finite element analysis, the valve minimizes turbulence and erosion while offering superior resistance to scabbing. With a field-replaceable seat design and high-hardness alloy sealing surfaces, this valve ensures long-term reliability and ease of maintenance in harsh industrial environments.
Technical Specifications
Body Materials
- Carbon Steel
- Stainless Steel
- Size Range
- DN50-DN500 (NPS2-NPS20)
- Pressure Range
- Class 150Class 300Class 600
- Max Working Temperature
- 425 ℃
Design & Compliance
Compliance Standards
| Category | Standard |
|---|---|
| Design | ASME B16.34 |
| Flange | ASME B16.5 / GB/T9113 |
| Pressure Test | GB/T13927 / API598 |
| Face to Face | GB/T12221 / API609 |
Actuation Options
Industry Applications
- Primary Applications
- AluminaMetallurgyChemical FertilizerMiningPaper-making
