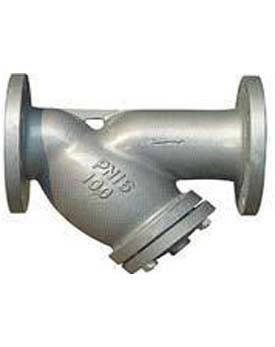

Y-Pattern Pipeline Strainer
This Y-pattern pipeline strainer is a filtration device used in pipelines to remove solid impurities from liquids or gases. The strainer is designed to protect pumps, meters, control valves, and other sensitive equipment from damage caused by debris in the flow.
Technical Specifications
Product Overview
High-Performance Y-Pattern Pipeline Strainer
The Y-Pattern Pipeline Strainer is a robust filtration device engineered to remove solid impurities from liquid and gas flows. Its specialized design effectively protects sensitive downstream equipment such as pumps, meters, and control valves from potential damage caused by debris. Built for durability in industrial environments, this strainer ensures optimal system performance and longevity across diverse sectors including coal mining, paper production, and sugar processing.
Technical Standards
Design & Compliance
| Reference | Standard |
|---|---|
| Design | ASME B16.34 |
| Face to Face | ASME B16.10 |
| End Connection | ASME B16.5 |
| Inspection & Test | API 598 |
Technical Specifications
- Size Range
- 2" - 14" (DN50 - DN350)
- Pressure Rating
- ANSI 150lb - 300lb
Material Composition
- Body Materials
- Carbon SteelStainless SteelAlloy SteelDuplex Steel
- Screen Materials
- SS304SS316
Applications
Industry Applications
- Coal mining
- Paper-making
- Sugar-making
