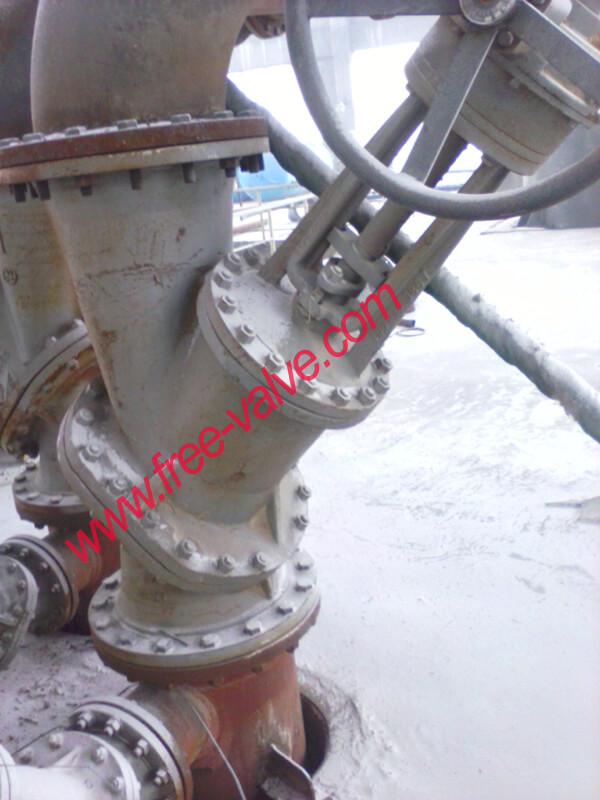

Y-Pattern Angle Valve for Slurry
This Y-pattern angle valve is designed for controlling or stopping slurry flow in various industries. Its design incorporates a seat between left and right parts, connected by bolts, facilitating easy valve seat replacement.
Technical Specifications
Product Overview
High-Performance Slurry Control
This Y-pattern angle valve is engineered specifically for demanding industrial applications involving abrasive slurries and high-pressure media. Its unique Y-type body design utilizes finite element analysis to optimize flow paths, significantly reducing erosion and pressure drop. Featuring replaceable seating surfaces reinforced with stellite or tungsten carbide, this valve ensures longevity and reliable performance in sectors such as mining, metallurgy, and chemical processing.
Technical Specifications
Connection Standards
- ASME B16.5
- GB/T 9113
- Pressure Range
- Class 150Class 600
- Size Range (NPS)
- 2 - 20 inches
- Maximum Operating Temperature
- 425 °C
Design and Materials
Operation Methods
PneumaticManualElectric
- Body Material
- Carbon SteelStainless Steel
- Sealing Surface Material
- Alloy (Full Stellite or Tungsten Carbide overlay)
Industry Applications
Primary Industries
- Alumina
- Metallurgy
- Chemical Fertilizer
- Mining
- Paper-making
