XLPE Insulated Steel Wire Armoured Power Cable
Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
Technical Specifications
Product Overview
Robust Power Transmission Solution
This Cu/XLPE/SWA/PVC power cable is engineered for reliable performance in demanding fixed installations. Rated at 0.6/1 kV, it combines a high-temperature resistant XLPE insulation with galvanized steel wire armour to provide exceptional mechanical protection. This combination ensures durability for underground, indoor, and outdoor power network applications where environmental stressors are present.
Technical Specifications
Rated Voltage
0.6 kV
Lower Limit
1 kV
Upper Limit
- Insulation Material
- XLPE (Cross-linked Polyethylene)
- Rated Insulation Temperature
- 90 OC
Construction Details

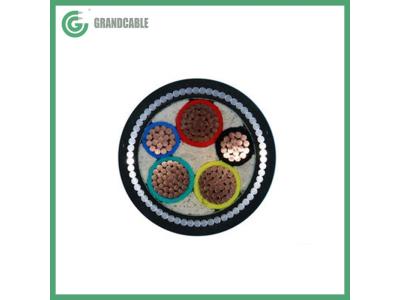

Cable Components
- Compact stranded copper conductor (Cl.2)
- XLPE insulation
- PVC inner bedding
- Galvanized steel wire armour (SWA)
- PVC or FR-PVC type ST2 outer sheath
- Compliance Standards
- IEC 60228IEC 60502-1
Application
Deployment Environments
- Underground
- Outdoor
- Indoor
- Cable ducting
- Power networks
