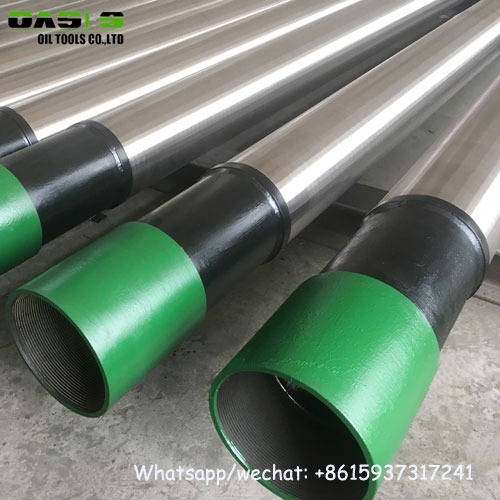

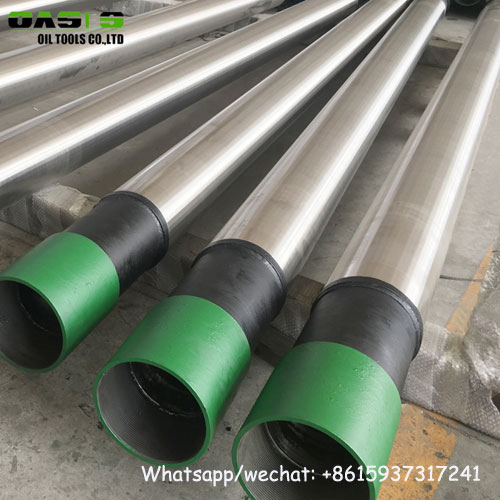

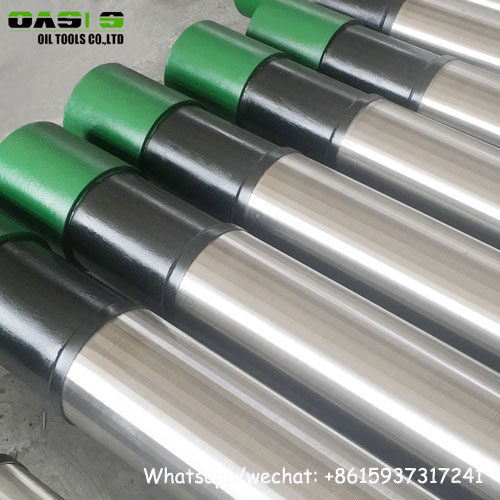

Wire Wrap Pipe Base Well Screens for Deep Well Drilling
These wire wrap pipe base well screens are designed for deep well drilling. They provide efficient filtration and prevent sand or gravel from entering the well.
Technical Specifications
Product Overview
High-Performance Deep Well Screens
These wire wrap pipe base well screens are engineered specifically for deep well drilling in water, oil, and gas exploitation. They feature a robust dual-layer design consisting of a perforated base pipe wrapped in a precision Johnson-type screen jacket. This construction provides exceptional structural integrity and efficient sand control, ensuring long-term reliability and optimal flow rates in demanding subsurface environments.
- Key Benefits
- High QualitySand ControlCorrosion ResistanceHigh Strength
Technical Construction
Design Structure
- Dual-layer or multilayer screen configuration
- Perforated base pipe for internal support

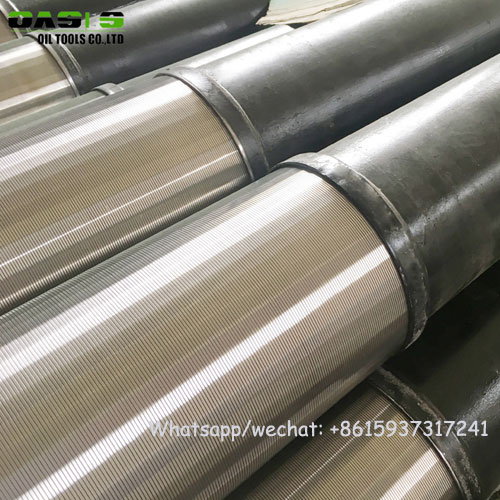

- Outer Johnson-type wire wrap screen jacket
- Screen jacket and base pipe welded with coupling
- Base Pipe Type
- Seamless pipe, welded pipe, or API casing pipes
Material Specifications
- Available Materials
- 201304304L316316LQ235J55
Connection & Installation
Connection Types
STC ThreadedLTC ThreadedBTC ThreadedWeld Collar
Applications
Primary Applications
- Water well drilling
- Oil exploitation
- Gas well filtering
- Environmental monitoring wells
- Industrial fluid extraction
Packaging
- Packaging Details

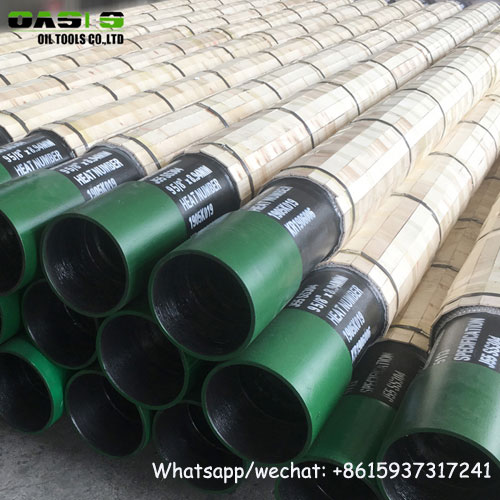

- Bubble bags and wooden pieces used to protect Johnson screens during transport
