Wi-Fi Smart Garden Water Timer with Soil Moisture Sensor
This automated irrigation solution features a smart water timer that connects to a garden hose. Users can schedule and control watering cycles remotely via Wi-Fi, and the system adjusts schedules based on real-time soil hydration levels from the included sensor.
Technical Specifications
System Overview
Smart Irrigation Control
This Wi-Fi enabled garden water timer system provides an automated solution for efficient garden maintenance. By utilizing a dedicated gateway and soil moisture sensor, it offers real-time monitoring and cloud-based control through a mobile application. The system supports both standard irrigation and misting modes, ensuring plant health while conserving water through integrated flow analysis.

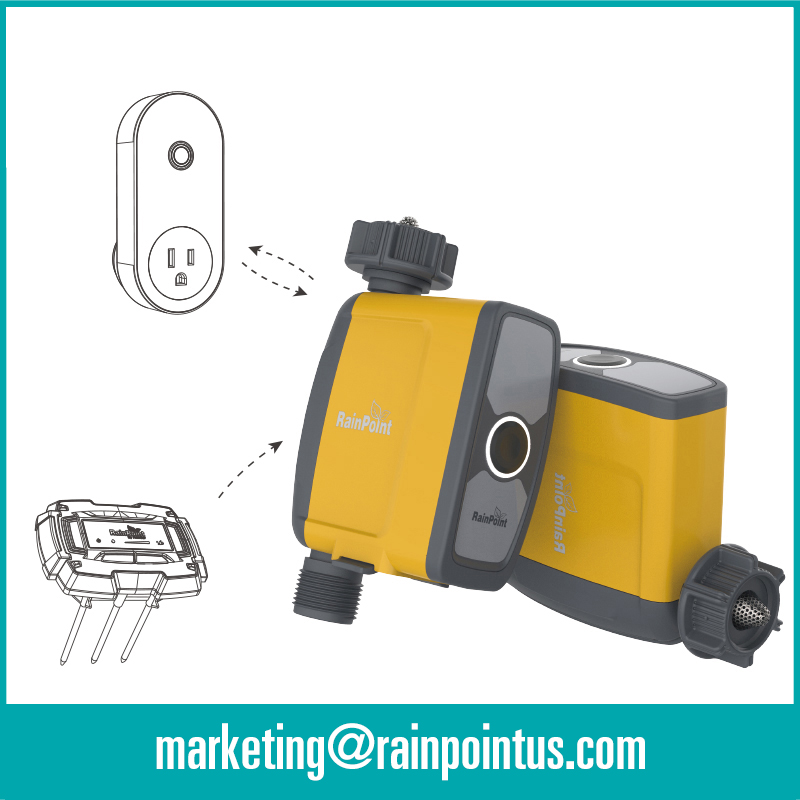

Included Components
- Smart watering timer (TTV103WRF)
- Wi-Fi gateway (TWG004WRF)
- Soil moisture sensor (TCS005FRF)
Technical Specifications
Key Performance Metrics
60 m
Max Transmission Distance
35 L/min
Max Flow Rate
5 bar
Working Pressure
Environmental Ratings
IP54 WaterproofDust Proof
Operating Conditions
| Parameter | Value |
|---|---|
| Working Temp | 3°C - 50°C |
| Pressure Range | 0.5bar - 5bar |
| Battery Life | Approx. 1 Year |
- Installation Compatibility
- 3/4" Faucet1" FaucetBSP ThreadNH Thread2.4GHz Wi-Fi
Operational Modes
Working Modes
- Irrigation Mode: Daily schedule, max 3 times/day
- Misting Mode: 5s to 59s duration, up to 15min interval
- Smart Automation: Integrated with Tuya cloud functions
