Well Screen Filter Tube with Slotted Pipe
This well screen filter tube is engineered with precision slotting for effective water filtration. Its durable construction ensures long-lasting performance and reliable sand control in water well applications.
Technical Specifications
Product Overview
High-Efficiency Well Screen Filter Tube

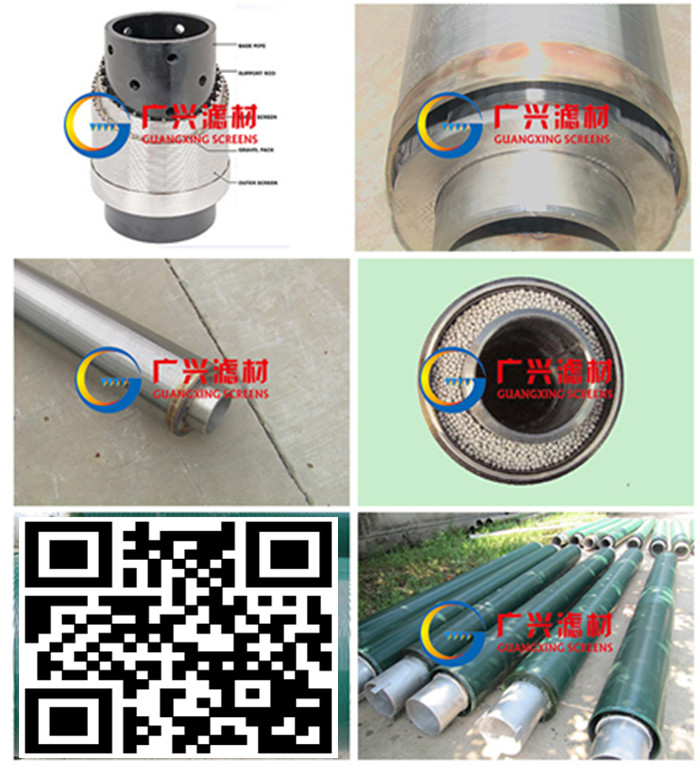

This stainless steel wire-wrapped pipe is engineered for superior water well filtration, featuring a precision-welded V-shaped profile wire design. It offers a significantly larger open area compared to conventional slotted pipes, which reduces frictional head loss and improves overall tube well efficiency. Designed for durability and performance, it provides excellent sand control and energy savings of up to 25% during pumping operations.
Technical Highlights
Performance Metrics
25 %
Potential Power Saving
0.05 mm
Minimum Slot Opening
2 x
Open Area vs. Conventional
Material Specifications
- Available Materials
- Grade 302Grade 304Grade 304LGrade 316Grade 316L
Design & Construction
Support Rod Profiles
- Round wire
- Triangular wire
- Trapezoid wire
- Slot Configuration
- Continuous V-shaped openings
- Filtration Direction
- From outside to inside
Physical Dimensions
Standard Lengths
- 1.00 m
- 5.85 m
Installation & Connectivity
Connection Types
- Welding
- Threaded male/female coupling
Performance Features
Operational Advantages
Heat-resistingAnti-corrosiveAnti-cloggingEnergy SavingHigh Open Area
