Welding Power Cable
Welding power cables efficiently transmit power in welding applications. Constructed with flexible, stranded copper conductors, they are insulated to withstand heat, abrasion, and chemicals.

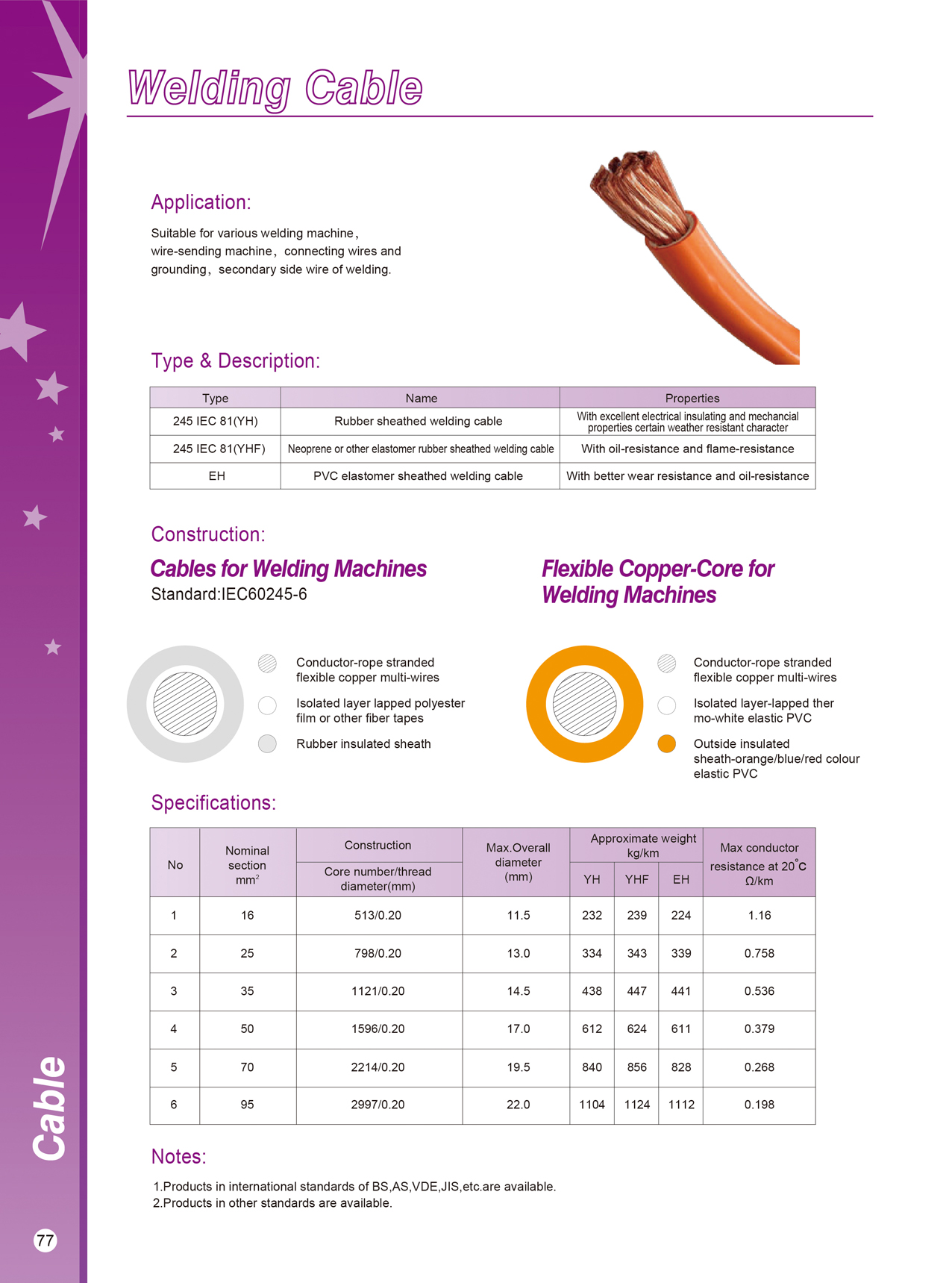

Technical Specifications
Product Overview
Professional Grade Welding Power Transmission
These high-performance welding cables are engineered for reliability and efficient power delivery in demanding industrial environments. Featuring flexible, rope-stranded pure copper conductors, they ensure maximum conductivity and maneuverability during arc, MIG, and TIG welding operations. With specialized insulation options available, these cables provide excellent resistance to abrasion, oils, flame, and extreme temperatures, meeting strict international safety standards.
Standards and Compliance
- Industry Standards
- IEC60245-6BSASVDEJIS

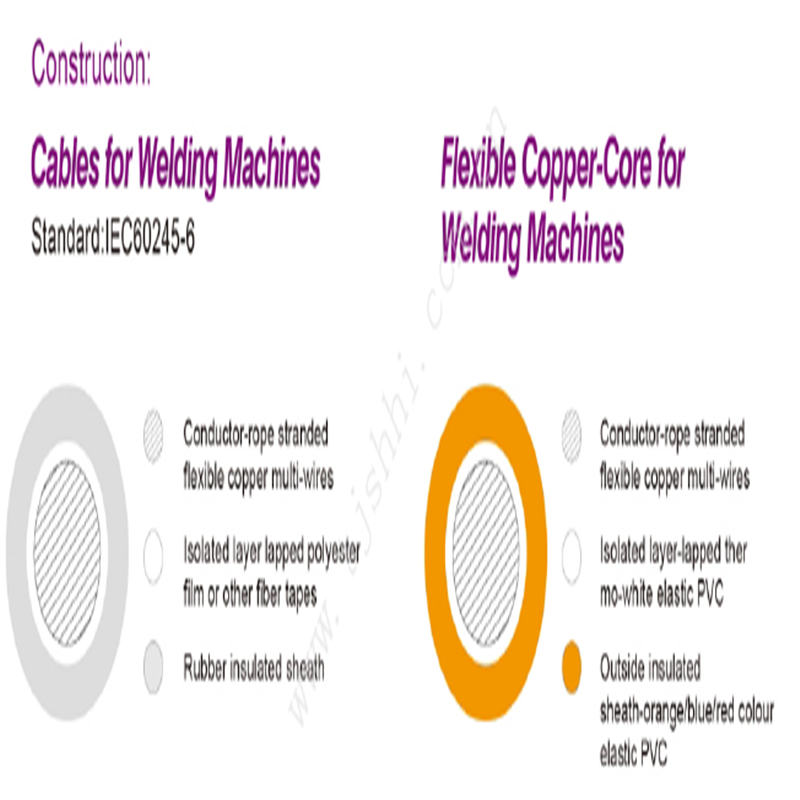

Technical Construction
Available Sheath Materials
RubberNeoprenePVC Elastomer
- Conductor Material
- Stranded flexible multi-wire copper
Technical Specifications
Cable Specifications Table
| Nominal Section (mm²) | Max Diameter (mm) | Max Resistance 20°C (Ω/km) |
|---|---|---|
| 16 | 11.5 | 1.16 |
| 25 | 13.0 | 0.758 |
| 35 | 14.5 | 0.536 |
| 50 | 17.0 | 0.379 |
| 70 | 19.5 | 0.268 |
| 95 | 22.0 | 0.198 |
Applications
Typical Applications
- Arc, MIG, and TIG welding
- Welding machine power supply
- Secondary side welding connections
- Wire-sending machinery
- Electrical grounding
