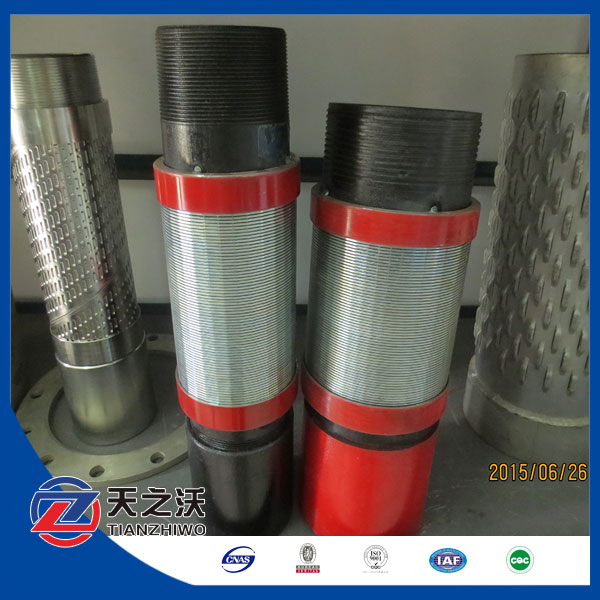

Wedge Wire Water Well Screen Pipe
Water well screen pipe constructed with wedge wire is designed for efficient filtration. It allows optimal water intake while preventing sand and gravel from entering the well.
Technical Specifications
Product Overview
High-Performance Wedge Wire Well Screen

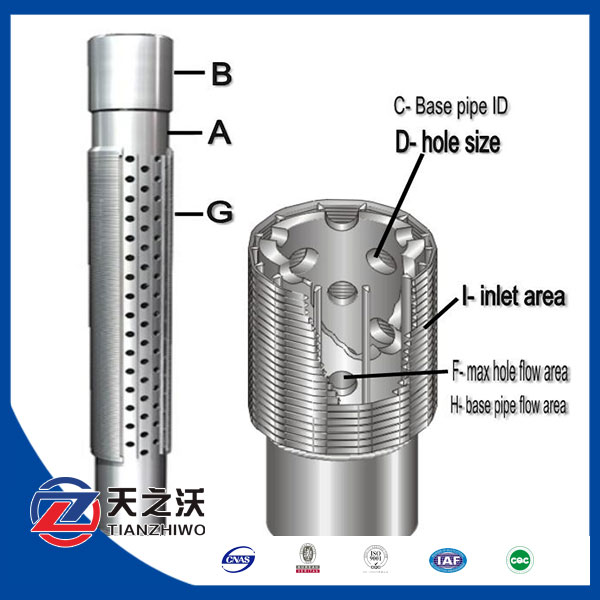

This precision-engineered wedge wire screen pipe features a robust structure composed of support rods and V-shaped profile wires to maximize open area and flow efficiency. Designed for water, oil, and gas well applications, the screen provides excellent sand control, anti-corrosive properties, and structural reliability. Its customizable slot dimensions and durable construction ensure long-lasting performance even in demanding geological conditions.
Technical Specifications
Dimensions
25 mm-1200mm
Diameter Range
6 m
Max Length
Available Slot Sizes
- 0.10mm
- 0.15mm
- 0.20mm
- 0.25mm
- 0.30mm
- Up to 6.00mm
Key Characteristics
Heat-resistingAnti-corrosiveHigh open areaAccurate slot dimension
Component Specifications
| Component | Width Range (mm) | Height Range (mm) |
|---|---|---|
| Wedge Wire | 1.50 - 3.70 | 2.20 - 7.00 |
| Support Rod | 2.30 - 3.70 | 2.70 - 6.30 |
Material Properties
- Materials
- Galvanized Low Carbon SteelStainless Steel 304Stainless Steel 316
