Wedge Wire Water Well Sand Control Screens
Wedge wire screens offer effective sand control for water wells. Their design ensures efficient water flow while preventing the entry of sand and gravel.
Technical Specifications
Product Overview
High-Performance Sand Control Screens

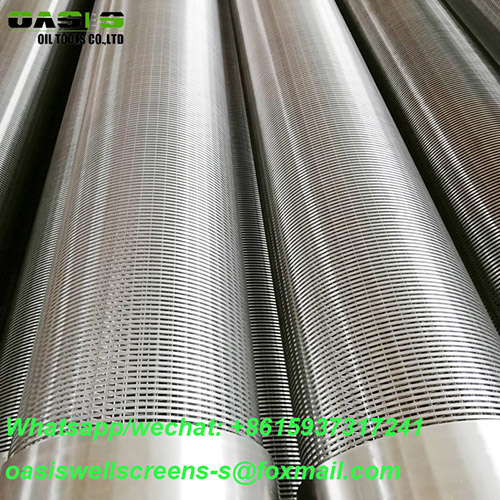

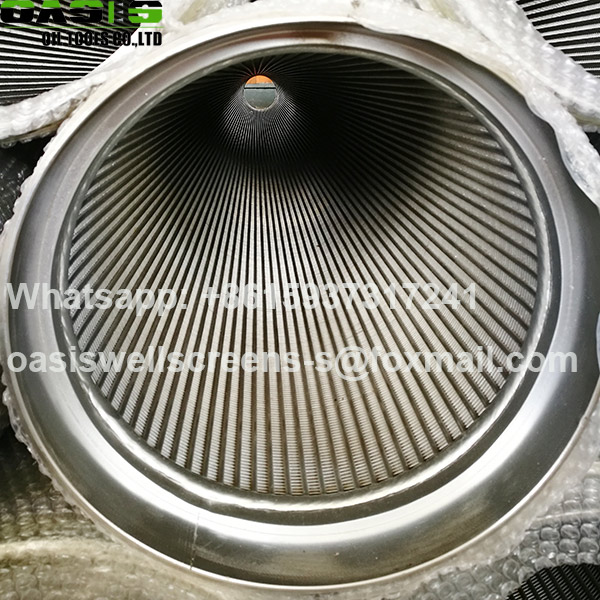

These wedge wire water well screens are engineered for superior sand control and maximized well productivity. Constructed by fusion-welding a V-shaped profile wire around longitudinal support rods, the design creates continuous slot openings that allow fluids to enter freely while effectively keeping sand and gravel out. This robust construction ensures high structural strength and durability in demanding water, oil, and gas well environments.
Technical Specifications
Open Area
60 %
Max Open Area
- Slot Size Range
- 0.1 mm
- Maximum Slot Size
- 3 mm
Design & Construction
- Manufacturing Process
- Fusion-welded V-shaped profile wire around longitudinal support rods
- Wire Profile
- V-shaped or wedge-shaped wire
- Key Benefits
- Continuous slot openingSelf-cleaning actionReduced cloggingHigh structural strengthMaximized flow rates
Applications
Typical Use Cases
- Water wells
- Oil and gas production
- Sand control
- Mineral processing
- General industrial filtration
