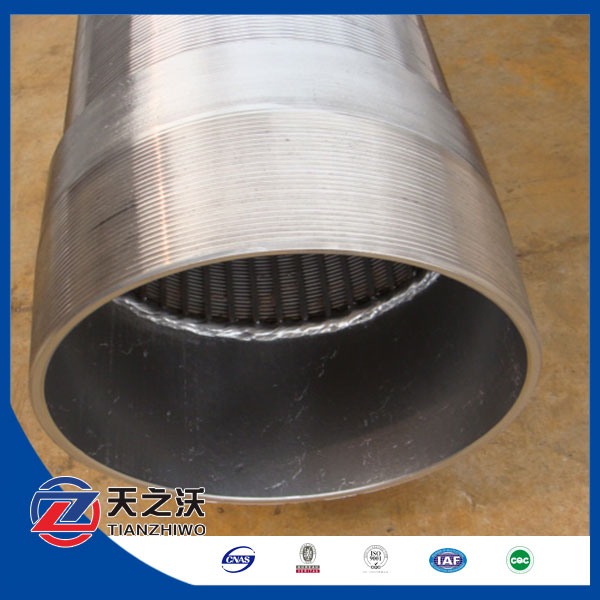

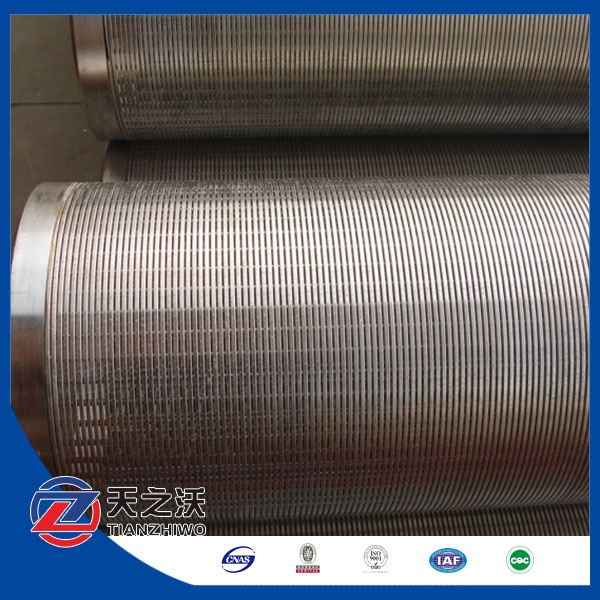

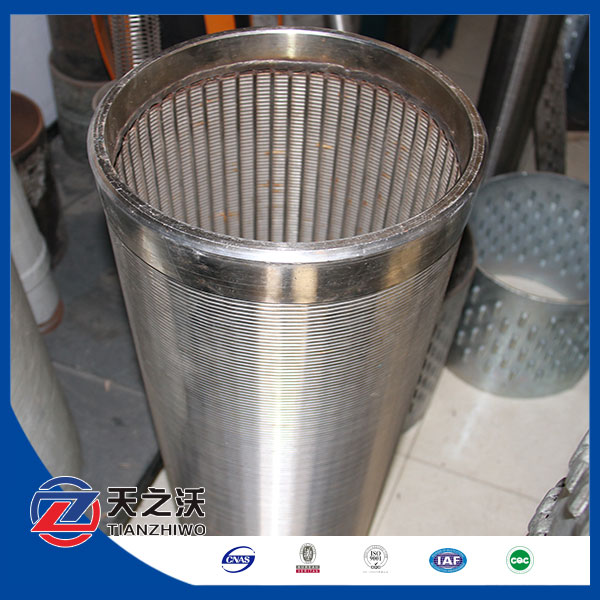

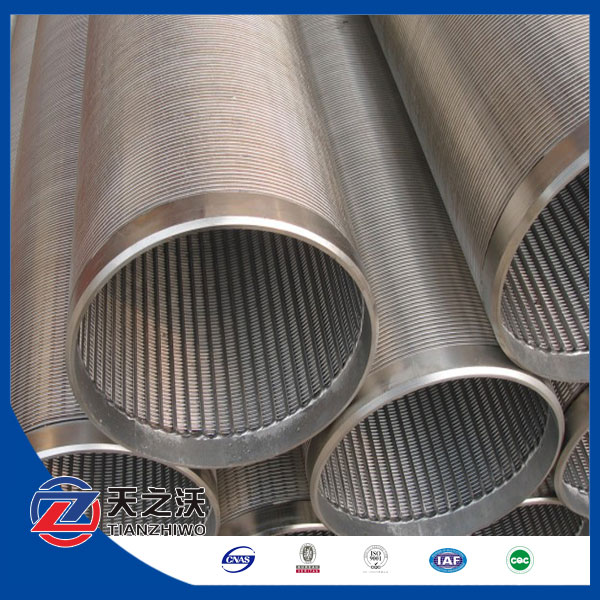

Wedge Wire Screen with Rod Support
These wedge wire screens offer robust filtration and separation with a rod support base. Their design ensures structural integrity and efficient flow in various industrial applications.
Technical Specifications
Product Overview
High-Performance Wedge Wire Filtration
The Wedge Wire Screen with Rod Support is a precision-engineered filtration solution designed for maximum durability and flow efficiency. Constructed from high-quality profile wire welded to longitudinal support rods, it features a continuous slot design that minimizes clogging and ensures consistent particle retention. These screens are built to withstand demanding industrial environments, offering excellent heat resistance and anti-corrosive properties for long-term reliability.
Technical Specifications
Dimensional Range
6 m
Max Length
1,200 mm
Max Diameter
25 mm
Min Diameter
Component Dimensions
| Component | Width Range (mm) | Height Range (mm) |
|---|---|---|
| Wedge Wire | 1.50 - 3.70 | 2.20 - 7.00 |
| Support Rod | 2.30 - 3.70 | 2.70 - 6.30 |
- Available Materials
- Galvanized Low Carbon (LCG)Stainless Steel 304Stainless Steel 316
- Slot Size Range
- 0.10mm to 6.00mm
Applications
Primary Applications
- Water Wells
- Oil & Gas Extraction
- Mineral Processing
- Fluid Filtration Systems
- Architectural Facades
Key Features
Performance Benefits
High Open AreaHeat-ResistantAnti-CorrosiveClog-ResistantHigh Structural Integrity
