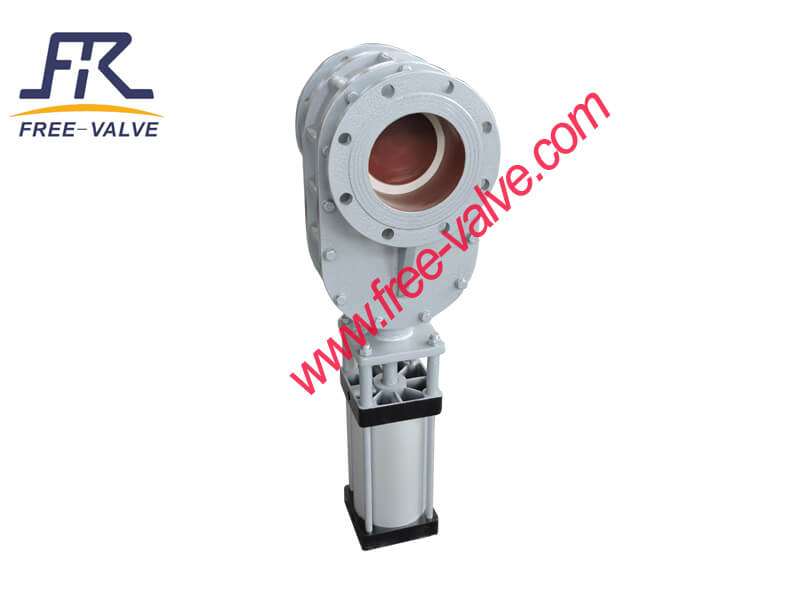

Wear-Resistant Ceramic Double Disc Gate Valve
This pneumatic gate valve is designed for feeding and dumping dry powder in transport pipelines. It utilizes toughened ceramic for shut-off and wear resistance, incorporating pressure self-sealing and auto-rotating valve discs for enhanced sealing and prolonged operational life.
Technical Specifications
Product Overview
High-Performance Ceramic Gate Valve
This pneumatic ceramic double disc gate valve is engineered for the reliable handling of dry powders and abrasive materials in demanding industrial environments. Utilizing advanced structural ceramics, the valve offers superior resistance to wear, erosion, and flushing. Its innovative double-disc design, combined with spring-loaded self-sealing and automatic disc rotation, ensures long-term performance and prevents dust clogging during frequent operations.
Technical Specifications
Pressure Class
Class 150PN6PN10
Temperature Range
0 °C
Min Temperature
200 °C
Max Temperature
Standards Compliance
- Flange: ASME B16.5, GB/T9113
- Pressure Test: GB/T13927, API598
- Face to Face: GB/T12221, API609
- Size Range
- NPS 4 - NPS 12DN 100 - DN 300
Operating & Design
- Operating Type
- Pneumatic
- Sealing Material
- Structural Engineering Ceramics
Applications
Recommended Industries
- Power plant ash handling systems
- Cement industry (dry powder conveying)
- Dressing works (material selection and conveying)
