Waterproof Cable Gland for Double Locked Metal Cables
This waterproof joint is designed for double locked metal cables. It provides a secure and sealed connection, preventing moisture and contaminants from entering the cable termination point.
Technical Specifications
Product Overview
Professional Grade Cable Protection
This waterproof joint is engineered specifically for use with double-locked metal cables, ensuring a secure and reliable connection in challenging environments. The robust metallic construction provides excellent mechanical strength and environmental sealing, effectively preventing moisture and contaminants from reaching the termination point. Designed for professional industrial applications, its threaded interface allows for straightforward installation while maintaining a tight, high-integrity seal.

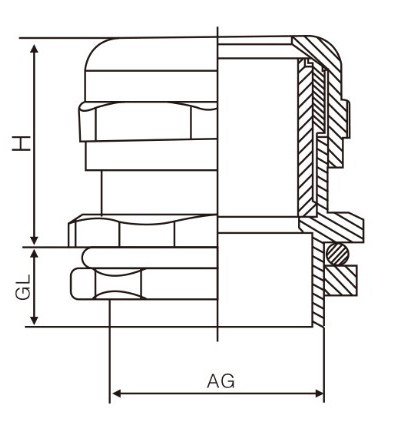

Technical Dimensions
Thread and Compatibility Specifications
| Metric | PG | NPT | G | Cable Range (mm) | Thread Length (mm) | Wrench Size (mm) |
|---|---|---|---|---|---|---|
| M12×1.5 | PG7 | NPT1/4 | G1/4 | 6.5-3 | 7 | 14 |
| M14×1.5 | - | - | - | 8-4 | 7 | 18 |
| M16×1.5 | PG9 | NPT3/8 | G3/8 | 8-4 | 8 | 18 |
| M18×1.5 | PG11 | - | - | 10-5 | 8 | 20 |
| M20×1.5 | PG13.5 | NPT1/2 | G1/2 | 12-6 | 8 | 22 |
| M22×1.5 | PG16 | - | - | 14-10 | 8 | 24 |
| M24×1.5 | - | - | - | 14-10 | 9 | 27 |
| M25×1.5 | PG19 | - | - | 14-10 | 9 | 27 |
| M25×1.5 | - | - | - | 18-13 | 9 | 30 |
| M27×1.5 | - | - | - | 18-13 | 9 | 30 |
| M28×1.5 | PG21 | NPT3/4 | G3/4 | 18-13 | 9 | 30 |
| M30×1.5 | - | - | - | 18-13 | 9 | 32 |
| M32×1.5 | PG25 | - | - | 22-15 | 10 | 35 |
Features
- Key Features
- WaterproofDouble Locked Metal Cable CompatibleThreaded InstallationMechanical StrengthIndustrial Grade
