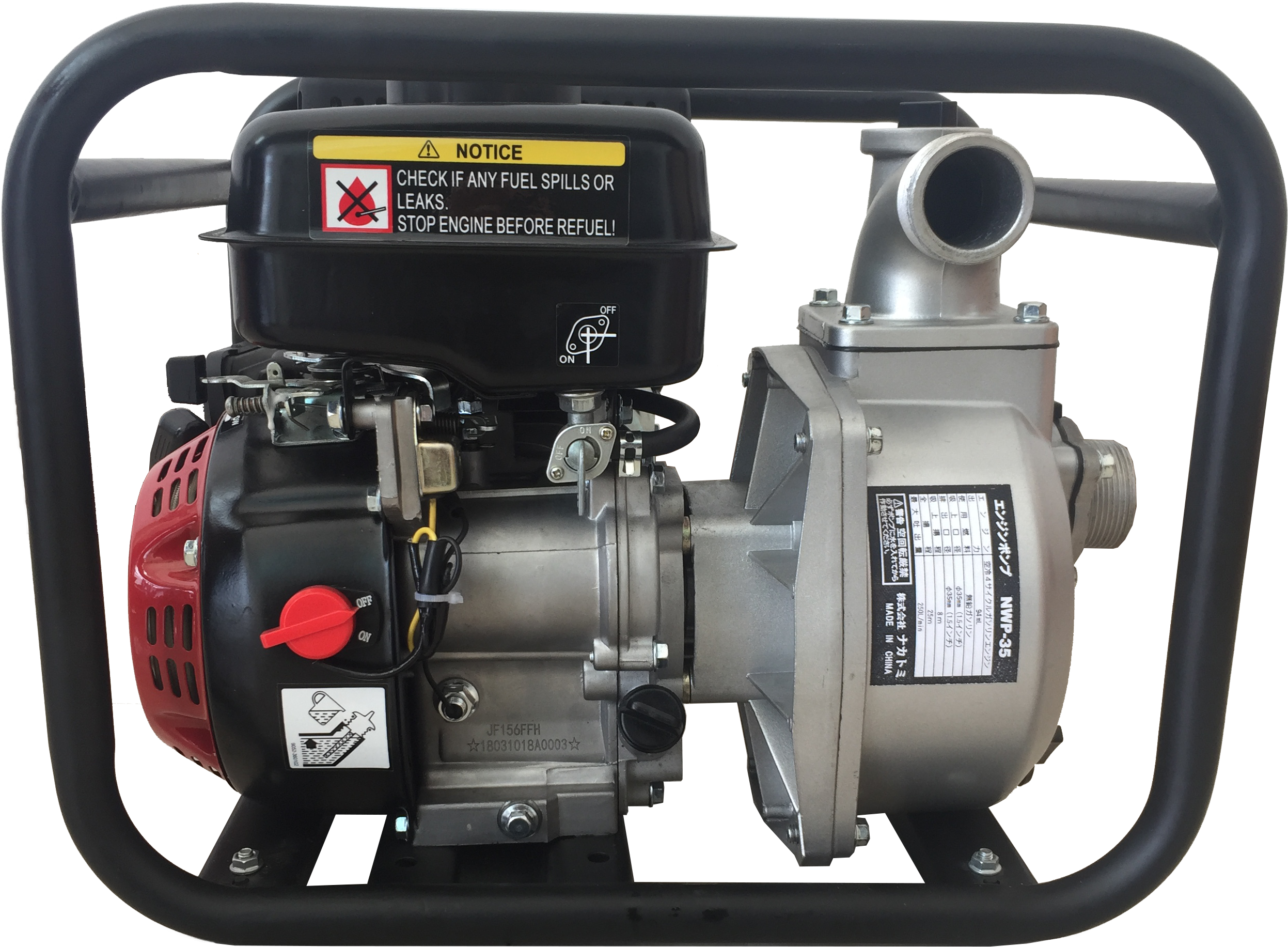

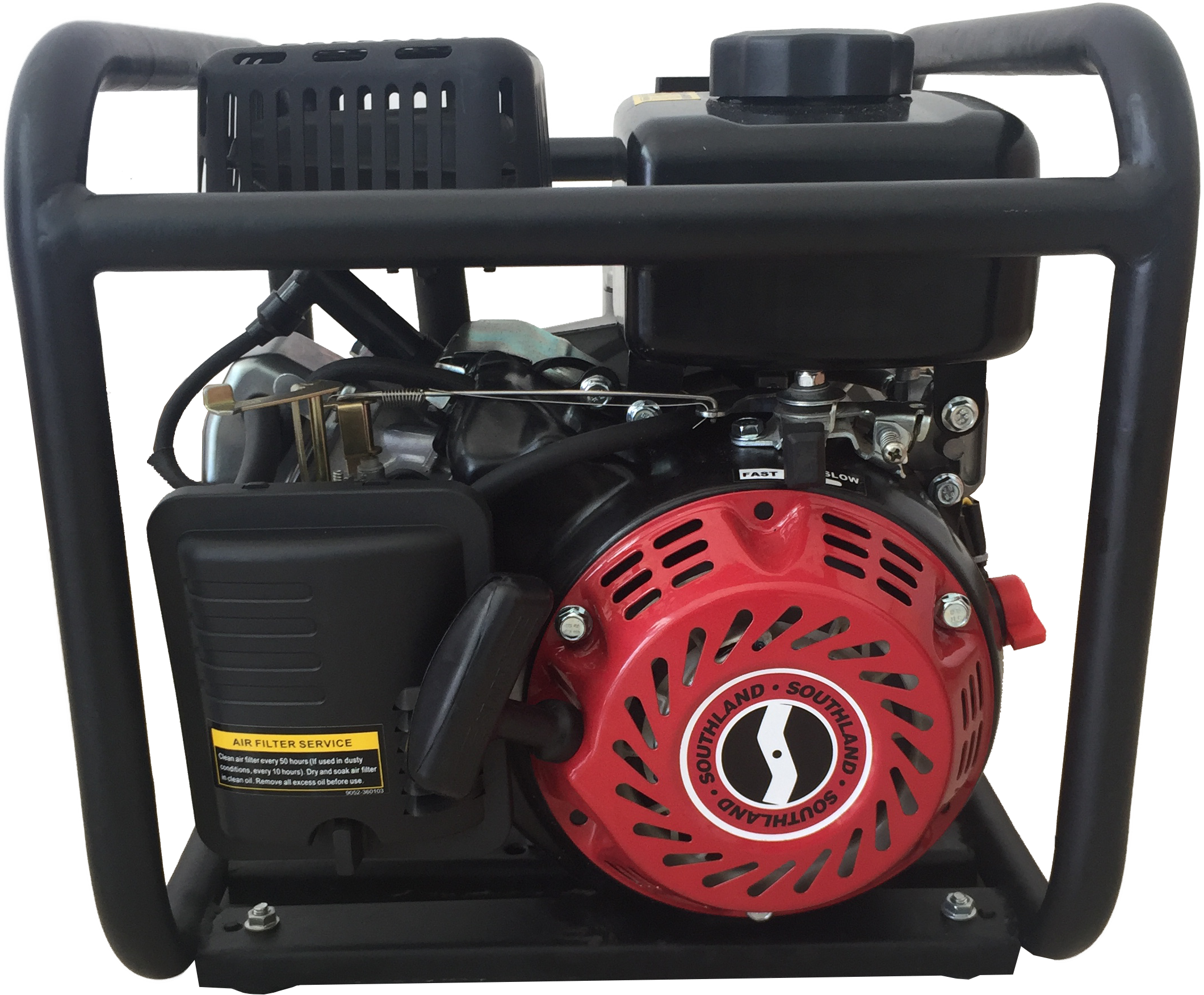

Water Transfer Pump
This water pump is designed for efficient water transfer in various settings. It features a durable frame, a reliable engine, and safety features for optimal performance and ease of use.
Technical Specifications
Product Overview
High-Performance Water Transfer Solution
This portable water transfer pump is engineered for durability and reliable performance in demanding environments. Featuring a powerful 1 HP air-cooled engine and a protected steel frame, it is designed for rapid irrigation and water removal. With a lightweight aluminum pump body and cast iron internal components, it ensures long-term operational efficiency for professional applications.
Engine Performance
Engine Specifications
1 HP
Power Output
3,600 rpm
Engine Speed
63 cc
Displacement
2.5 hours
Runtime per Tank
Technical Specifications
Core Performance
| Parameter | Value |
|---|---|
| Maximum Flux | 10 m³/h |
| Maximum Lift | 12 m |
| Noise Level | 65 dB |
| Cooling System | Air-cooled |
Physical Dimensions
- Inlet/Outlet Port: 40mm (1.5 inch)
- Net Weight: 15 kg
- Gross Weight: 16 kg
- Packing Size: 480 x 328 x 350 mm
Logistics
Container Load Capacity
| Container Type | Quantity (pcs) |
|---|---|
| 20FT | 462 |
| 40FT | 1,008 |
| 40HQ | 1,176 |
