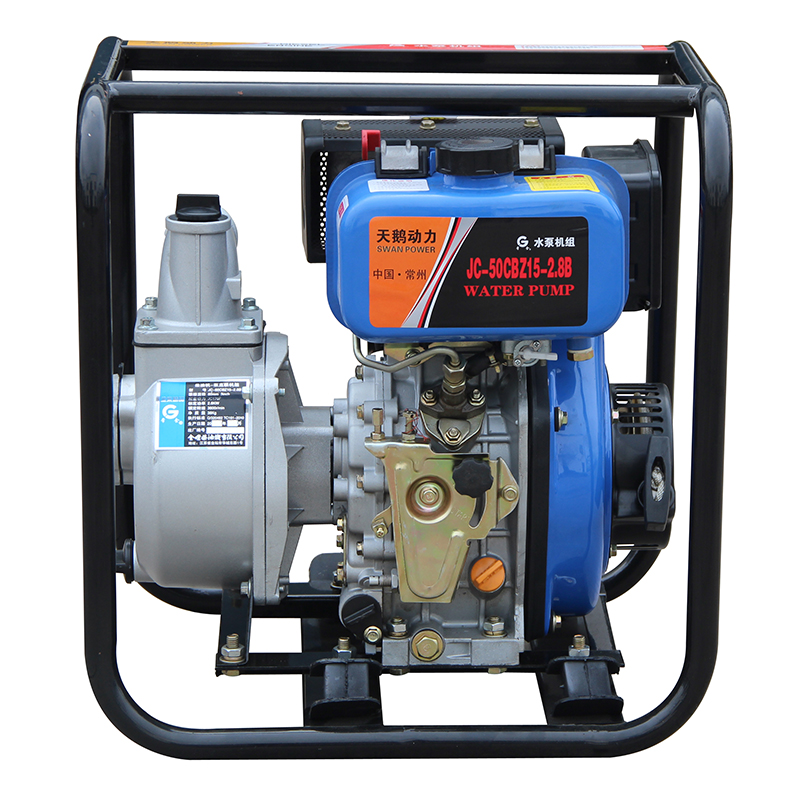

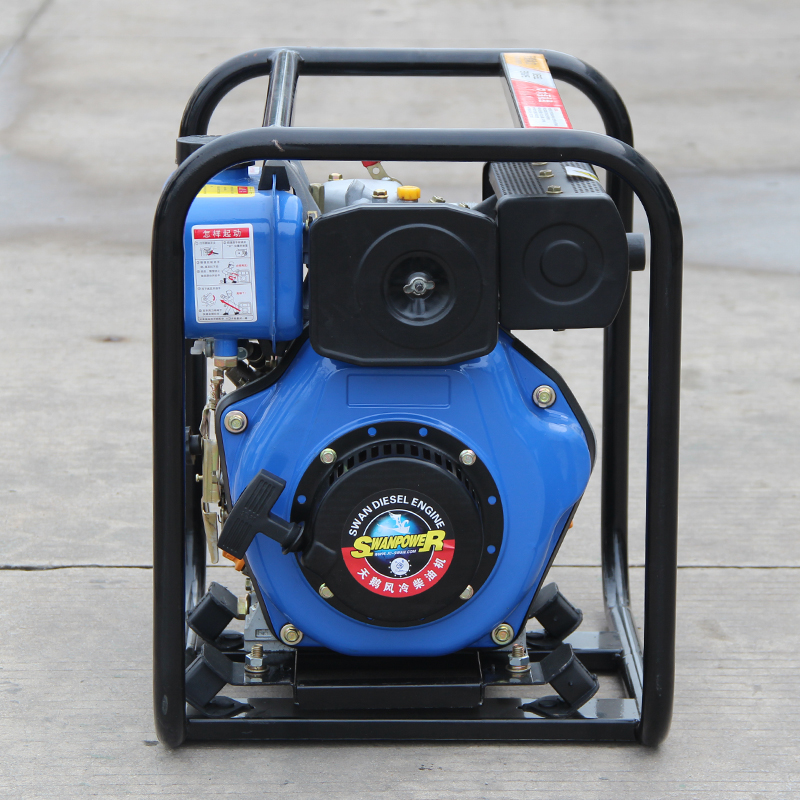

Water Pump Set with Diesel Engine
This water pump set is engineered for efficient water transfer in demanding environments. Featuring a durable diesel engine and protective frame, it is ideal for irrigation, drainage, and general water pumping applications.
Technical Specifications
Overview
Robust Diesel Water Pump Series
This series of diesel-powered water pumps is engineered for reliable performance in agricultural, construction, and emergency water supply applications. Featuring air-cooled diesel engines and self-priming pump technology, these units are designed for efficient water transfer and drainage. The compact, frame-mounted design ensures durability and portability, making them suitable for demanding environments where consistent water movement is required.
Performance Specifications
Model Specifications
| Model | Suction/Discharge (mm) | Head (m) | Capacity (m3/h) | Output (kW) |
|---|---|---|---|---|
| JC-50CBZ15-2.8B | 50/50 | 15 | 22 | 2.8 |
| JC-80CBZ15-3.5B | 80/80 | 15 | 40 | 3.5 |
| JC-80CBZ15-3.7B | 80/80 | 15 | 40 | 3.7 |
| JC-80CBZ15-4.0B(E) | 80/80 | 15 | 40 | 4 |
Engine Details
- Cooling System
- Air cooling
- Combustion Chamber
- Direct injection
- Rotation Direction
- Counterclockwise (from flywheel end)
- Starting System
- Recoil handElectric start
- Rated Speed
- 3600 r/min
Physical Characteristics
Dry Weight Range
38 kg
Minimum Weight
46 kg
Maximum Weight
