Technical Specifications
Product Overview

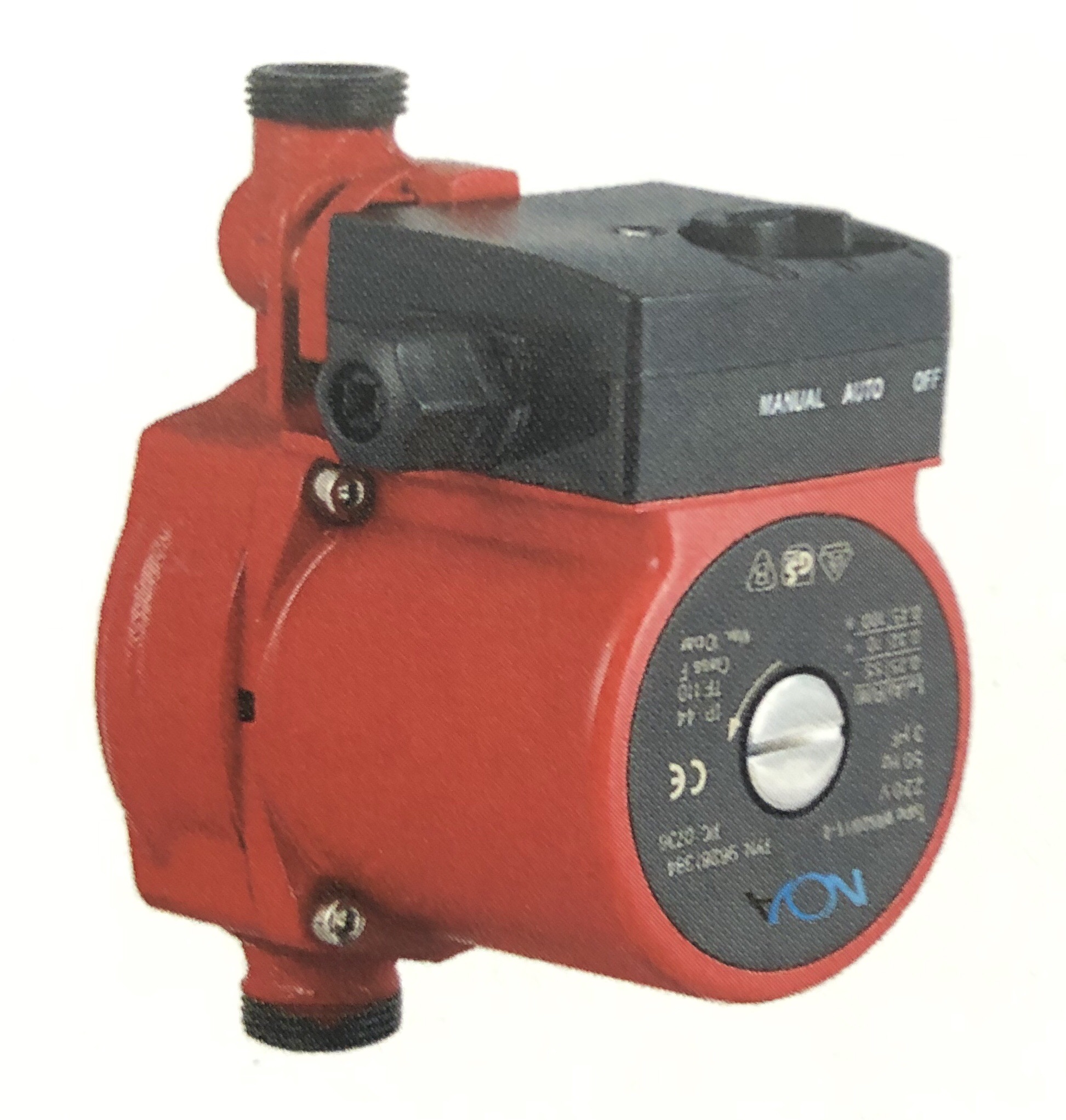

High-Efficiency Water Pressure Booster Pump
This versatile booster pump is engineered for reliable performance in HVAC, domestic hot water circulation, and central heating systems. Featuring a durable construction with a cast iron or brass pump body and stainless steel or ceramic shaft, it ensures longevity and consistent operation. With manual 3-speed control and compatibility with water-glycol mixtures, this pump provides flexible pressure boosting solutions for residential and light commercial applications.
Technical Specifications
Power Requirements
110 V
Voltage
220 V
Voltage
50 Hz
Frequency
60 Hz
Frequency
- Speed Range
- 2800 r.p.m.
- Fluid Temperature Range
- -10°C to +110°C
- Max Working Pressure
- 10 bar
- Max Ambient Temperature
- 40 °C
Construction & Protection
Protection Class
IP44Insulation Class H
- Construction Materials
- Cast IronBrassGF-PP ImpellerStainless Steel ShaftCeramic Shaft
Applications
Primary Applications
- HVAC and pressure boosting
- Central and district heating systems
- Domestic hot water circulation
- Automatic pressure boosting
- Floor heating systems
- Solar pumping systems
Model Comparison
Performance Models
| Model | Power (W) | Head (m) | Capacity (L/min) | Weight (kg) |
|---|---|---|---|---|
| SPS15-90Z | 100 | 9 | 23 | 2.8 |
| SPS15-110Z | 120 | 11 | 26 | 3.2 |
| SPS15-130Z | 248 | 13 | 52 | 5 |
