Water Heater Control Circuit Board
This is a control circuit board for water heaters. It can come with features such as a touch screen, digital display, remote control, timer, and heating/insulation indicator.
Technical Specifications
Product Overview
Water Heater Control Systems
These professional-grade control circuit boards and digital display panels are designed for precise water heater management. The product line offers various configurations ranging from simple mechanical digital displays to advanced remote-controlled touch-panel systems. With integrated safety features and versatile temperature settings, these components ensure reliable operation and user-friendly control for diverse water heating applications.
Technical Specifications
Temperature Range
0 °C
Min Temp
85 °C
Max Temp
- Power Modes
- Low PowerMedium PowerHigh Power
Model Comparison
Available Models

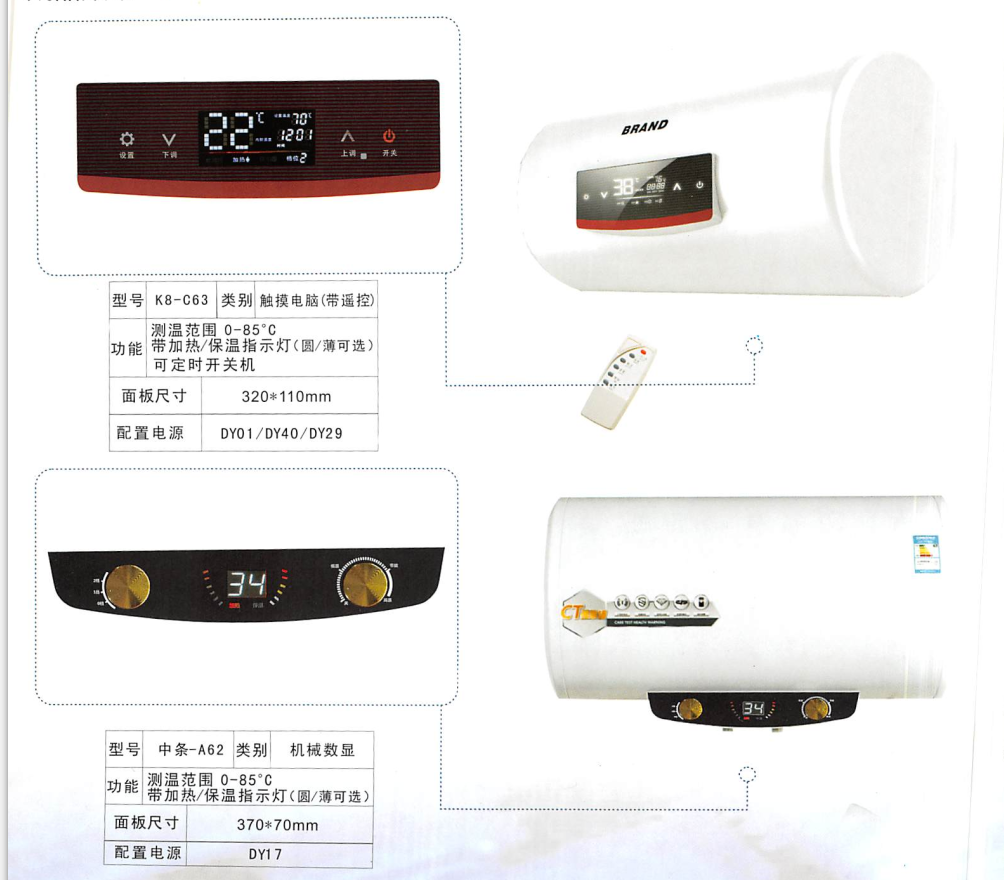

| Model | Type | Dimensions |
|---|---|---|
| K8-C63 | Touch Screen | 320x110mm |
| C7B | Remote Control | 135x52mm |
| C1 | Remote Control | 170x70mm |
| 中条-A62 | Mechanical Digital | 370x70mm |
| A9 | Universal Digital | 30x35mm |
Features
System Capabilities
- Remote control compatibility
- Timed on/off scheduling
- Heating/Insulation status indicators
- Real-time temperature display
- Three-stage power selection
