Water-Cooled Heavy-Duty Cargo Tricycle
This heavy-duty tricycle features a water-cooled engine for enhanced performance and reliability. Equipped with a hydraulic lift bed, it is designed for efficient material transport and demanding applications.
Technical Specifications
Overview
Heavy-Duty Cargo Utility

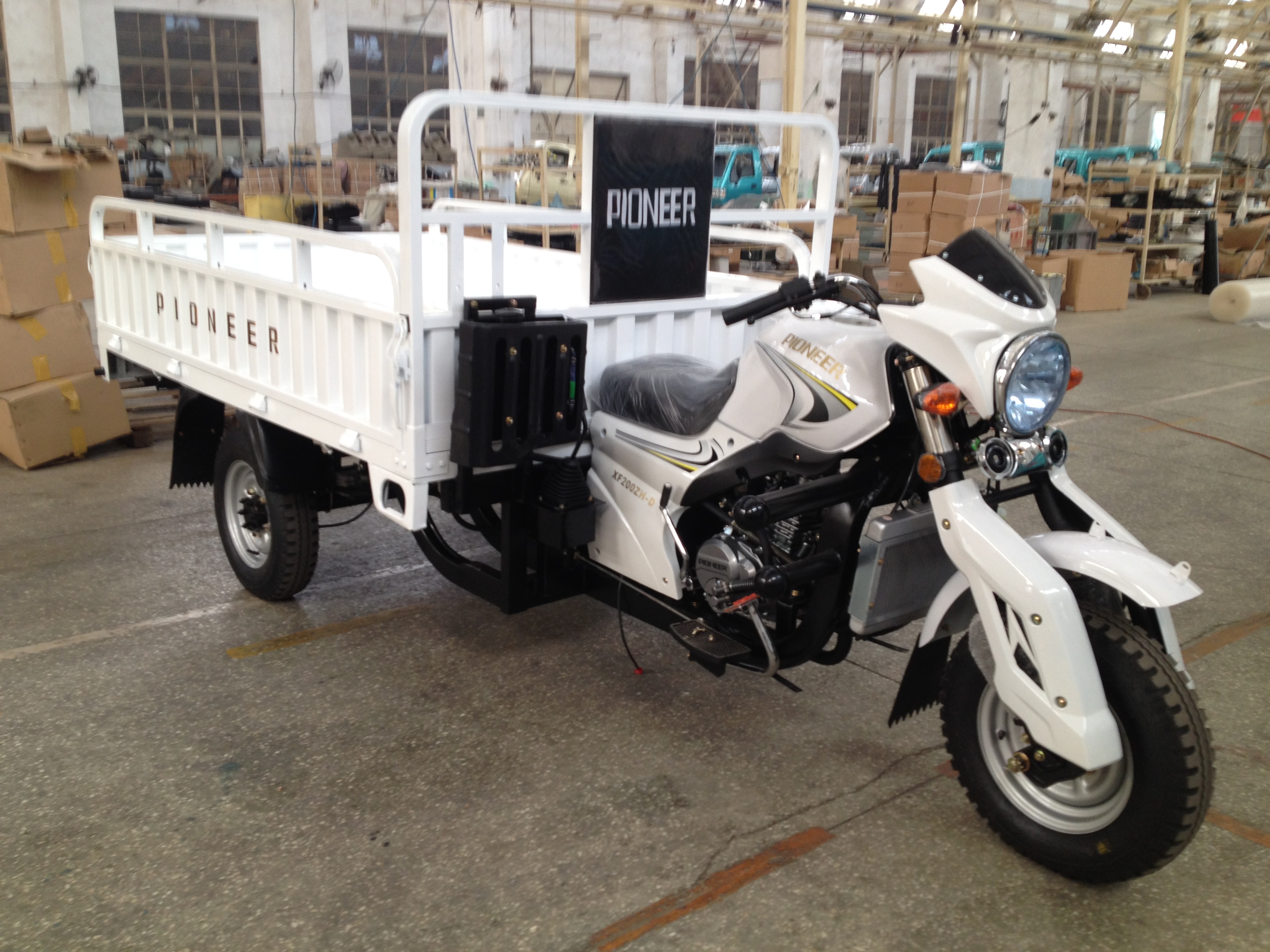

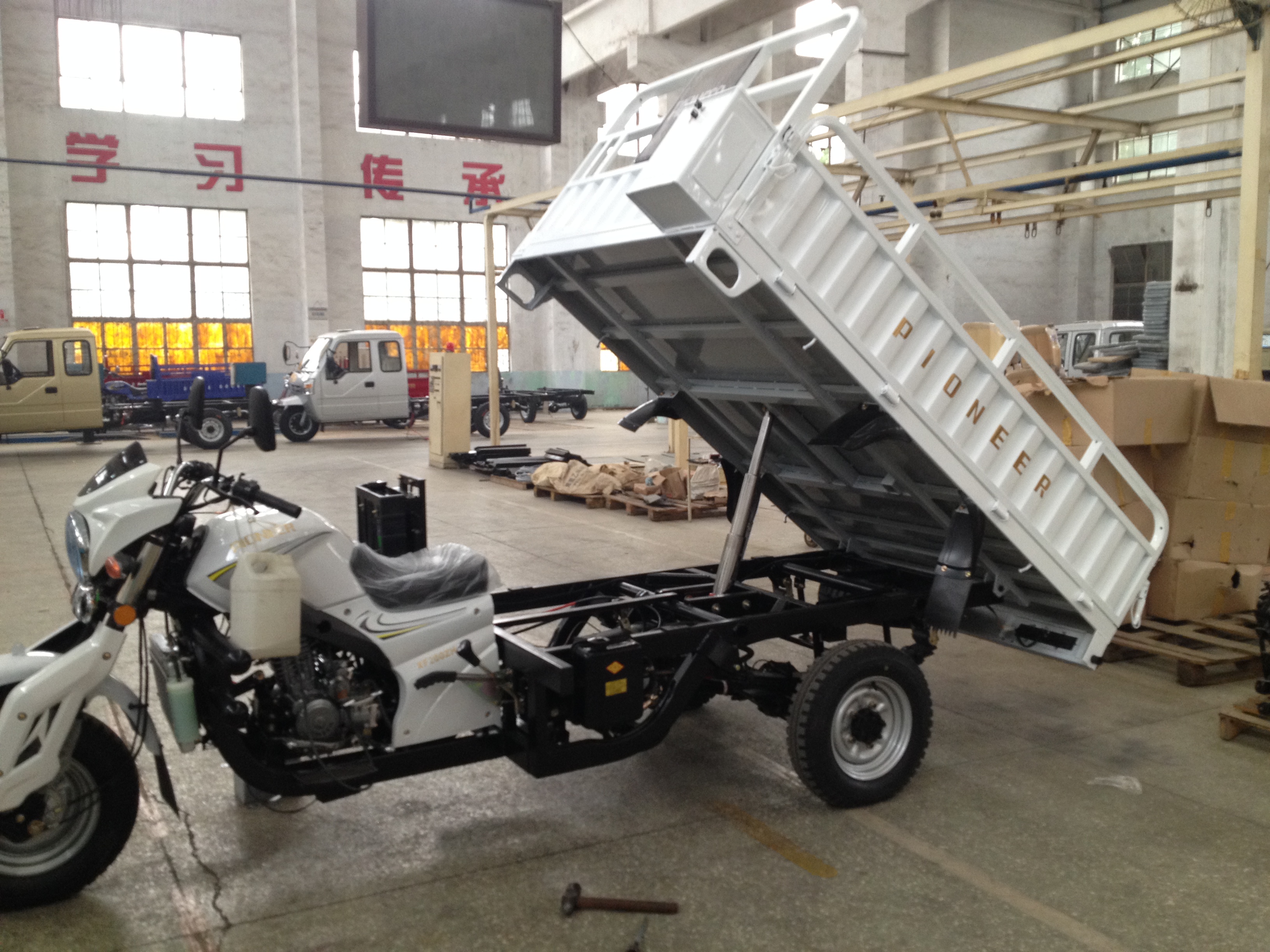

The XF150ZH-D is a robust three-wheeled cargo tricycle engineered for heavy-duty material transport and demanding utility applications. Featuring a forced water-cooled engine, this vehicle ensures consistent performance and durability during sustained operation. With a high load-bearing capacity and a hydraulic lift mechanism, it provides an efficient solution for logistics and cargo management in various industrial settings.
Engine & Performance
Maximum Speed
70 km/h
Max Speed
Engine Details
- 1-cylinder 4-stroke
- Forced water cooled
- 149ml Displacement
- CDI Ignition
Power & Torque
9 kW
Max Power
9.6 N.m
Max Torque
Dimensions & Capacity
Weight Capacity
415 kg
Net Weight
500 kg
Max Load
- Overall Dimensions (L*W*H)
- 3550*2050*1640 mm
Chassis & Components
- Tire Specifications
- 5.00-12 (Front and Rear)
- Braking System
- Front DrumRear Oil Brake
Operating Efficiency
- Economic Fuel Consumption
- 4.2 L/100Km
