Washing Machine Timer
This washing machine timer is designed to control soak, wash, and dry cycles. It has a service life of 10000 cycles and customizable installation size and shaft length.
Technical Specifications
Product Overview
High-Performance Washing Machine Timer
This professional-grade washing machine timer is engineered for precision control of soak, wash, and dry cycles. Designed to meet industrial requirements, these units offer reliable performance with a service life of 10,000 cycles. We provide customizable solutions regarding installation dimensions, shaft length, and specific program sequences to ensure seamless integration into your appliance manufacturing process.
Technical Specifications
Key Performance Metrics
10,000 cycles
Service Life
250 VAC
Max Rated Voltage
3.5 A
Max Rated Current
- Environmental Limits
- -10°C to +55°C

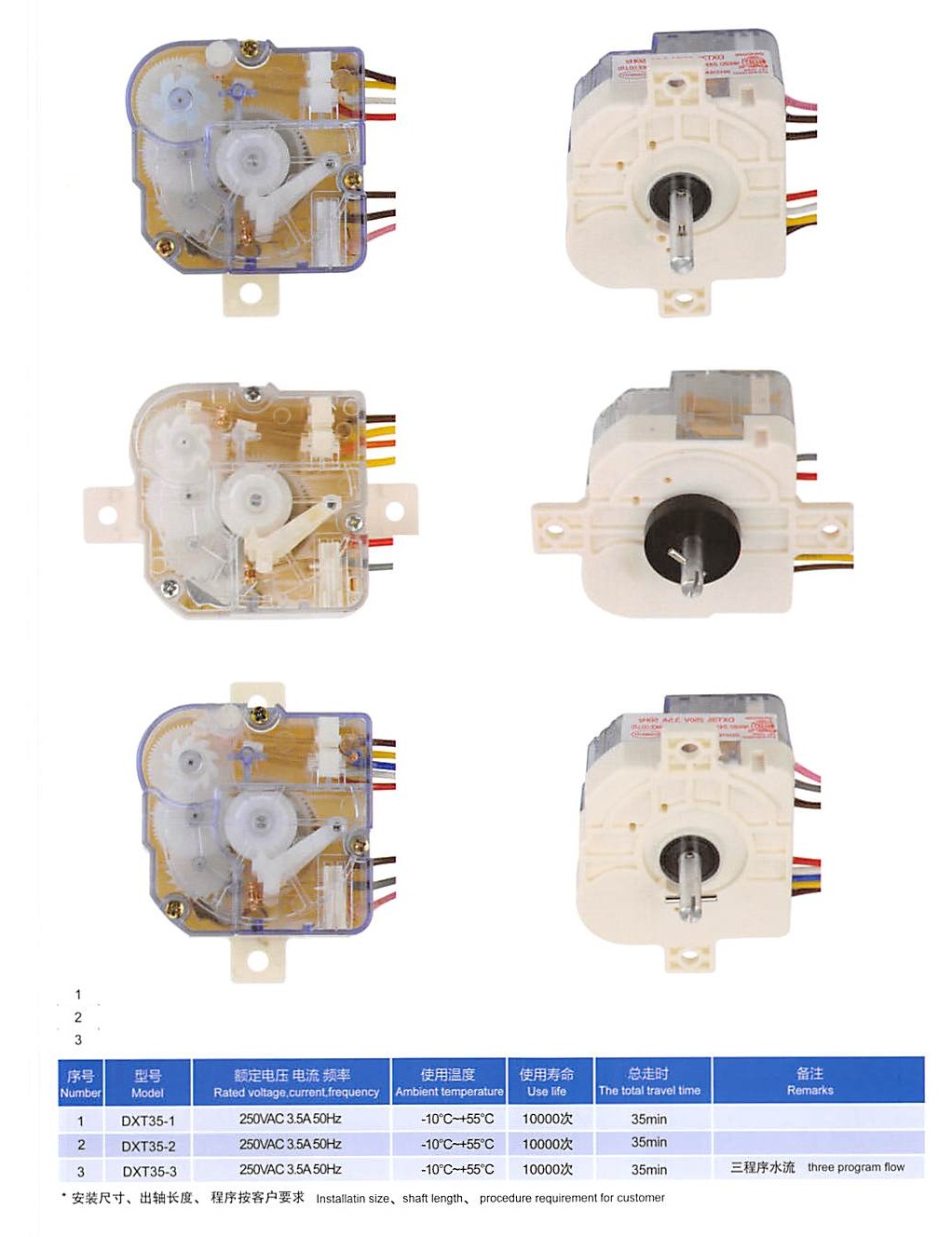

Product Variants
Comparison Table
| Model | Voltage/Current | Total Time |
|---|---|---|
| DXT35-1/2/3 | 250VAC 3.5A 50Hz | 35 min |
| DXT15 | 250VAC 3.5A 50Hz | 15±2 min |
| DXT15SF-Q | 250VAC 3A or 130VAC 6A | 15±2 min |
Customization
- Available Customizations
- Installation SizeShaft LengthProgram LogicLead Wire Specifications
